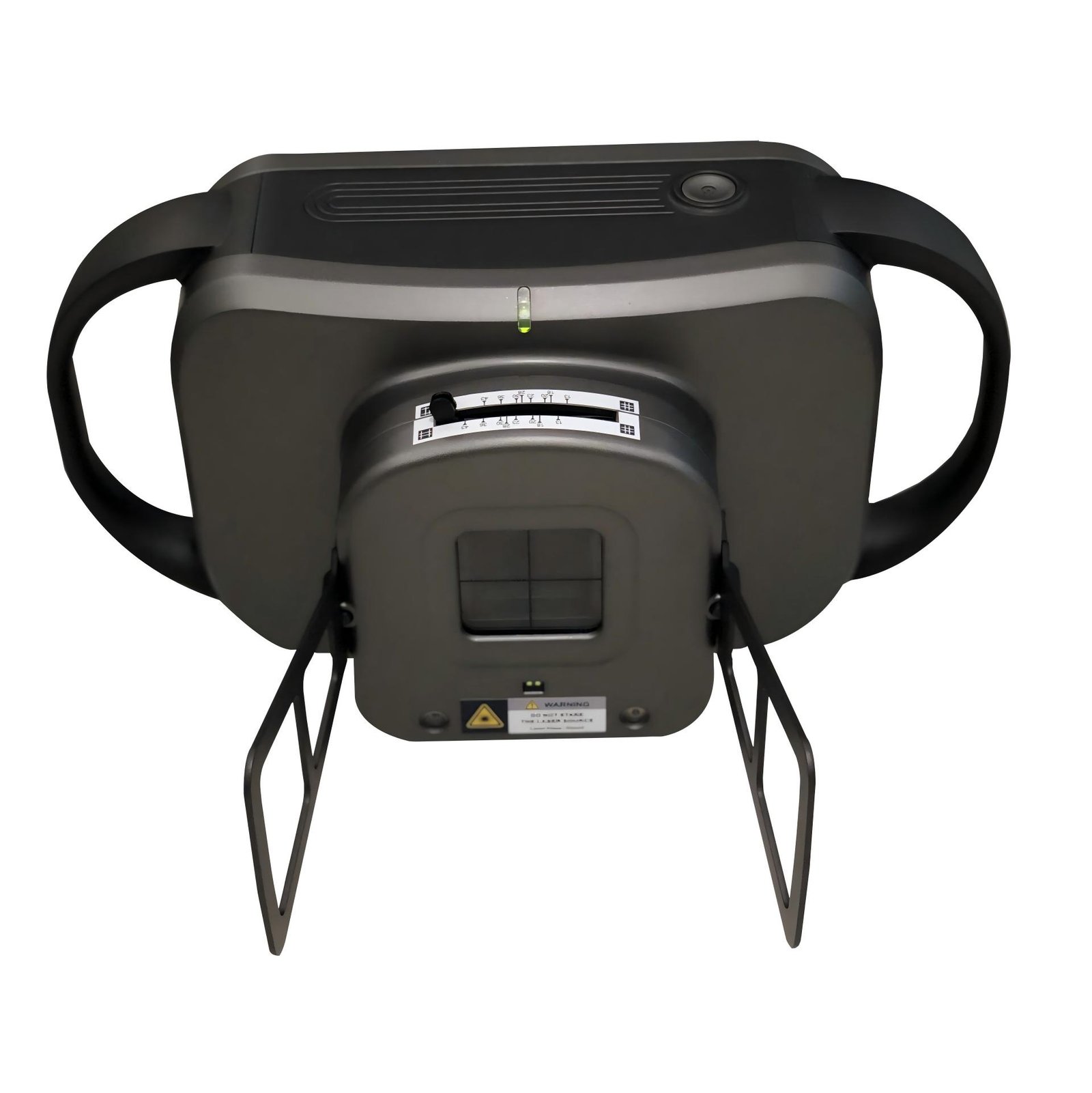

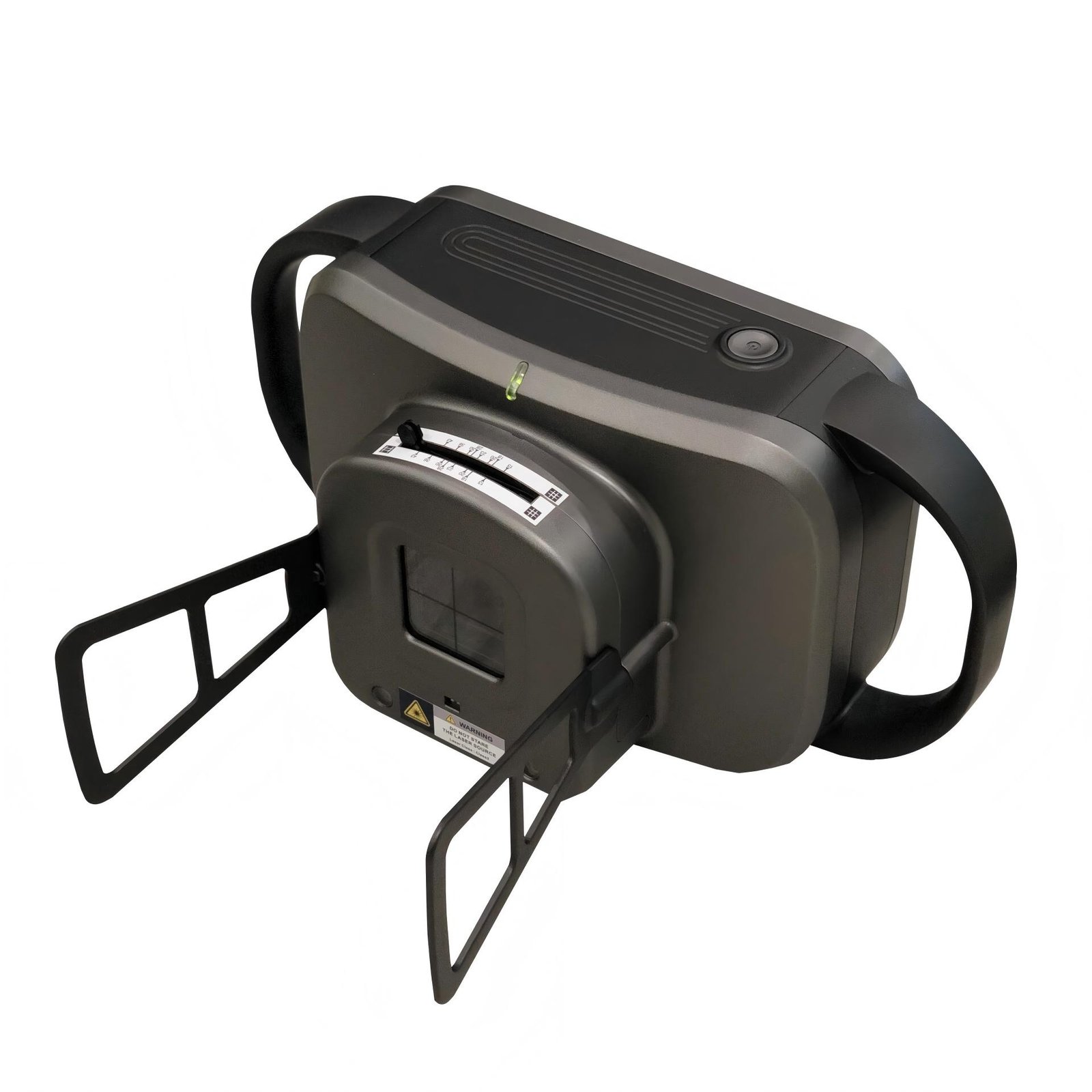

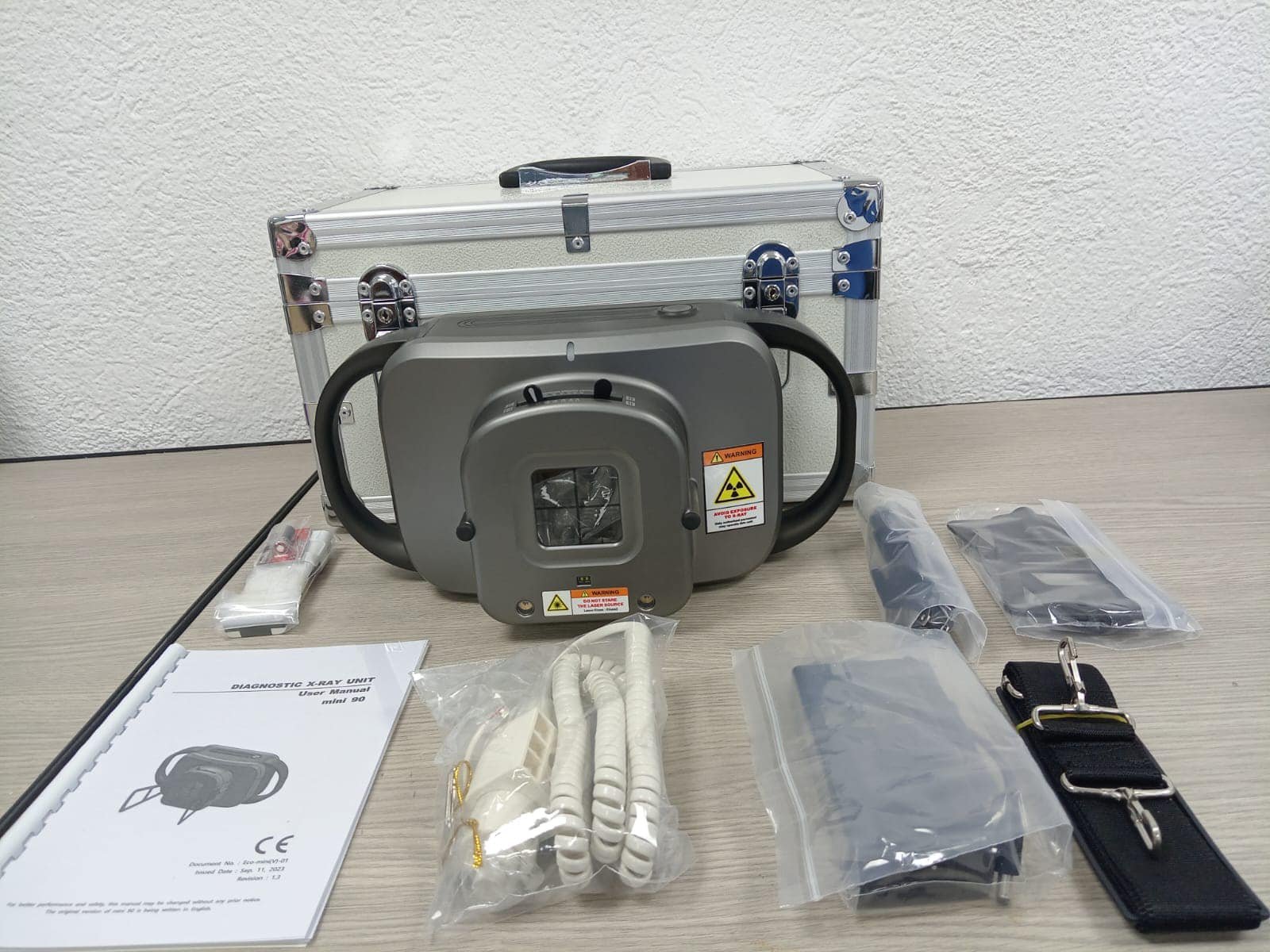

X-Ray Generator – Mini90
- Max. Output 90kV/10mA
- Voltage Range 40-90kV
- mA Range 6-10mA
- mAs Range 0.32 – 20mAs
- Focal Spot 0.8 mm
- Collimator Lamp LED
- Battery 2,200 mAh
- X- RAY Field Size 43×43 cm/100 cmSID
- Number of Exposure Approx. 150
- Charging Time Apporx. 1- 1.5 Hour
- AC Adaptor 100-240VAC,50/60Hz
Lighter than 4KG

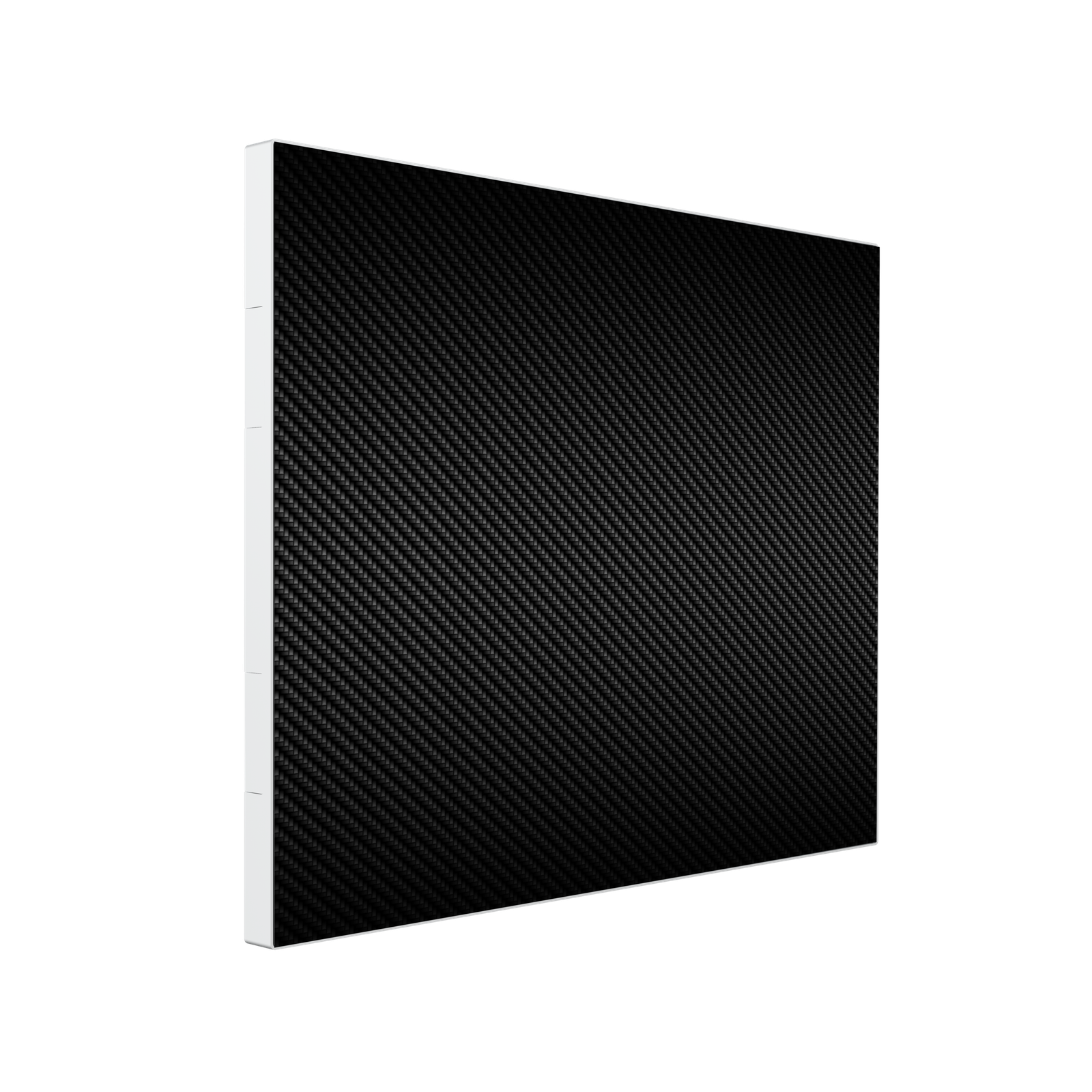

Flat Panel Detector – 3025Z
| Image Size | 250×286mm |
| Pixels Matrix | 2048×1792 |
| Pixel Pitch | 139µm |
| A/D Conversion | 16 bits |
| Spatial Resolution | 3.6 LP/mm |
| Image Acquisition Time | 1~2s |
| Battery standby time | 5H |
| Detector Weight | 1.9kg |
- Battery stands by for at least 5 hours
- Fast and reliable transmission of a full resolution image within as short as 2.5 seconds
Software – Equine Preset

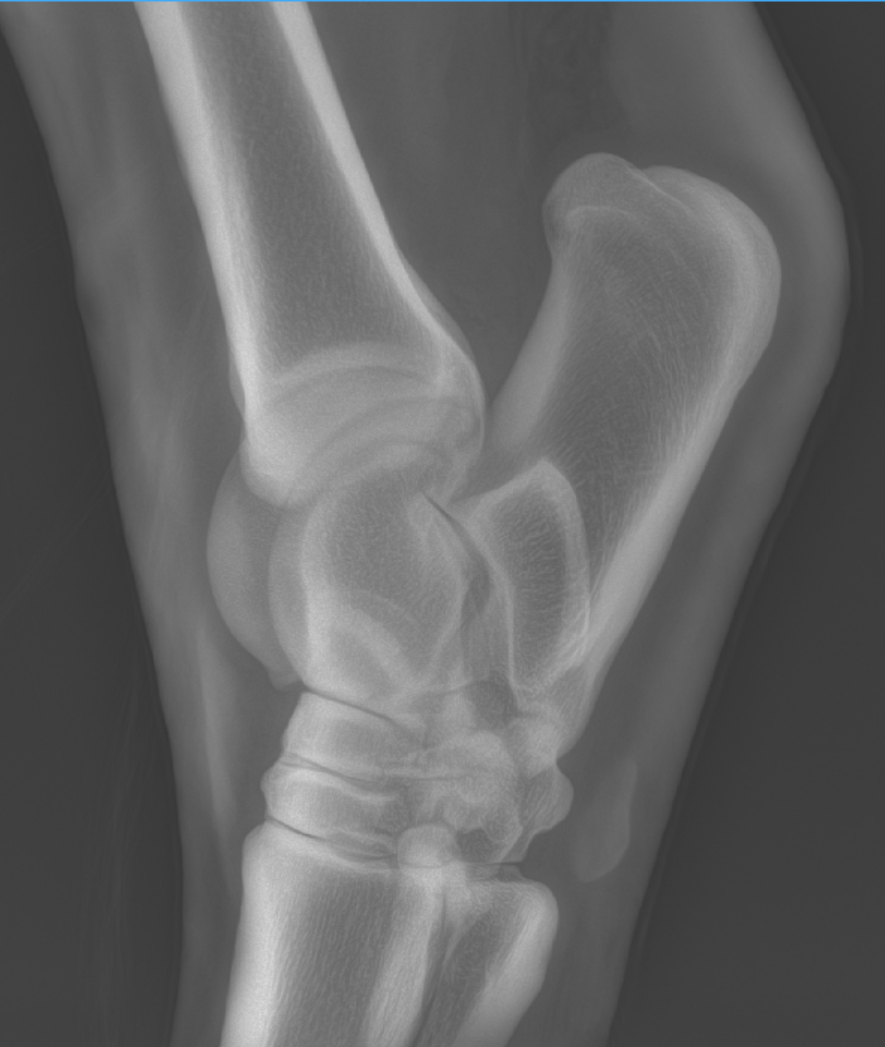

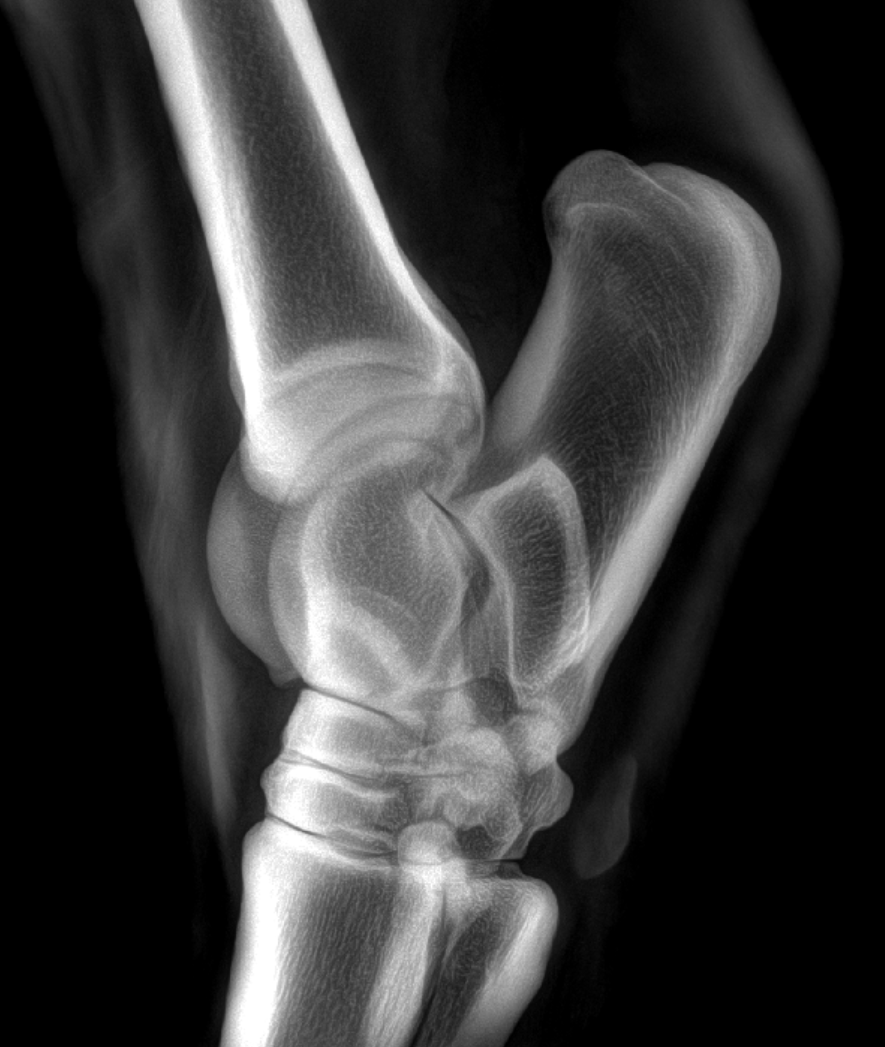

Excellent imaging
Friendly and Easy workflow

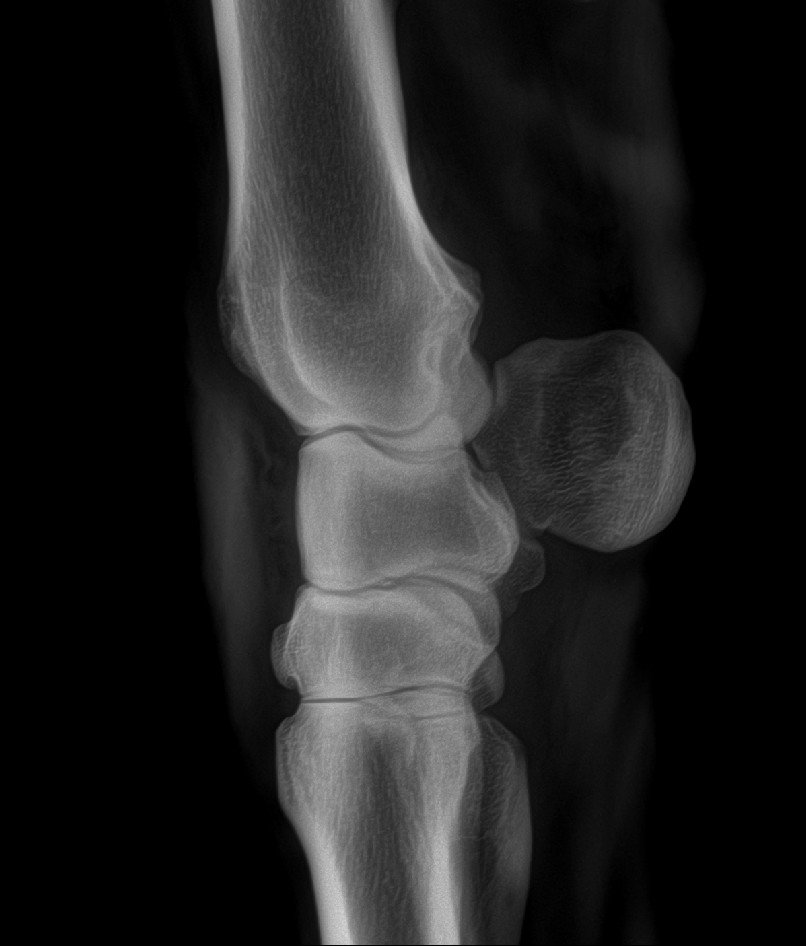

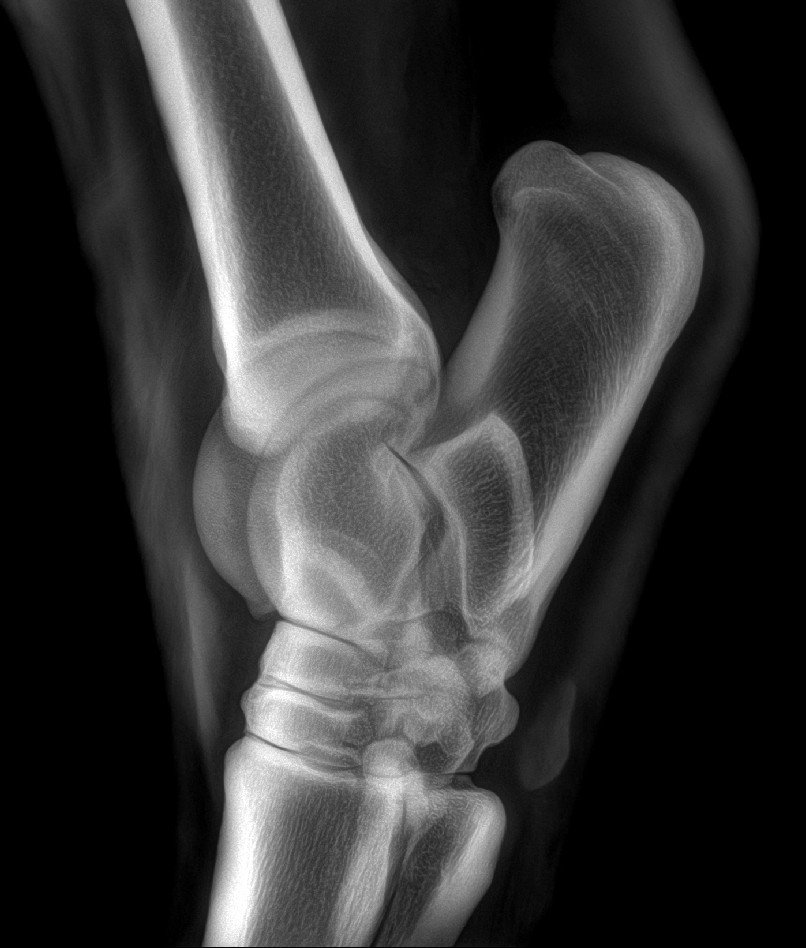

Image Gallary
