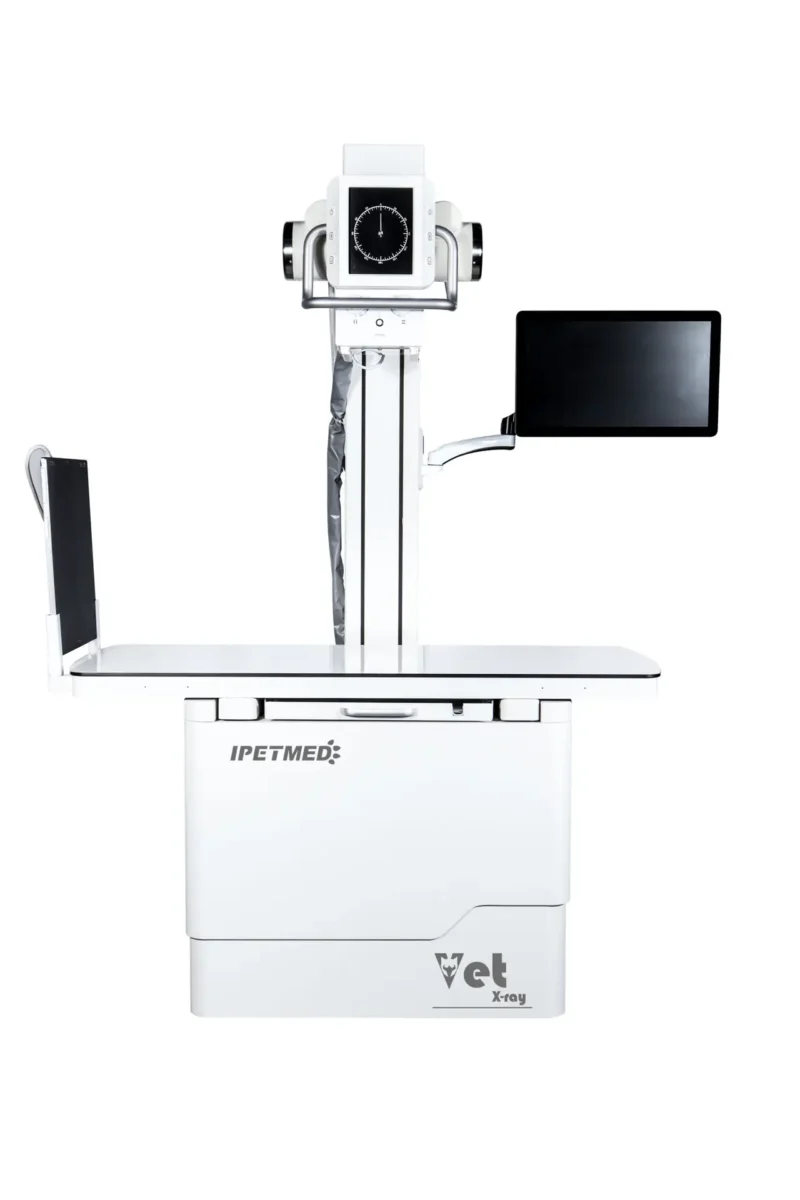

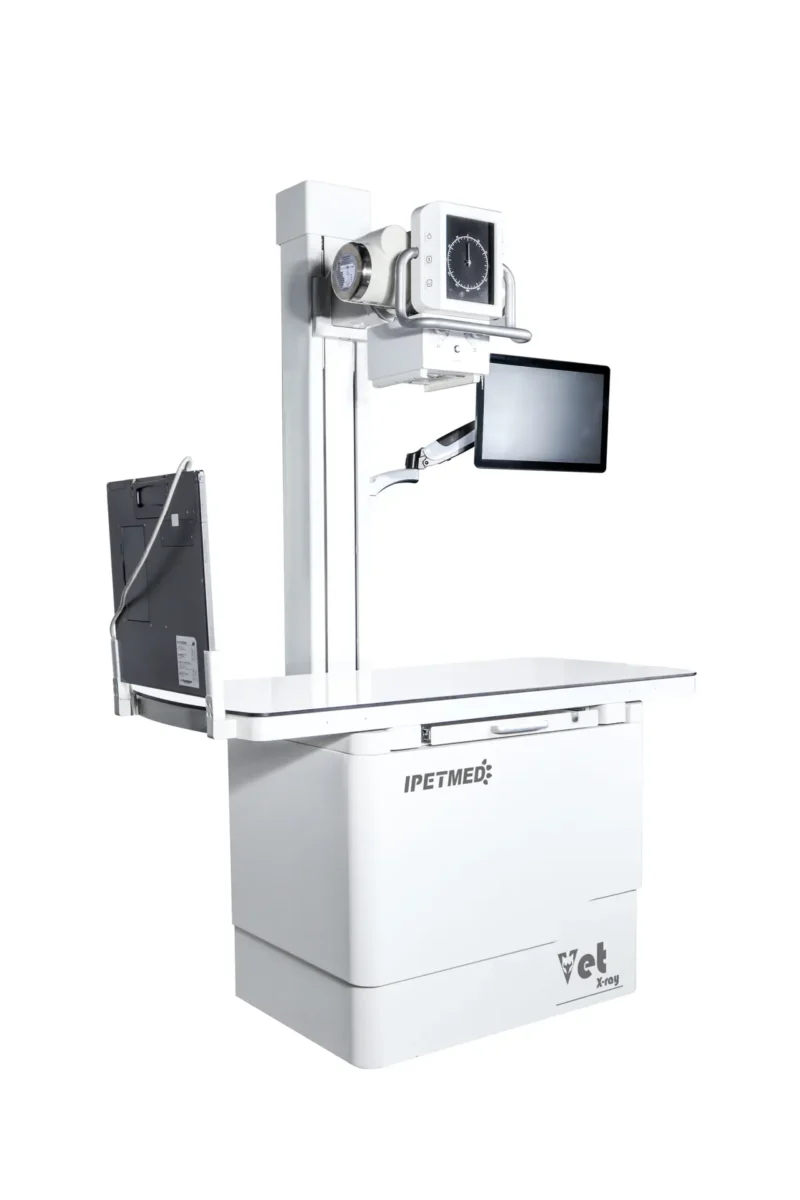

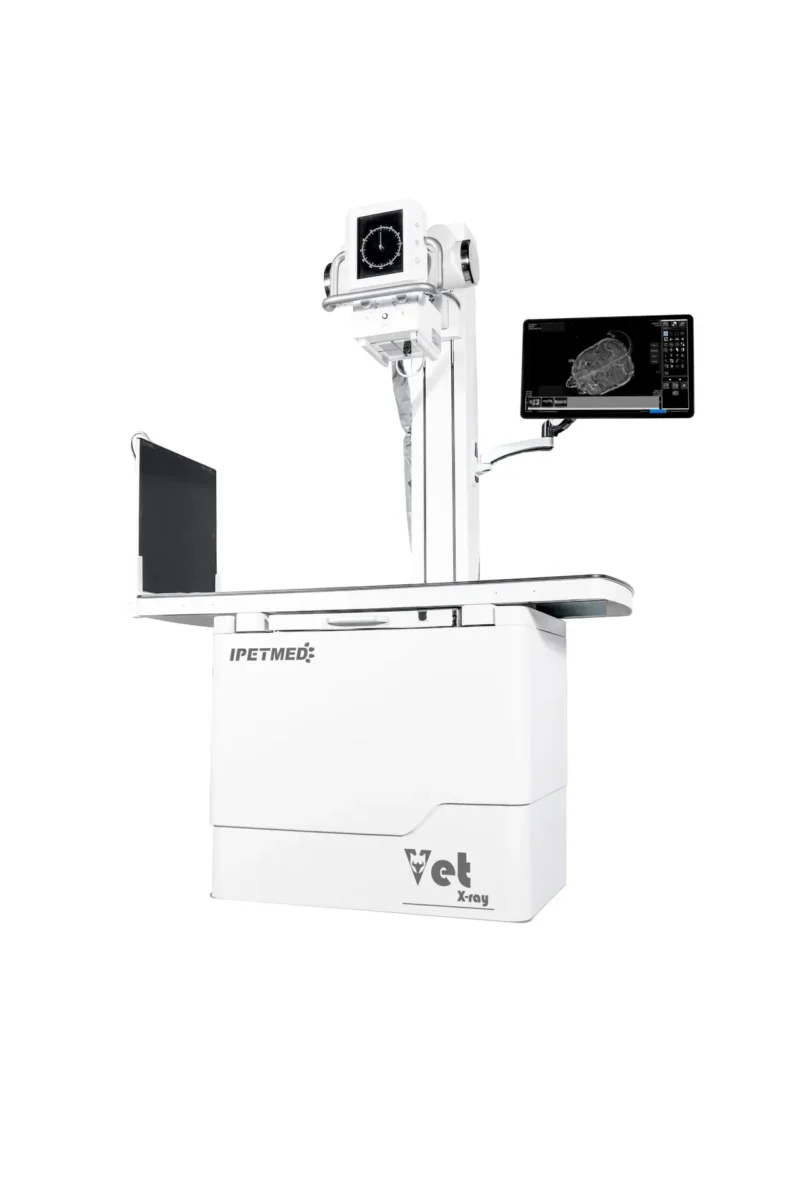

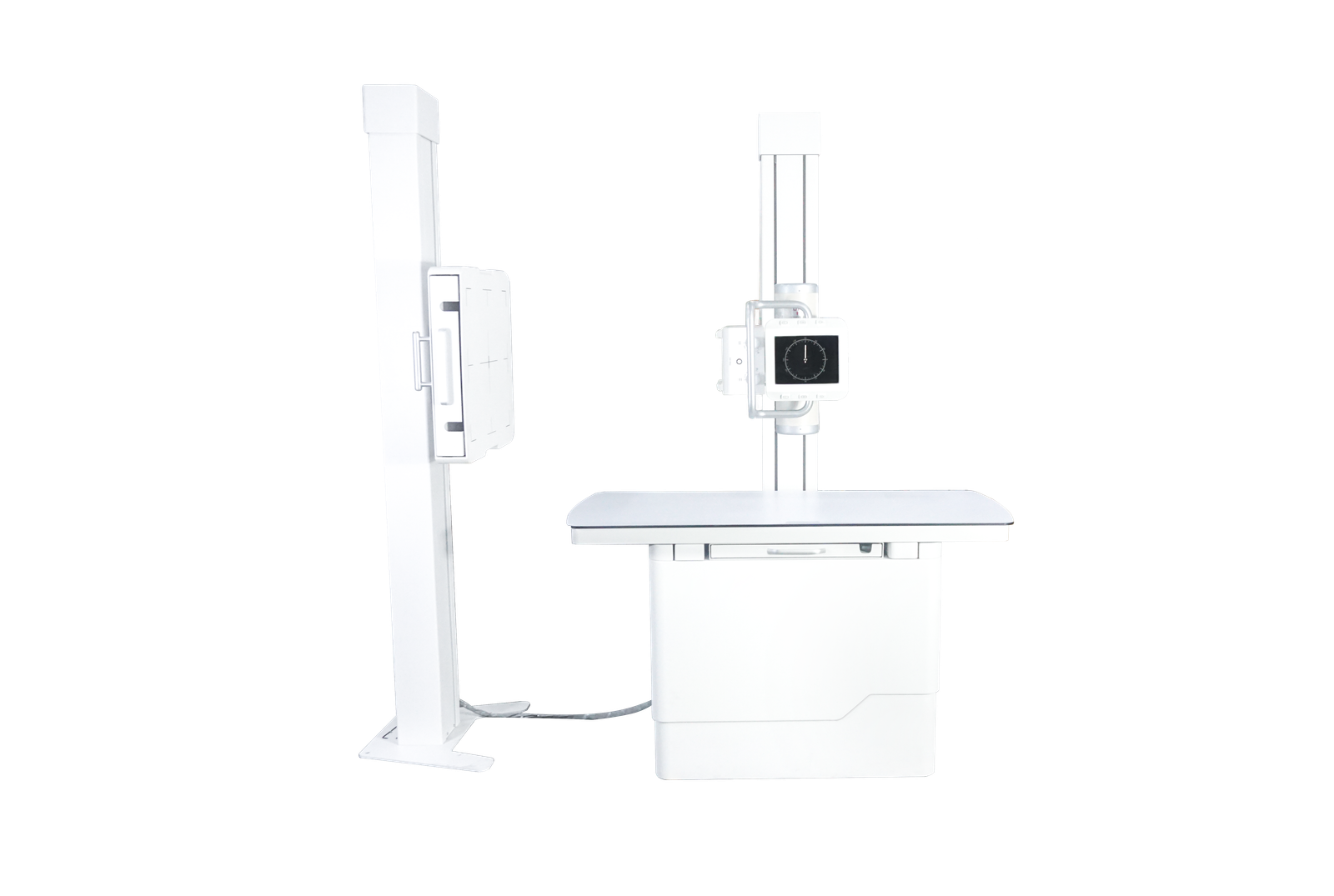

IWAMED iPet-400Pro Veterinary DR X-ray Imaging System

A New Generation of Professional Animal X-ray Imaging System (DR) Specially Designed for Veterinarians

---

Product Overview

English:
iVision-400 is a new generation of professional animal X-ray imaging system (DR), specially designed for veterinarians. It intelligently matches accurate and safe exposure parameter conditions according to the size of the pet, prevents operators from receiving more scattered radiation hazards, and quickly provides clear and accurate images. The perfect workflow and high quality make it popular among veterinarians and become the first choice for Vet DR.

Featuring industrial grade PC hardware, sealed design for dust-proof and hair-isolating, humanized intelligent design, one-key switch on/off, voice control exposure, body thickness visualization, high efficiency industrial capacitive touch screen, single-person operation at the bedside, cloud image sharing, multi-terminal diagnostic images available for both in-hospital and out-hospital mobile terminals.

---

Key Features

• ✅ Industrial Grade PC Hardware - Intel i7 CPU, 8G Memory, 128GB SSD + 1TB HDD (2TB optional)
• ✅ Sealed Dust-proof Design - Dust and hair isolation, adapts to complex environment of pet hospitals
• ✅ Humanized Intelligent Design - One-key power on/off, voice control exposure, body thickness visualization
• ✅ Industrial Capacitive Touch Screen - Efficient and sensitive, supports single-person bedside operation
• ✅ Cloud Image Function - Supports multi-terminal diagnosis on mobile terminals inside and outside the hospital
• ✅ Extra Thick Steel Body - High precision machining, medical grade spraying, anti-rust and anti-aging, easy after-sales service
• ✅ Three-door Rack Design - Modular circuit, easy maintenance
• ✅ Dual Screen Display - 21.5-inch industrial capacitive touch + 24-inch high-definition display
• ✅ Two-year Warranty - Free accessories and maintenance services provided during the warranty period
• ✅ Two Sets Radiation Protection Suit - Protect operator safety

---

Product Specifications

Parameter Category	Item	Specifications
Machine Parameters	Weight	350 KG
	Dimensions	212 cm × 140 cm × 60 cm
	Power Requirements	110/220VAC ±10%, grounding wire not less than 4 square millimeters
	Installation Requirements	Minimum door width 85cm, Minimum room size 3m × 1.5m
Flat Panel Detector	Scintillator	amorphous silicon a-Si cesium iodide CsI
	Image Size / Pixel Matrix	43×43cm (17×17in) / 3072×3072
	Pixel Pitch	139 μm
	A/D Conversion	16 bit
	Spatial Resolution	3.6 LP/mm
	X-ray Voltage Range	40-150 KV
	Minimum Detectable Dose (RQA5)	14 nGy
	Image Acquisition Time (Wired)	1 second
	Data Interface	Gigabit Ethernet (LAN Cable)
	Trigger Mode	Lossless AED/AWC, Sync Trigger
	Detector Surface Load	300 KG
	Operating Environment	5-35ºC, 10-75% RH
	Water Tightness	IP54

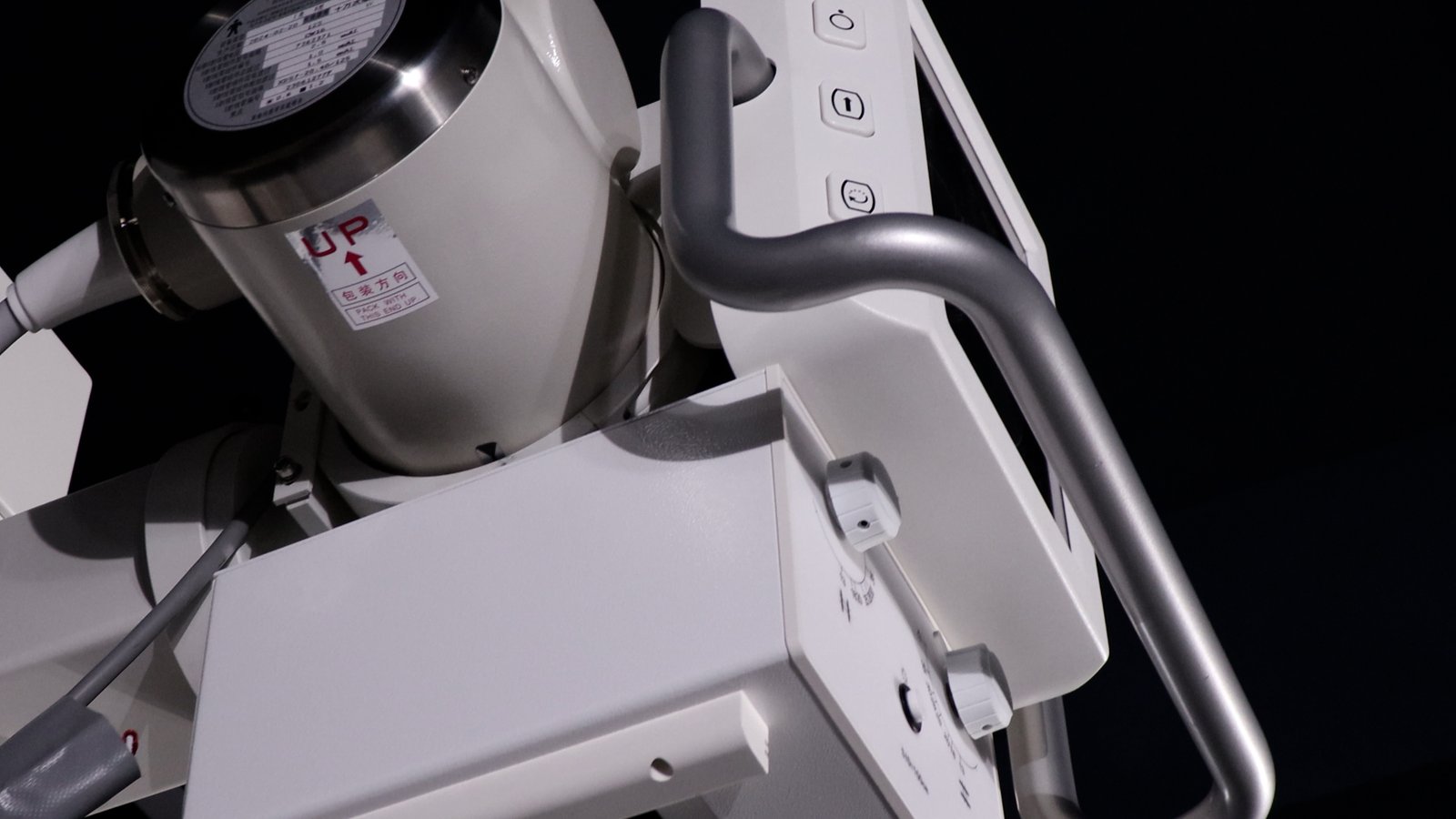

X-ray Tube	Maximum Voltage	125 KV
	Focus Size	1.0/2.0 mm
	Heat Capacity	140k HU
	Anode Input Power	small focus 21KW / large focus 42.5KW
High Voltage Generator	Input Power Voltage	110/220VAC / 10A
	Maximum Output Power	32 KW
	KV Range	40～125KV ±（1%+1KV）
	mA Range	10～400MA ±（1%+1KV）
	Exposure Time	0.001-6.3 s

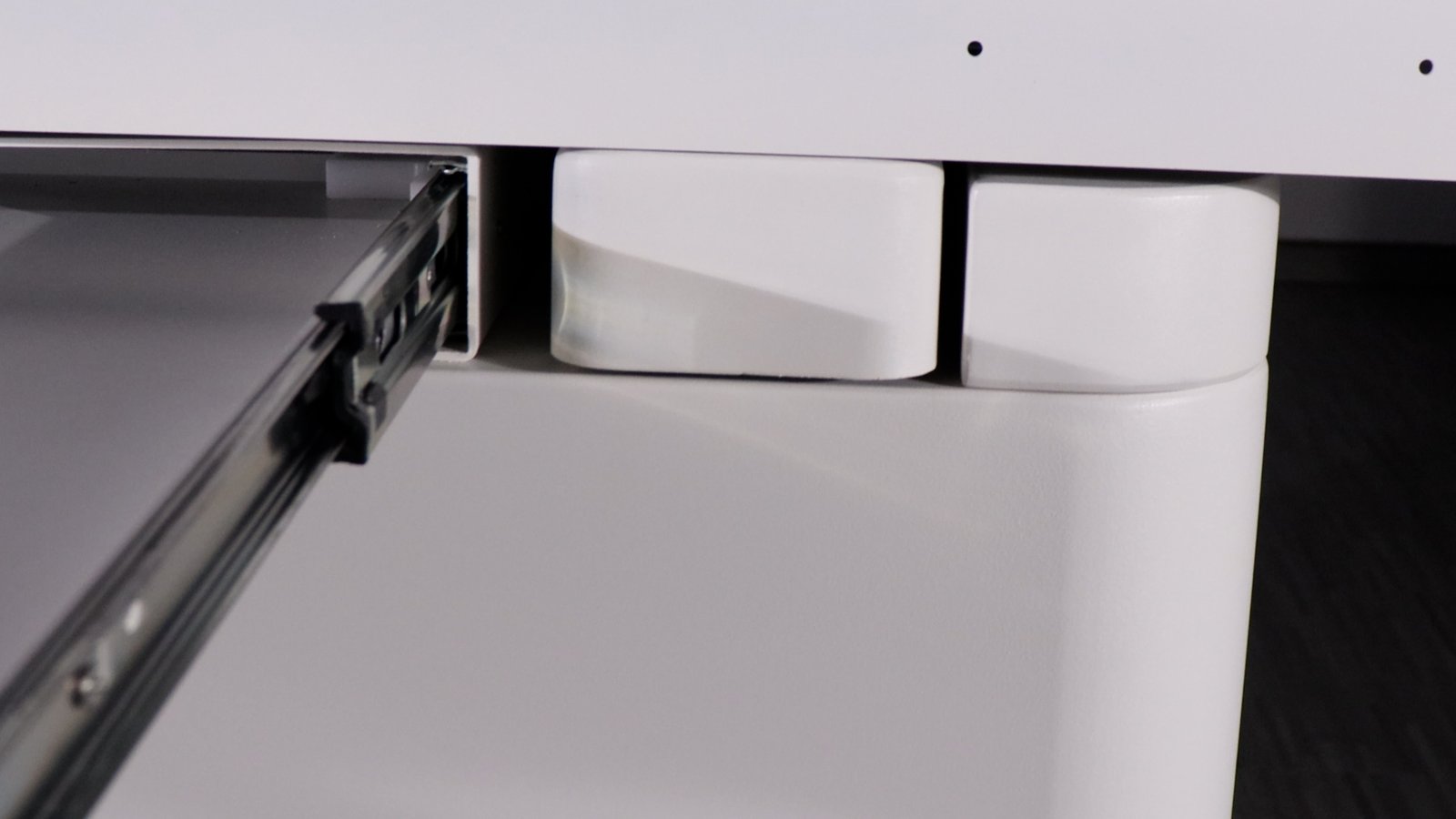

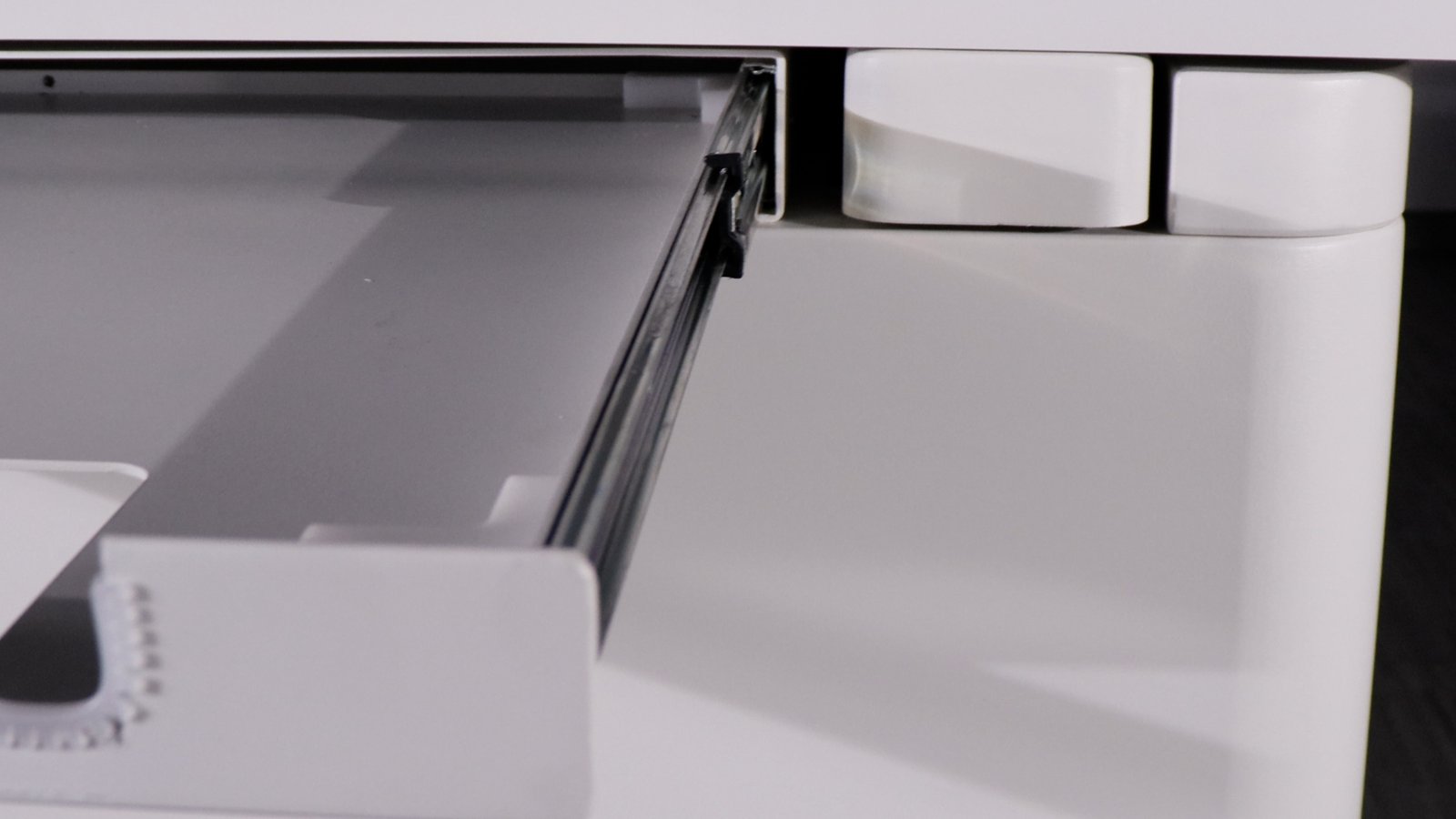

Animal X-ray Table	Table Size	1400 × 600 mm
	Table Surface Material	Phenolic board
	Horizontal Longitudinal Movement	75±10 mm
	Horizontal Lateral Movement	200±10 mm
	Load Capacity	200 KG
	Tube Movement	Up&Down / Rotate 90 degree
Accessories	Collimator	built-in LED light source (automatically off after 30 seconds)
	Exposure Controller	hand-switch, foot-switch
	Intelligent Module	voice control
	Radiation Protection Suit	2 sets
Software	Veterinary X-ray image acquisition and processing software	Included

---

Packaging Information

Packaging Method	Standard export wooden box packaging
Included Items	Main rack × 1, Flat panel detector × 1, X-ray tube × 1, High voltage generator × 1, Photography table × 1, Industrial PC control unit (with dual screen display) × 1, Accessories package × 1, Instruction manual × 1, Warranty card × 1
Free Accessories	Two sets of radiation protection suits
Warranty Period	Two-year whole machine warranty, free accessories and maintenance services provided during the warranty period
Original Brand / Original Model	iVision / iVision-400
