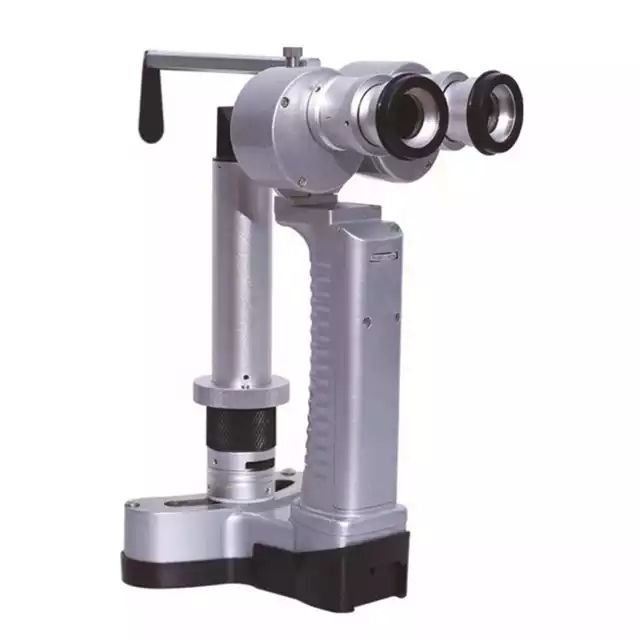

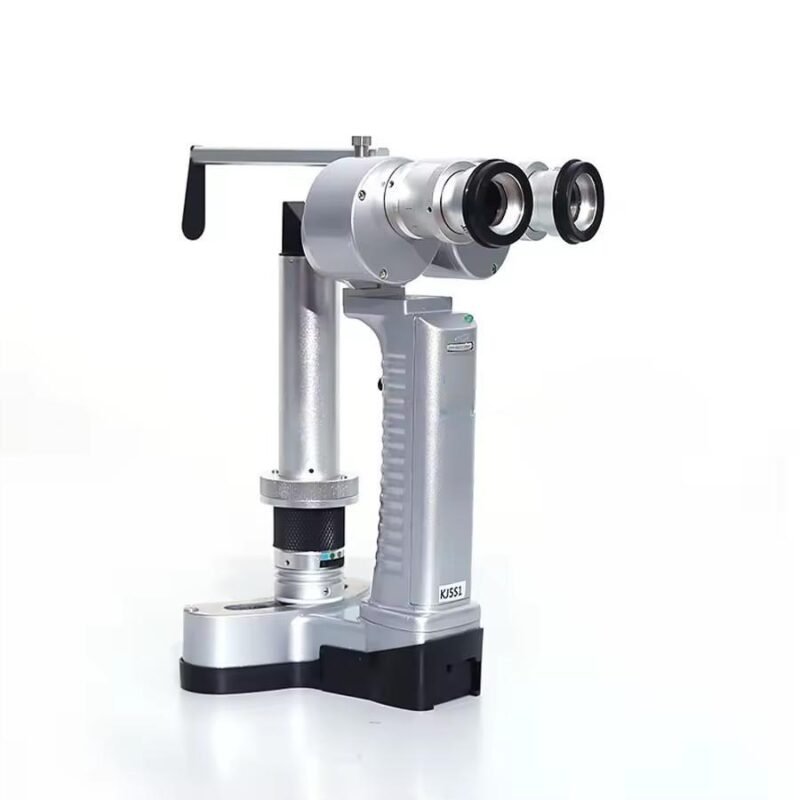

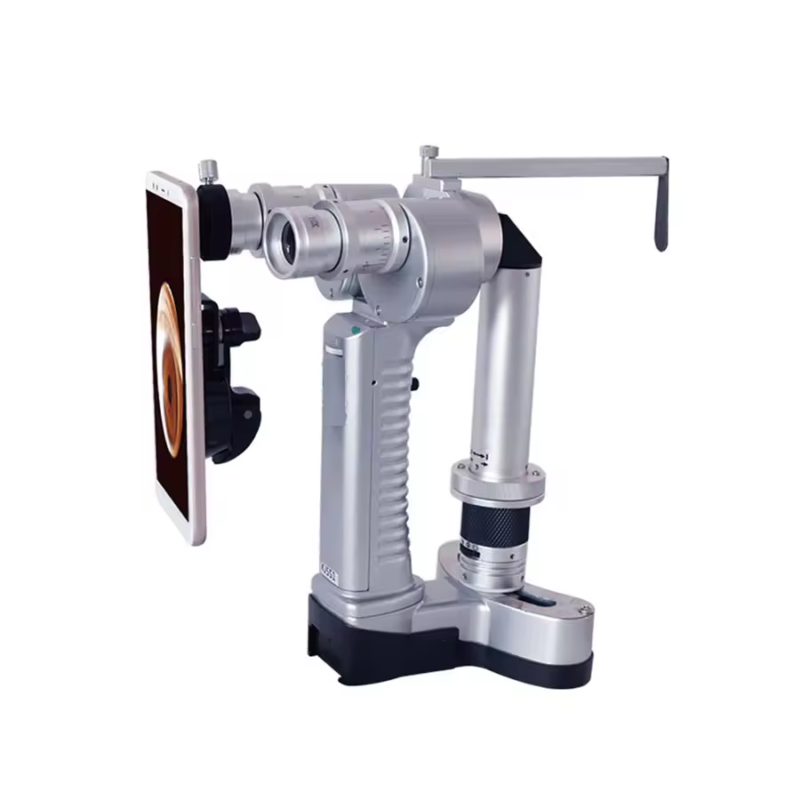

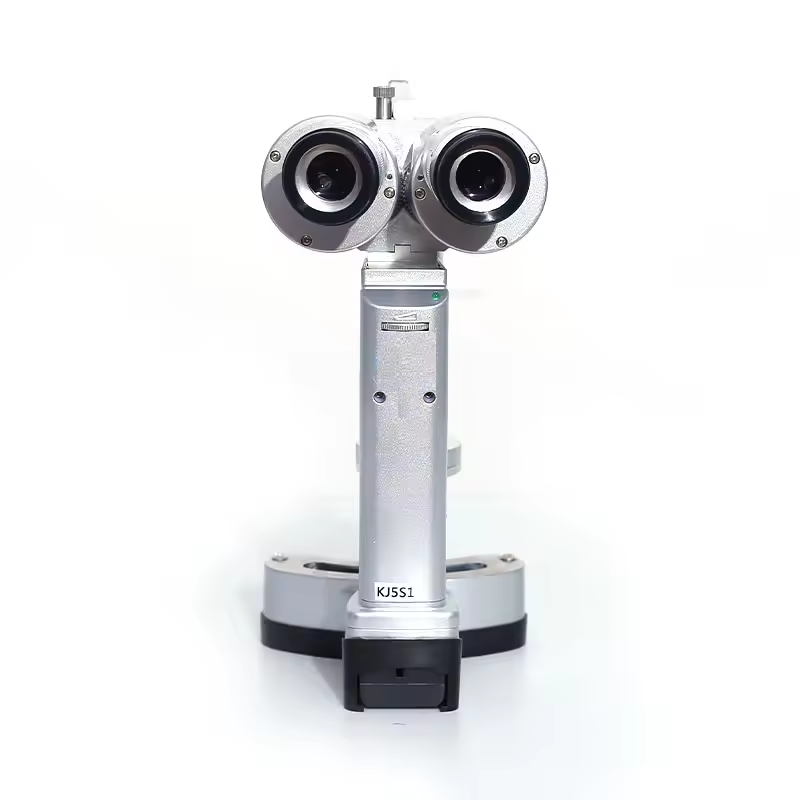

IWAMED IWA-HH01 Hand-held Slit Lamp
Ergonomic Portable Hand-held Slit Lamp with High Luminance White LED
Product Overview
The IWAMED IWA-HH01 is an ergonomic portable hand-held slit lamp. This device features high illuminance white LED light source, dual magnification eyepieces, and a rechargeable lithium-ion battery that supports up to 2 hours of continuous operation.
It is designed for clinical ophthalmic examination and diagnosis, providing excellent portability and performance in a compact handheld form factor.
Key Features

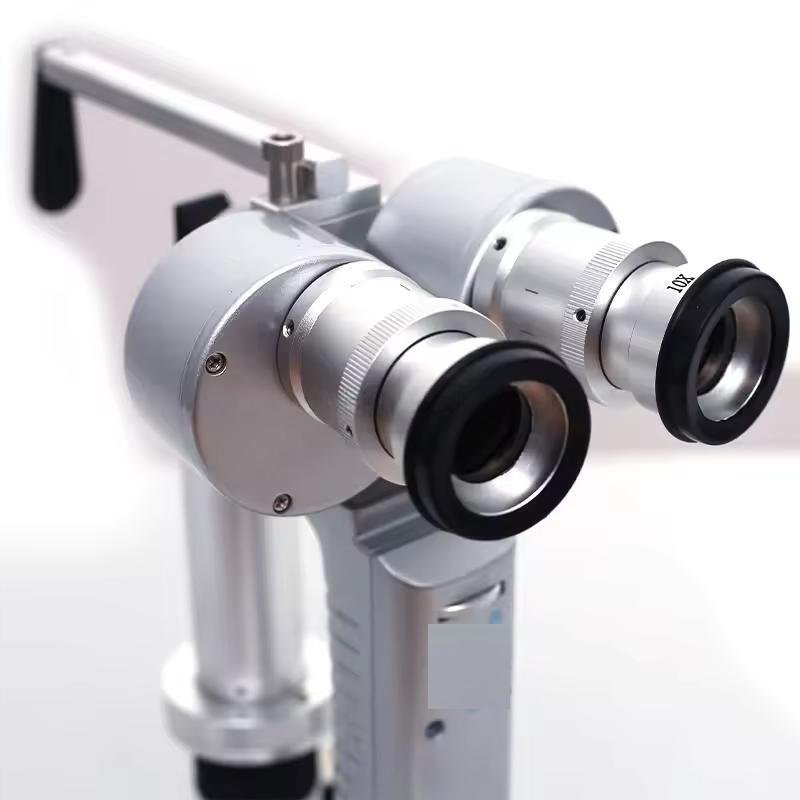

- ✅ Dual Magnification - Comes with 10x and 16x eyepieces
- ✅ Diopter Adjustment - Supports ±5D diopter adjustment
- ✅ High Brightness LED - High luminance white LED light source
- ✅ Portable Design - Total weight 1.80 kg including battery
- ✅ Rechargeable - Includes charger and rechargeable lithium-ion battery
- ✅ Filter Rotation - Supports filter rotation for different lighting conditions
- ✅ Long Battery Life - Up to 2 hours of continuous operation at full brightness
- ✅ Hard Case Included - Comes with hard carry-on protection case
Product Specifications
| Brand | IWAMED |
| Model | P-SL1 / IWA-HH01 |
| Eyepiece Magnification | 10x and 16x |
| Objective Lens | 1x |
| Total Magnification | 10x and 16x |
| Diopter Adjustment | ±5D |
| Visual Field | 10mm |
| Pupil Distance Adjustment | 50-75mm (at 10x), 55-70mm (at 16x) |
| Working Distance | 78 mm |
| Slit Width Range | 0 - Ø10mm |
| Slit Length Options | Ø1mm, Ø3mm, Ø5mm, Ø10mm |
| Available Filters | Cobalt blue, Green, Color temperature conversion |
| Illumination Angle | 30 degrees on level circumference |
| Light Source | High brightness white LED |
| Battery Type | Rechargeable lithium-ion battery |
| Rated Capacity | 7.4V/680mAh |
| Operation Time | About 2 hours (full charge at maximum illumination) |
| Battery Charger | AC 100-240V 50/60Hz |
| Charging Output | DC 8.4V/600mA |
| Overall Dimensions | 159mm (W) × 107mm (D) × 231mm (H) |
| Weight | About 1.80kg (including battery), 700g (unit only) |
Packaging Information
| IWAMED IWA-HH01 Hand-held Slit Lamp | 1 unit |
| Set of 10x and 16x Eyepieces | 1 set |
| Rechargeable Lithium-ion Battery | 1 unit |
| Battery Charger (AC 100-240V) | 1 unit |
| Optical Filter Set (Cobalt blue, Green, CT conversion) | 1 set |
| Hard Carry-on Protection Case | 1 unit |
| User Manual | 1 copy |
