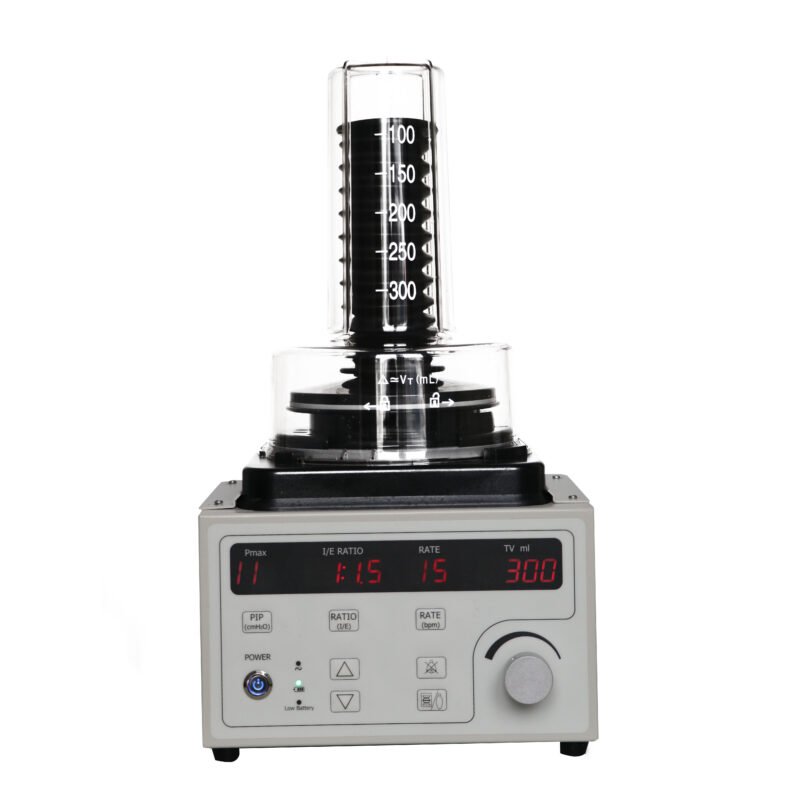

IWA-VA01 Veterinary Anesthesia Ventilator
Veterinary Anesthesia Ventilator for precision animal anesthesia management
Product Overview

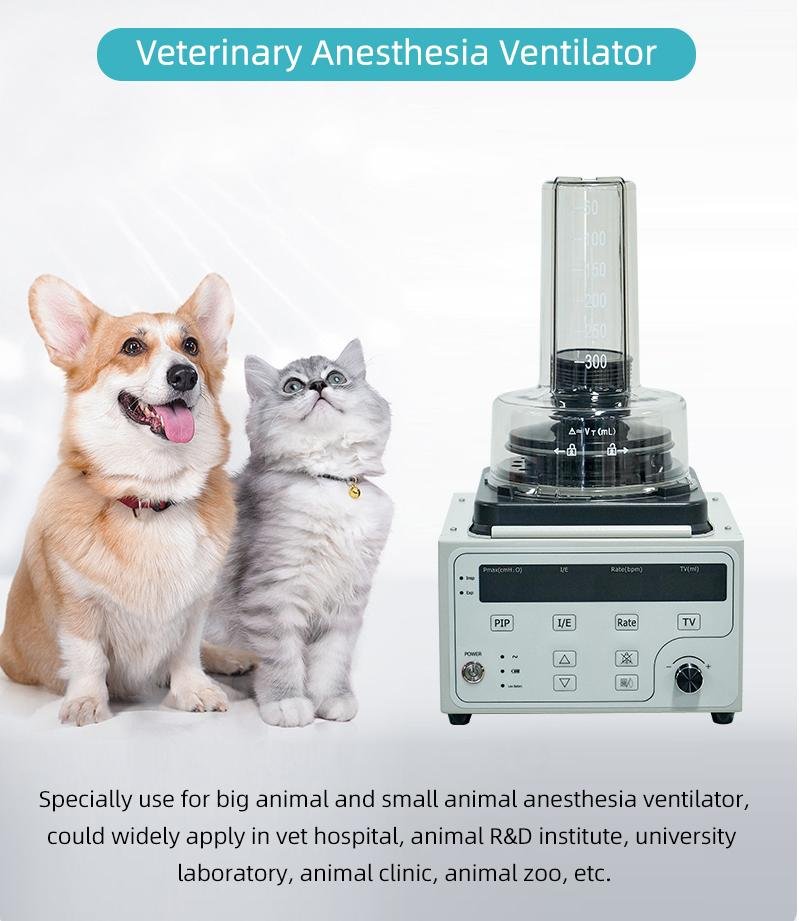

Veterinary Anesthesia Ventilator
Specially use for big animal and small animal anesthesia ventilation,
could widely apply in vet hospital, animal R&D institute, university
laboratory, animal clinic, animal zoo, etc.
The IWAMED IWA-VA01 Veterinary Anesthesia Ventilator is a specialized ventilation system designed for veterinary clinics and surgical centers. It provides precise control of respiratory parameters during animal anesthesia, ensuring patient safety and stable operating conditions for surgical procedures. Originally developed by LumaVet as model LUMA-VA60, this ventilator offers reliable performance at an accessible price point for veterinary practices of all sizes.

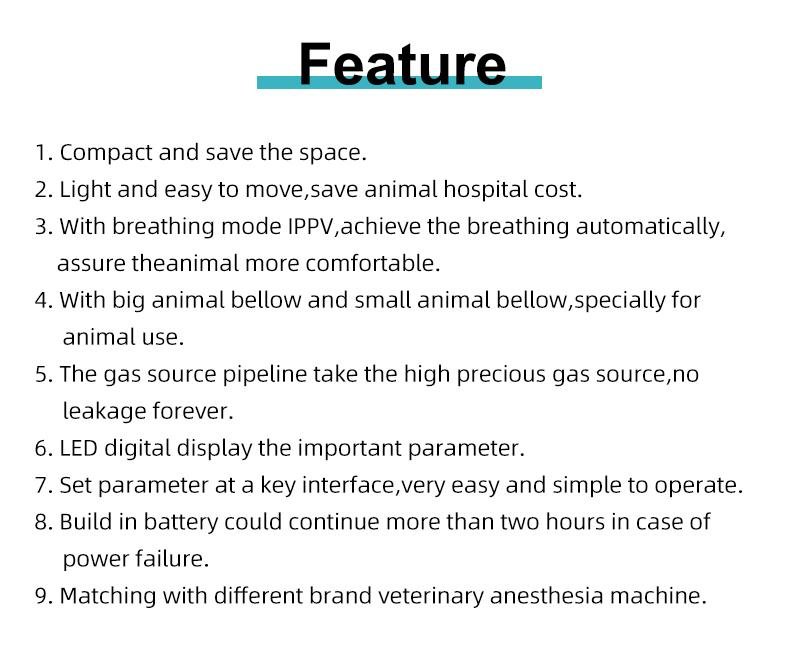

Key Features
- ✓ Compact and space-saving - Compact design saves valuable clinic space
- ✓ Lightweight and easy to move - Reduces operational costs for animal hospitals
- ✓ IPPV automatic breathing mode - Automatically provides breathing support, keeps animals more comfortable
- ✓ Dual bellows for all animal sizes - Includes both large animal bellows and small animal bellows, specially designed for veterinary use
- ✓ High-precision gas pipeline - High-quality gas source pipeline with permanent leak-proof performance
- ✓ LED digital display - Clearly displays all important parameters
- ✓ Easy one-key operation - Parameter setting through key interface, very easy to operate
- ✓ Built-in backup battery - Can continue working for more than two hours during power outages
- ✓ Wide compatibility - Compatible with different brands of veterinary anesthesia machines

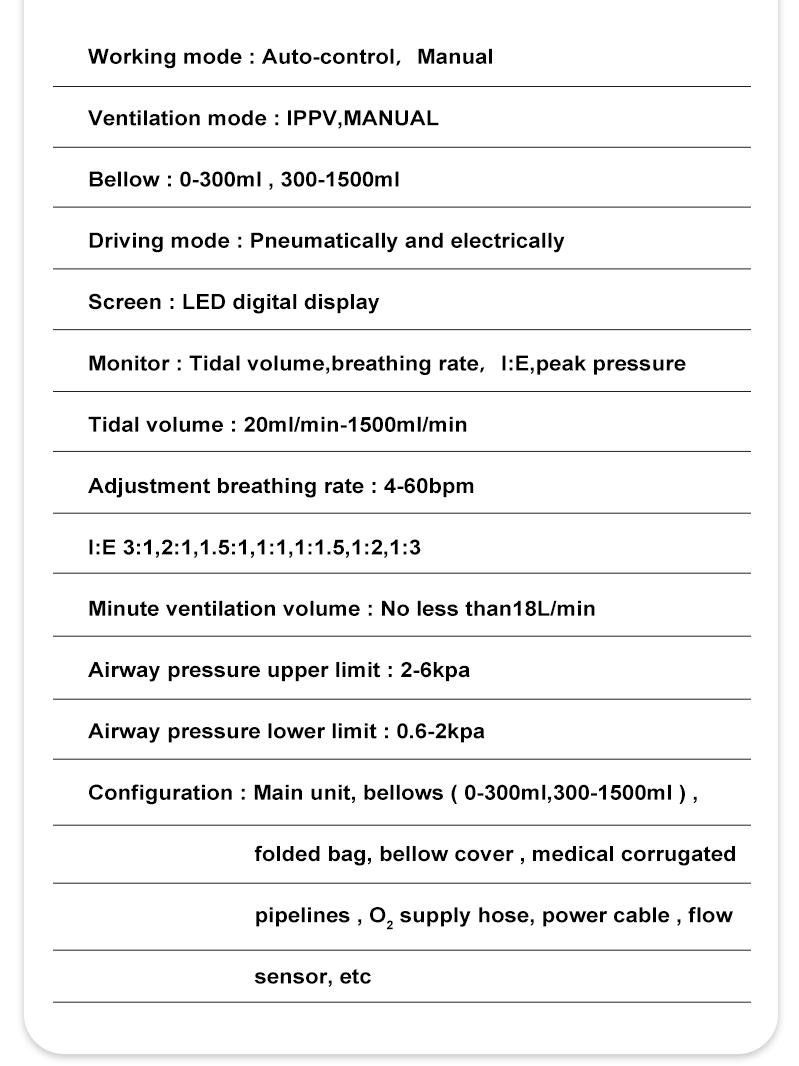

Product Specifications
| Product Name | Veterinary Anesthesia Ventilator |
| Model | IWA-VA01 |
| Category | Anesthesia Equipment |
| Working Mode | Auto-control, Manual |
| Ventilation Mode | IPPV, MANUAL |
| Bellows | 0-300ml (small animal), 300-1500ml (large animal) |
| Driving Mode | Pneumatically and electrically |
| Display | LED digital display |
| Monitoring Parameters | Tidal volume, breathing rate, I:E, peak pressure |
| Tidal Volume Range | 20ml/min - 1500ml/min |
| Breathing Rate Adjustment | 4-60 bpm |
| I:E Ratio Options | 3:1, 2:1, 1.5:1, 1:1, 1:1.5, 1:2, 1:3 |
| Minute Ventilation Volume | Not less than 18L/min |
| Airway Pressure Upper Limit | 2-6kpa |
| Airway Pressure Lower Limit | 0.6-2kpa |
| Price (USD) | $1,350.00 |
| Suitable For | Small to Large Animals |
Packaging Information
- 1 × IWA-VA01 Veterinary Anesthesia Ventilator Main Unit
- 2 × Bellows (0-300ml for small animal, 300-1500ml for large animal)
- 1 × Folded bag
- 1 × Bellow cover
- Medical corrugated pipelines
- O₂ supply hose
- Power cable
- Flow sensor
- 1 × User Manual
