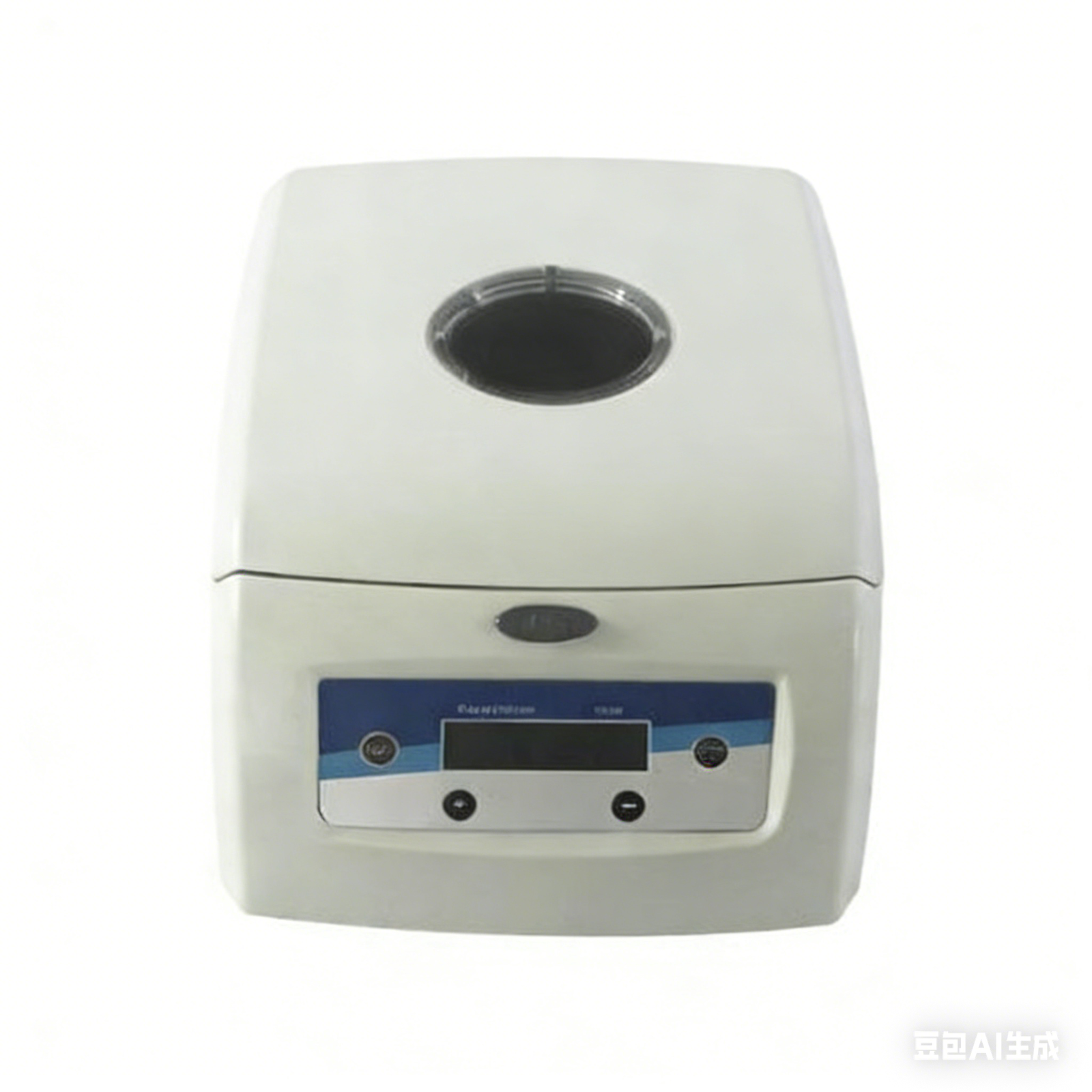

IWAMED IWA-HS01 High Speed Mini Centrifuge

High Speed Mini Centrifuge for Veterinary Laboratory

---

Product Overview

The IWAMED IWA-HS01 High Speed Mini Centrifuge is a compact desktop centrifuge designed for veterinary laboratory use. With its small footprint and powerful performance, it provides efficient centrifugation for microcentrifuge tubes and PCR strip tubes in veterinary research and clinical testing. Featuring PWM electronic speed regulation and multiple rotor options, it offers precise centrifugation up to 12000rpm with maximum RCF 9660×g.

---

Key Features

• ✓ Compact design saves space - Small footprint for efficient use of lab space
• ✓ PWM electronic speed control - PWM electronic speed regulation for precise speed control
• ✓ LCD display - LCD display with backlight, customizable display for rpm or RCF
• ✓ Multiple timing range - 10 seconds to 99 minutes timing range

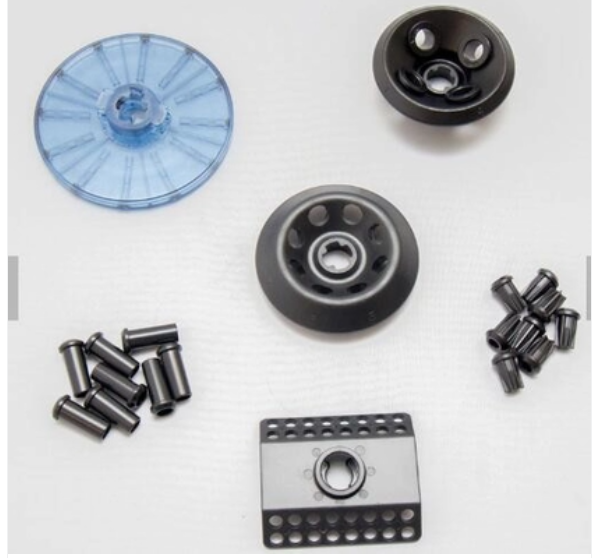

• ✓ Multiple rotor options - Includes multiple rotors for different tube types
• ✓ Safety features - Imbalance and tilt safety cut-out, safety interlock lid
• ✓ Fast acceleration/braking - <12s acceleration / <15s braking
• ✓ Tool-free quick rotor exchange - Tool-free, quick rotor exchange
• ✓ Quiet operation - Low vibration, noise <56db(A) at maximum speed

---

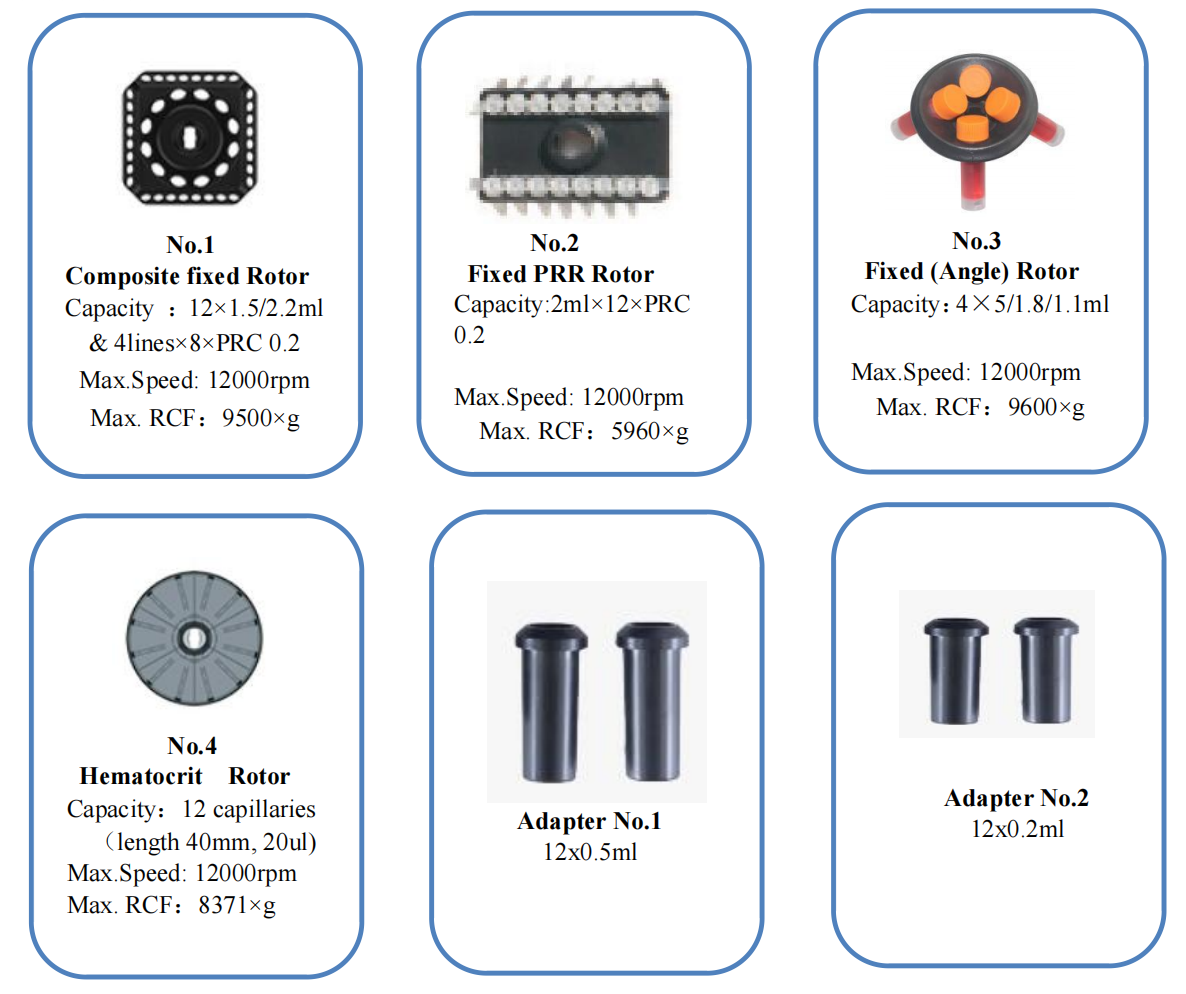

Available Rotor Options

Rotor No.	Rotor Type	Capacity	Max Speed	Max RCF
No.1	Composite fixed Rotor	12×1.5/2.2ml & 4lines×8×PRC 0.2	12000rpm	9500×g
No.2	Fixed PRR Rotor	2ml×12×PRC 0.2	12000rpm	5960×g

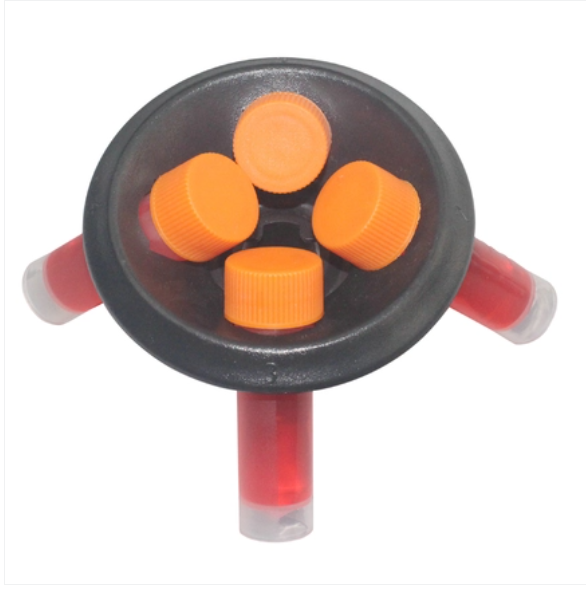

No.3	Fixed (Angle) Rotor	4×5/1.8/1.1ml	12000rpm	9600×g
No.4	Hematocrit Rotor	12 capillaries (length 40mm, 20ul)	12000rpm	8371×g

Adapters:

• Adapter No.1: 12×0.5ml
• Adapter No.2: 12×0.2ml

---

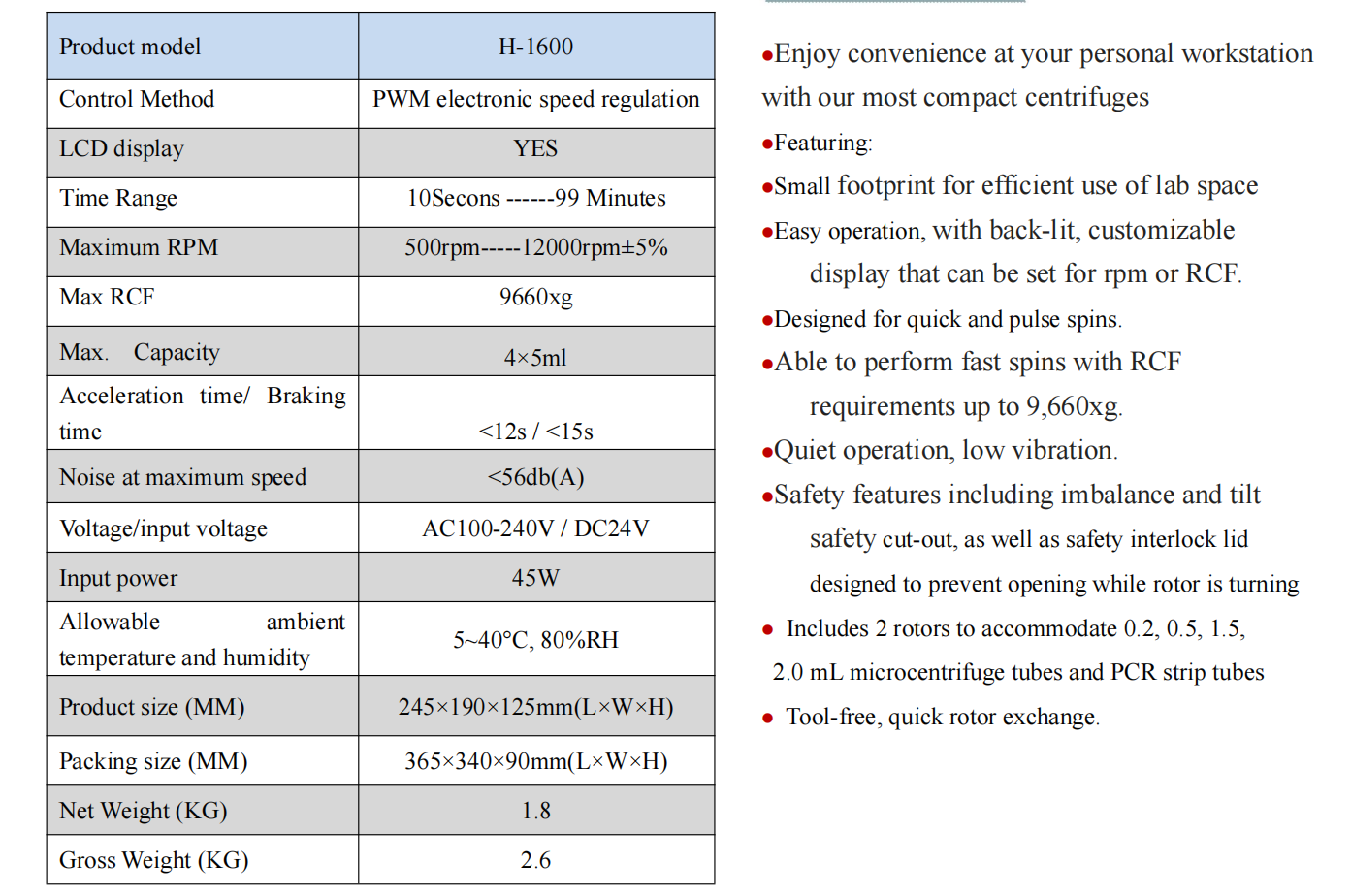

Product Specifications

Product Name	High Speed Mini Centrifuge
Model	IWA-HS01 (Original: H-1600)
Category	Laboratory Equipment
Control Method	PWM electronic speed regulation
LCD Display	YES
Time Range	10Seconds ------ 99 Minutes
Maximum RPM	500rpm------12000rpm±5%
Max RCF	9660×g
Maximum Capacity	4×5ml
Acceleration time / Braking time	<12s / <15s
Noise at maximum speed	<56db(A)
Voltage/Input voltage	AC100-240V / DC24V
Input power	45W
Allowable ambient temperature and humidity	5~40°C, 80%RH
Product size (mm)	245×190×125mm(L×W×H)
Packing size (mm)	365×340×90mm(L×W×H)
Net Weight	1.8 KG
Gross Weight	2.6 KG

---

Packaging Information

• 1 × IWA-HS01 High Speed Mini Centrifuge Main Unit
• 1 × Standard rotor (according to customer selection)
• Additional rotors (optional according to requirement)
• 1 × Power cable
• 1 × User Manual
