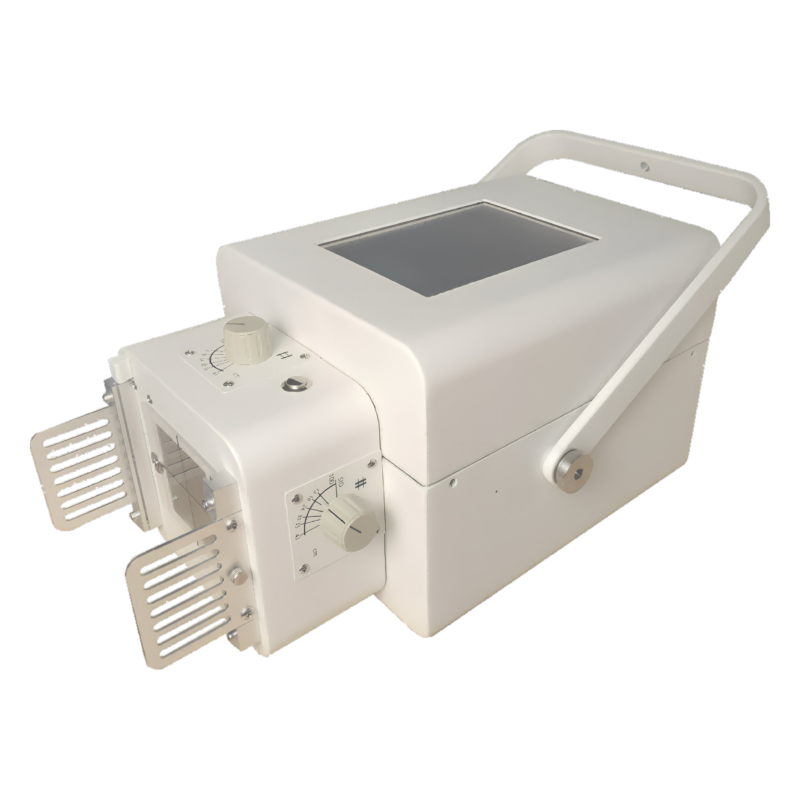

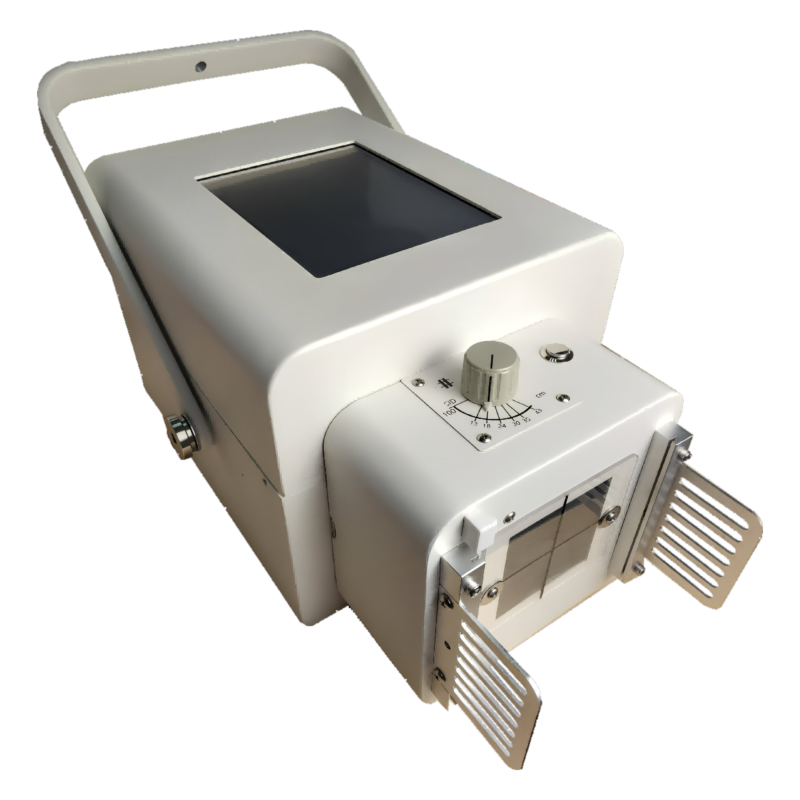

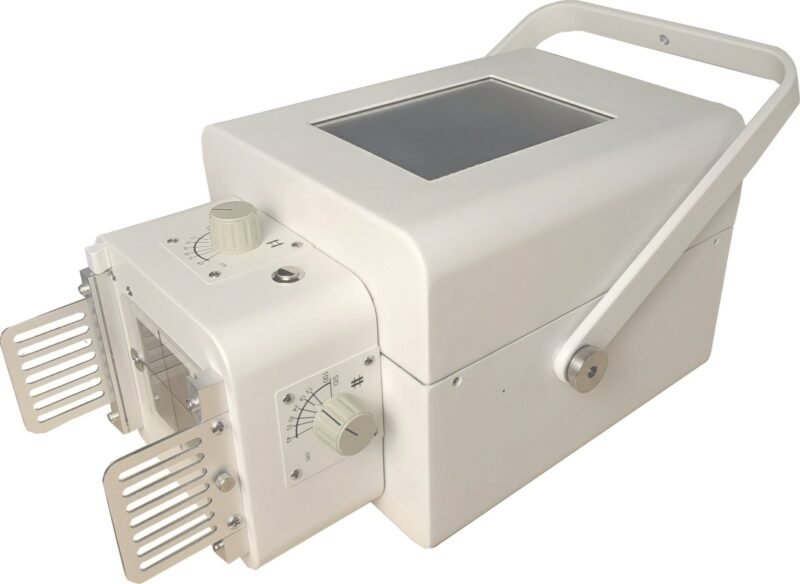

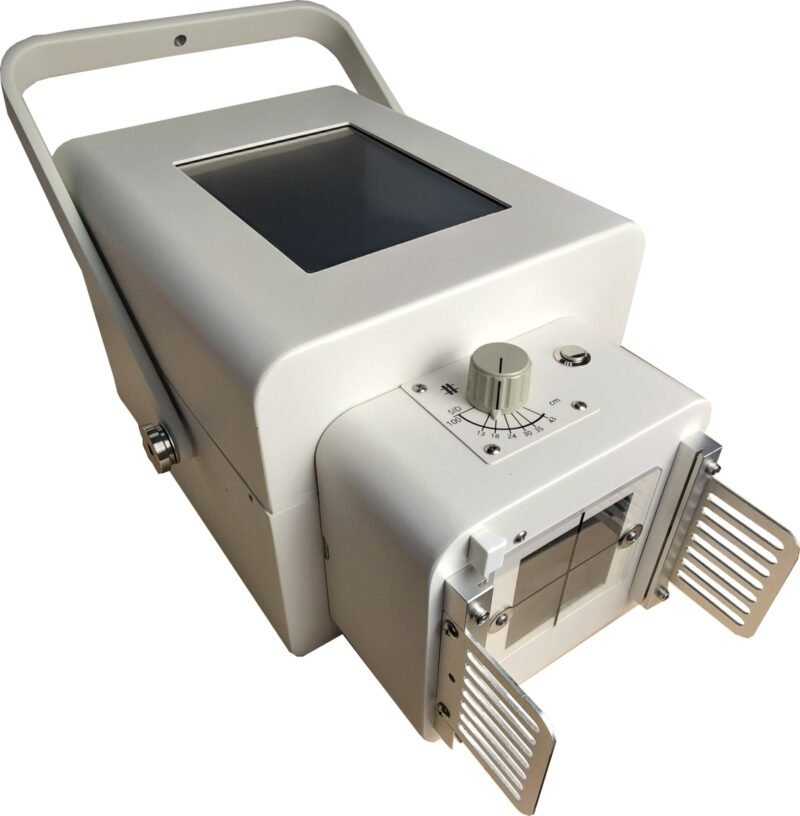

Portable X-Ray System iFlex-5Pro

Product Overview

The iFlex-5Pro is a combined high-frequency X-ray source for veterinary radiography, with a kV range up to 125 kV, an 80–200 kHz working frequency, WiFi communication and CE certification.

The standard configuration runs on 100–264 VAC mains power for in-clinic use. An optional built-in lithium battery adds a 48 VDC input and provides one day of standby on a full charge, supporting ambulatory and field work.

Key Features

• Mains powered as standard; optional built-in lithium battery for ambulatory and field settings
• Optional battery: one day of standby on a full charge
• CE certified
• Combined high-frequency X-ray source, 80–200 kHz working frequency
• kV range 40–125 kV with ≤3% kV ripple at 100 kV for stable density images
• 5.6 kW maximum / 5.6 kW nominal output, 5–100 mA tube current
• Wide exposure time 1–10000 ms with ±(2%+0.2 ms) accuracy
• 0.6 mm / 1.8 mm dual focal spot, 20 kJ anode heat storage
• Auto-tube calibration and service software support
• WiFi and RS232 dual communication interfaces
• Standard input 100–264 VAC; with optional battery 100–240 VAC / 48 VDC

Technical Specifications

Clinical Applications

• Canine and feline thoracic, abdominal, pelvic, limb and spinal radiography
• Mobile radiography in wards and surgical areas on the optional folding cart
• Field-based equine and large-animal radiography (optional battery)
• Mobile veterinary practice and house-call imaging (optional battery)
• Remote clinic deployments without reliable mains power (optional battery)
• Veterinary teaching and demonstration environments

Package Contents

• 1 × iFlex-5Pro X-ray source (mains powered; battery factory-fitted when ordered)
• 1 × Power cord or adaptor (per configuration); AC/DC adaptor supplied with the optional battery
• 1 × Hand exposure switch (optional remote)
• 1 × User manual
• 1 × CE certificate copy
• 1 × Warranty certificate
• Optional: built-in lithium battery
• Optional: mobile folding cart
• Optional: detector protection case
• Optional: V-shape positioning set
• Optional: lead protective set

Why Choose iFlex-5Pro

• One product for in-clinic and ambulatory work: add the built-in battery only when field imaging is required
• With the optional battery, the 48 VDC input allows operation from external vehicle or generator batteries
• CE certification supports regulatory acceptance in international markets
• Tight kV regulation (≤3% ripple) improves repeatability of paired DR images
• Dual 0.6 mm / 1.8 mm focal spots cover both fine extremity detail and thoracic or abdominal studies

Warranty & Support

1-year manufacturer warranty on hardware and software. Terms for the optional built-in battery are agreed separately as a consumable. Remote diagnostics and spare-part support are provided by our service team.

Frequently Asked Questions

Is the battery included as standard?

No. The standard configuration runs on 100–264 VAC mains power. A built-in lithium battery is available as an option and is fitted at the factory when ordered.

How long does the optional battery last per charge?

A full charge provides one day of standby. The number of exposures per charge depends on technique settings; charge the unit from mains power overnight.

Can it run from a vehicle power supply?

Yes, when the optional battery is fitted. The unit then accepts a 48 VDC input from a vehicle supply or external battery. Confirm any non-original power source with us before use.

Can it be paired with a wireless detector?

Yes. The WiFi and RS232 interfaces link the unit to a paired detector and acquisition software; integration is confirmed per proposal.

What is the maximum output?

5.6 kW maximum and nominal power, 40–125 kV and 5–100 mA, with kV-mA-ms or kV-mAs technique selection.
