Basic Digital X-ray DR system iSee-200

Product Overview

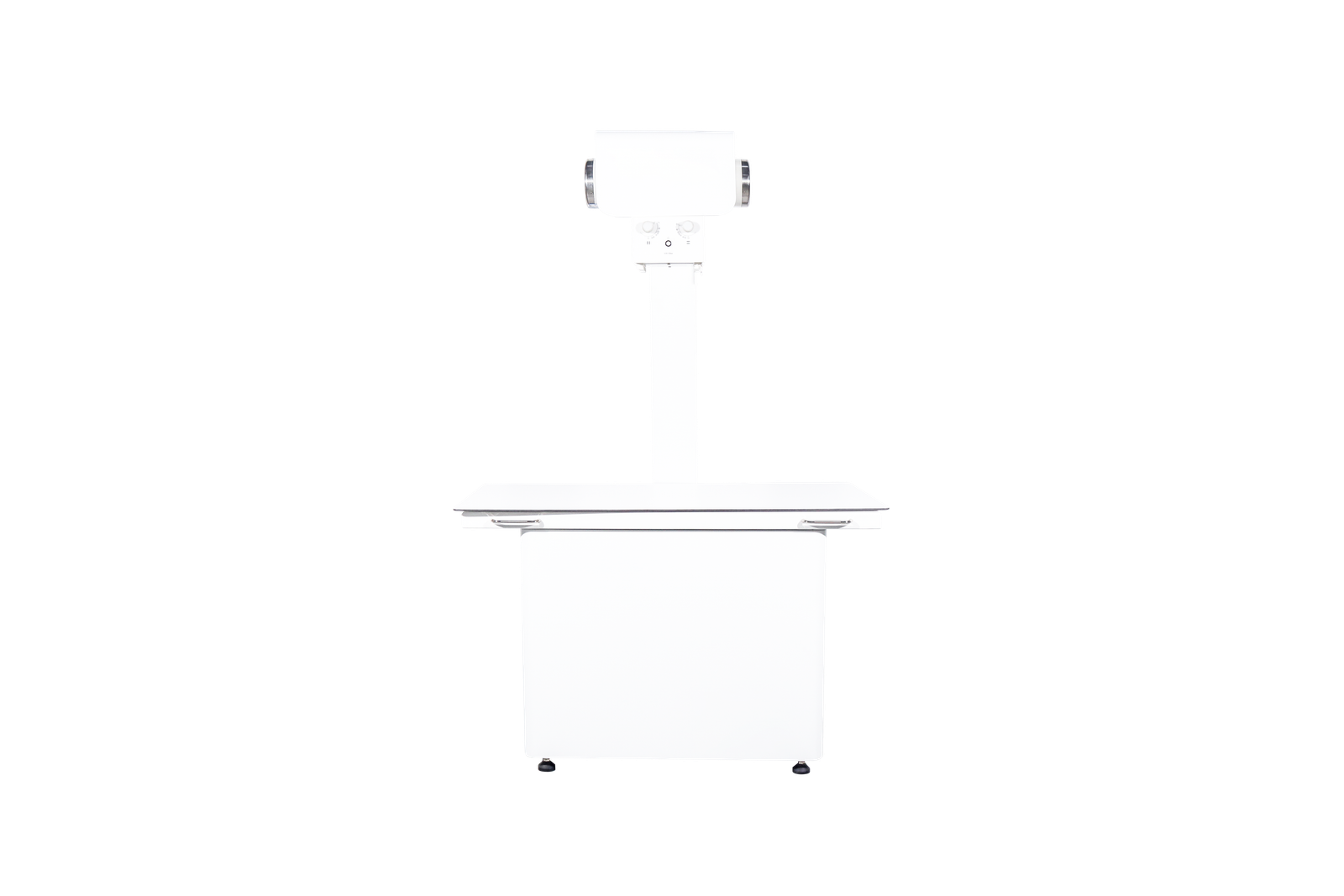

iSee-200 Basic Digital X-ray DR System is the entry configuration of the IWA veterinary DR line, built for budget-conscious practices that will not compromise on the imaging standard. It pairs a 32 kW high-frequency generator and the iLume 4343 CsI flat-panel detector — the same image chain used in higher-tier models — with a 1.2 m compact patient table that fits limited radiography space.

The software is not reduced with the price: the acquisition workstation, AI imaging assistant, and first-year imaging cloud service ship as standard, on the same pengineAI software ecosystem as the flagship systems. iSee-200 suits general practice, mobile satellite clinics, and shelter medicine settings that need consistent diagnostic-quality static radiography.

Key Features

• 32 kW high-frequency generator: 40–125 kV, 10–400 mA, 1–10000 ms.
• Dual-focus X-ray tube from an established tube manufacturer: 0.5 / 1.0 mm focal spots, 140 kHU anode heat capacity.
• iLume 4343 flat-panel detector: 43×43 cm CsI, 3072×3072, 139 µm pitch, 16-bit A/D, 3.6 LP/mm, one-second acquisition via GigE.
• Acquisition workstation included — acquire, process, and analyse on a single 23.8″ display with iVetXray + MiniPACS.
• AI imaging assistant — generates report drafts from acquired studies; the veterinarian reviews, edits, and signs off.
• First-year imaging cloud included — cloud storage with anywhere access to studies; data stays interoperable and upgradeable.
• 1.2 m compact table (1200×600 mm phenolic-resin top) — deploys in tight clinic floor plans, 200 kg load capacity.
• LED collimator with adjustable field at SID 100 cm and 30 s auto shut-off.

Product Gallery

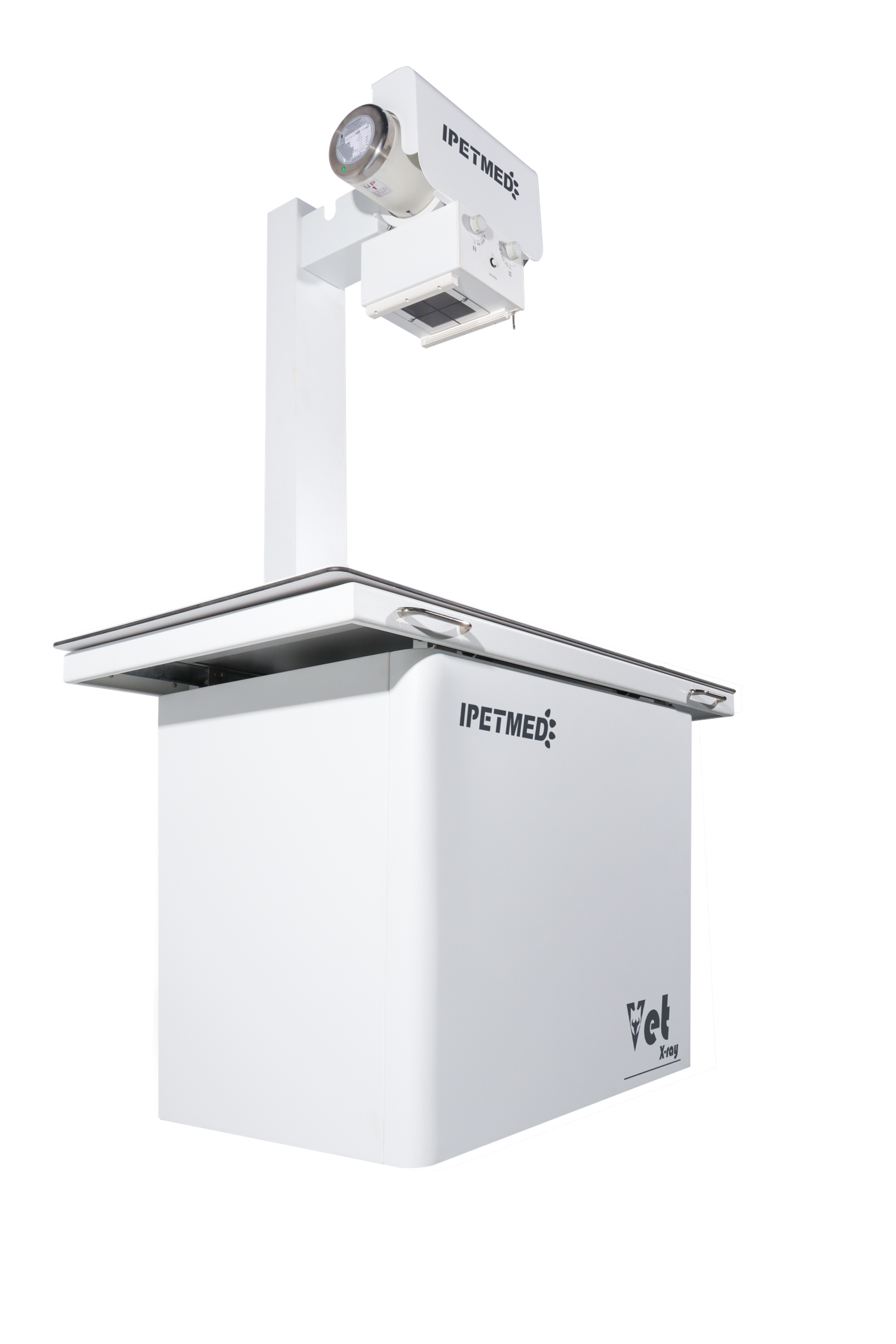

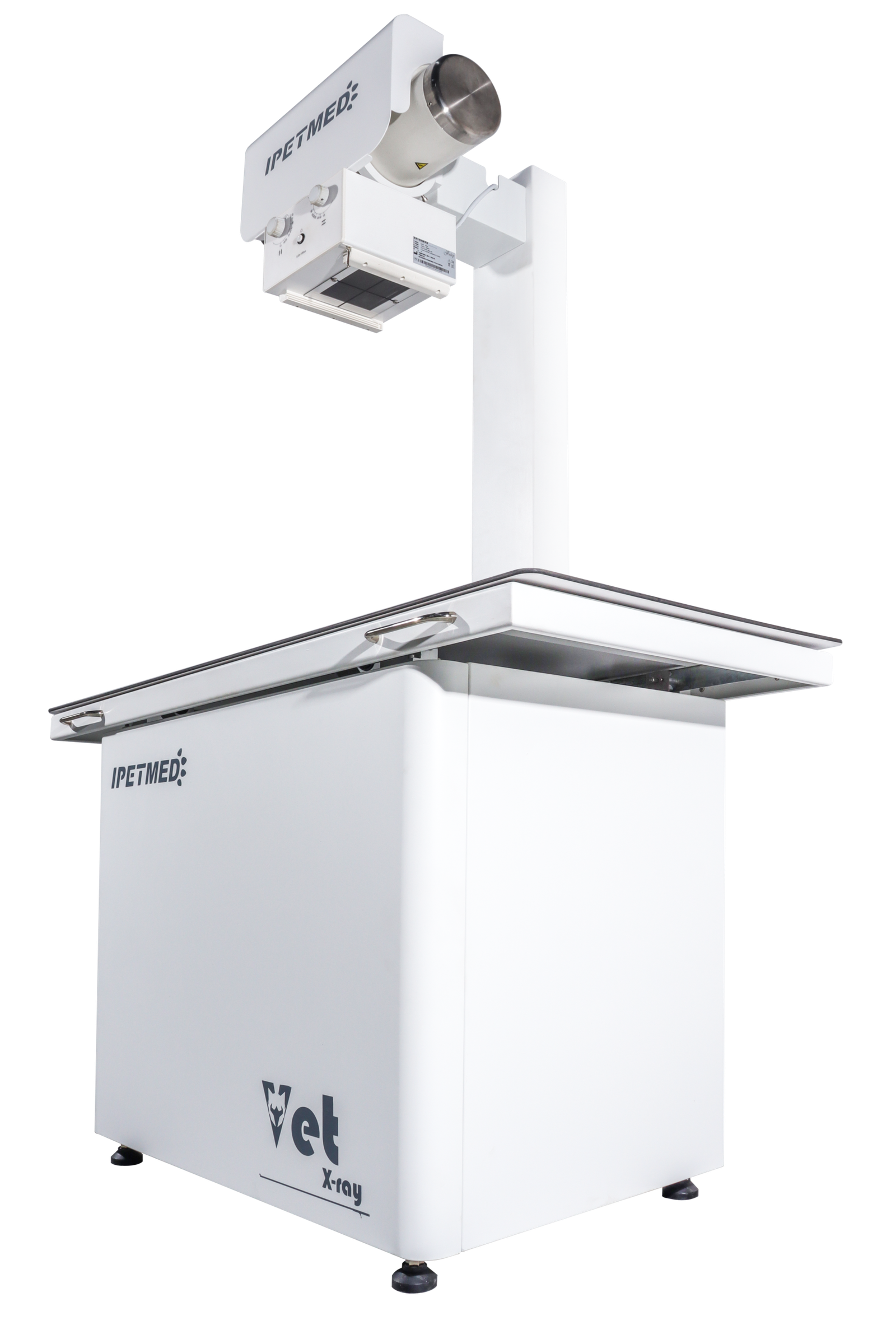

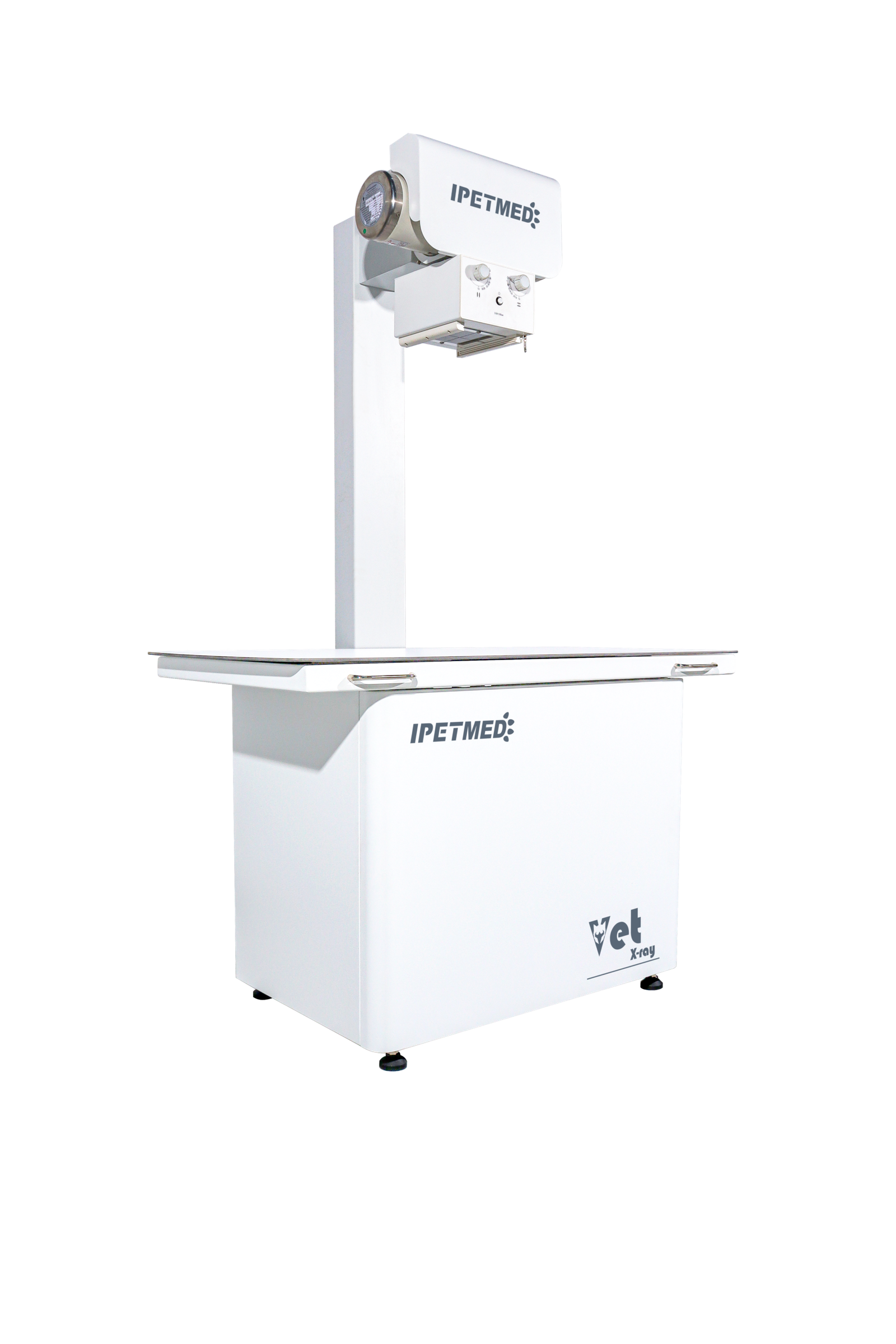

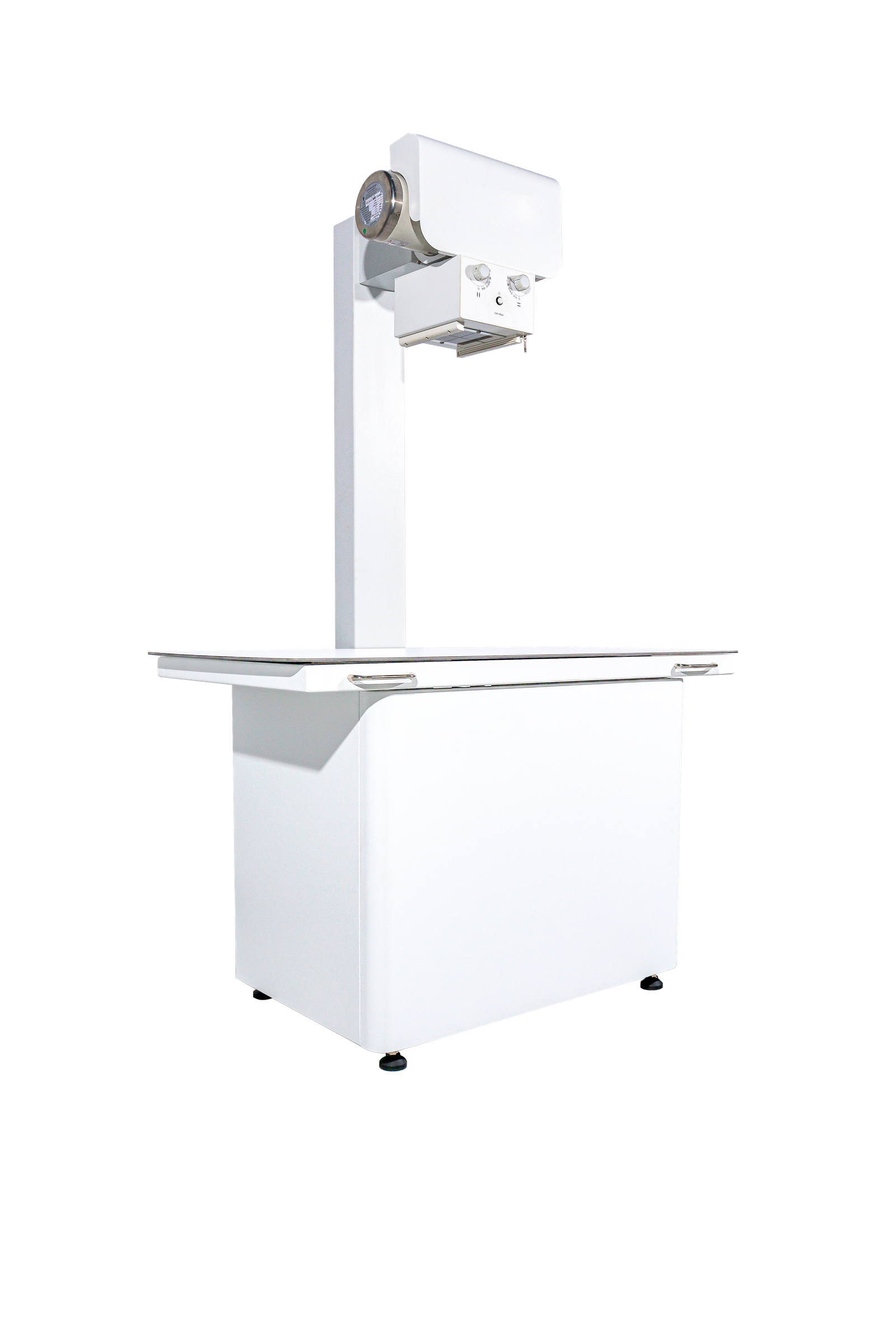

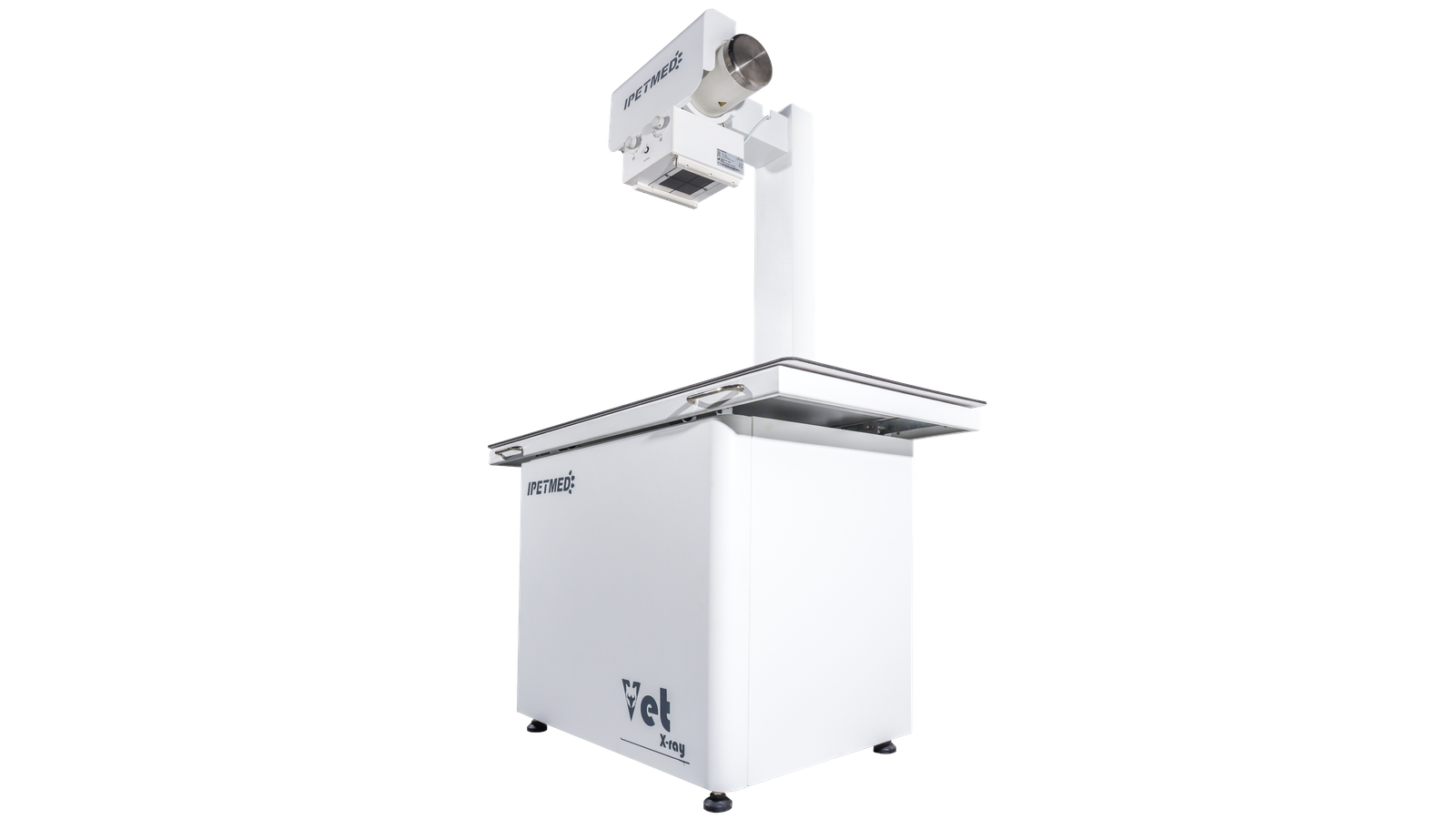

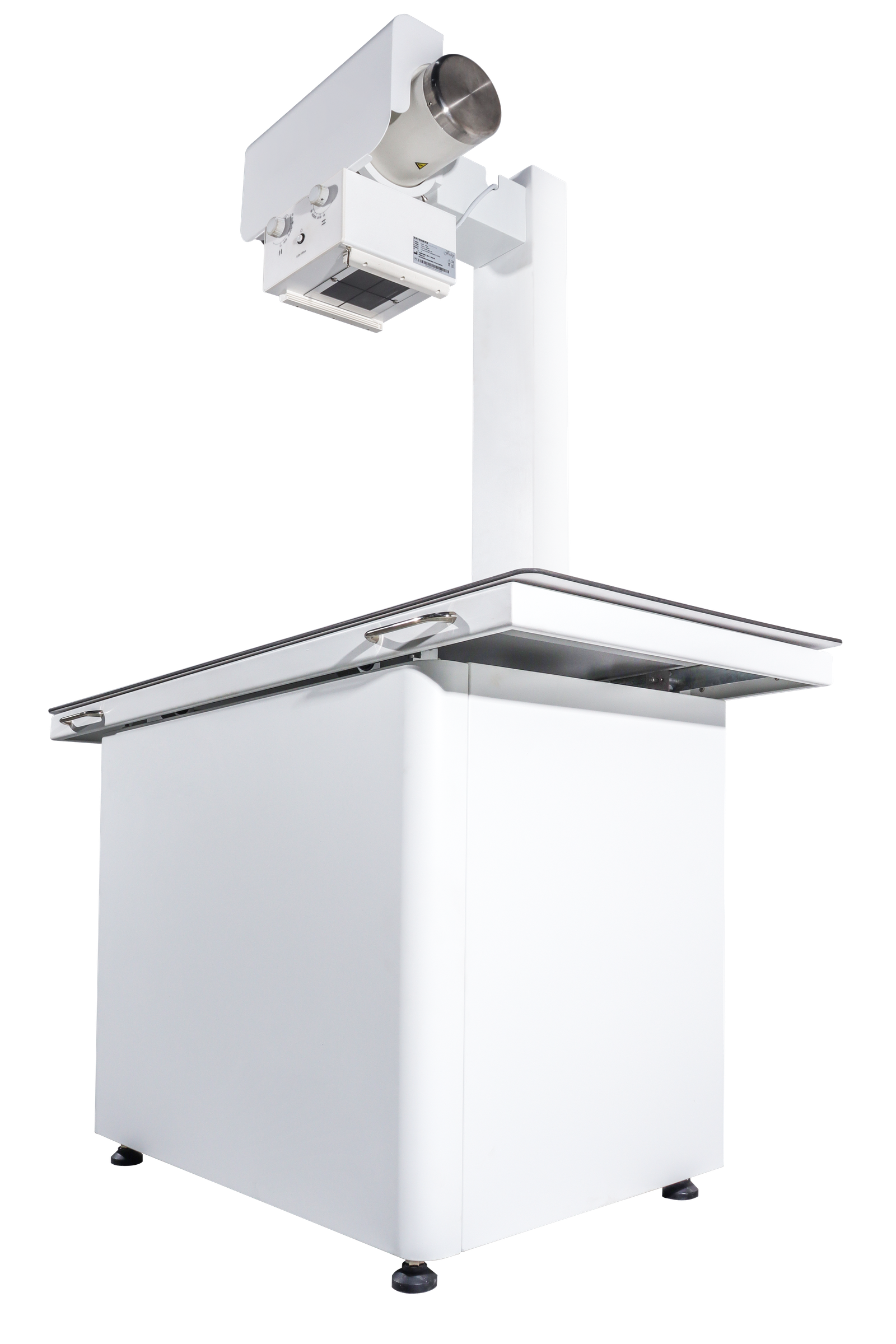

System views from multiple angles: tube column and table layout, side configurations, and full system setup.

High-voltage generator

X-ray tube

Flat-panel detector — iLume 4343

Table, collimator, workstation

Imaging Workstation & AI Workflow

The bundled imaging workstation covers the full study workflow in five modules — no separate software purchase for the entry model:

• Worklist — pending, in-progress, and completed studies at a glance, with multi-criteria filtering and batch operations.
• Image viewing / acquisition — full acquisition parameter set with real-time preview and multi-view capture.
• Patient registration — rapid registration of patient and owner records, with species, view, and template selection.
• Study history — complete records with image review, comparison, and export for follow-up and case tracing.
• AI report draft — the AI imaging assistant analyses studies and generates a draft report; the veterinarian reviews, edits, and signs off before release.

The first year of imaging cloud service is included: studies are stored in the cloud and can be reviewed from anywhere. iSee-200 runs on the same pengineAI software ecosystem as the flagship systems, so archives migrate with the practice when the hardware is upgraded.

Clinical Applications

• Canine and feline thoracic, abdominal, and skeletal radiography
• Pre-anaesthetic and post-operative routine imaging
• Shelter and mobile-clinic radiography programmes
• Small-mammal and exotic general radiography

Clinical Imaging Samples

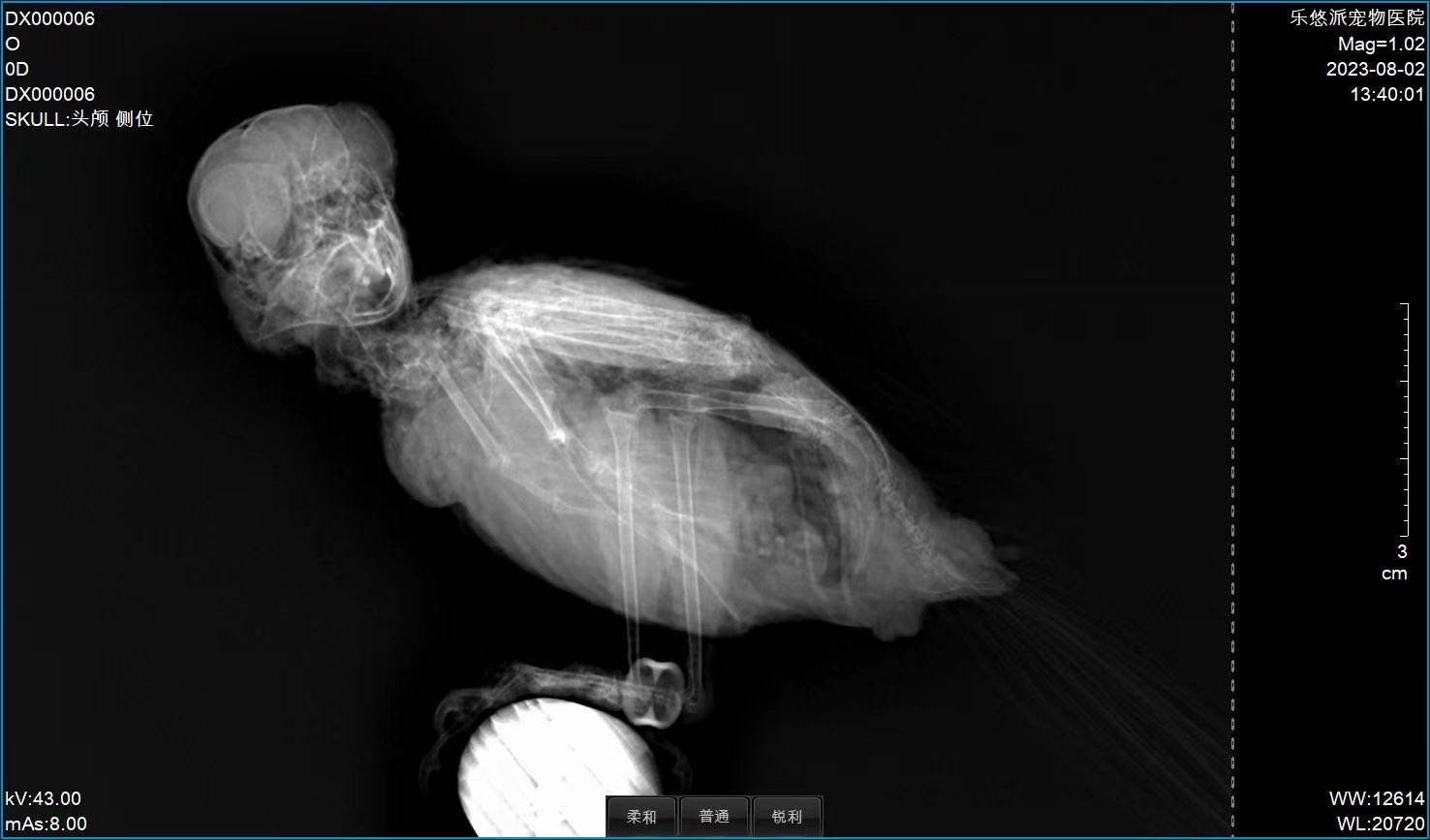

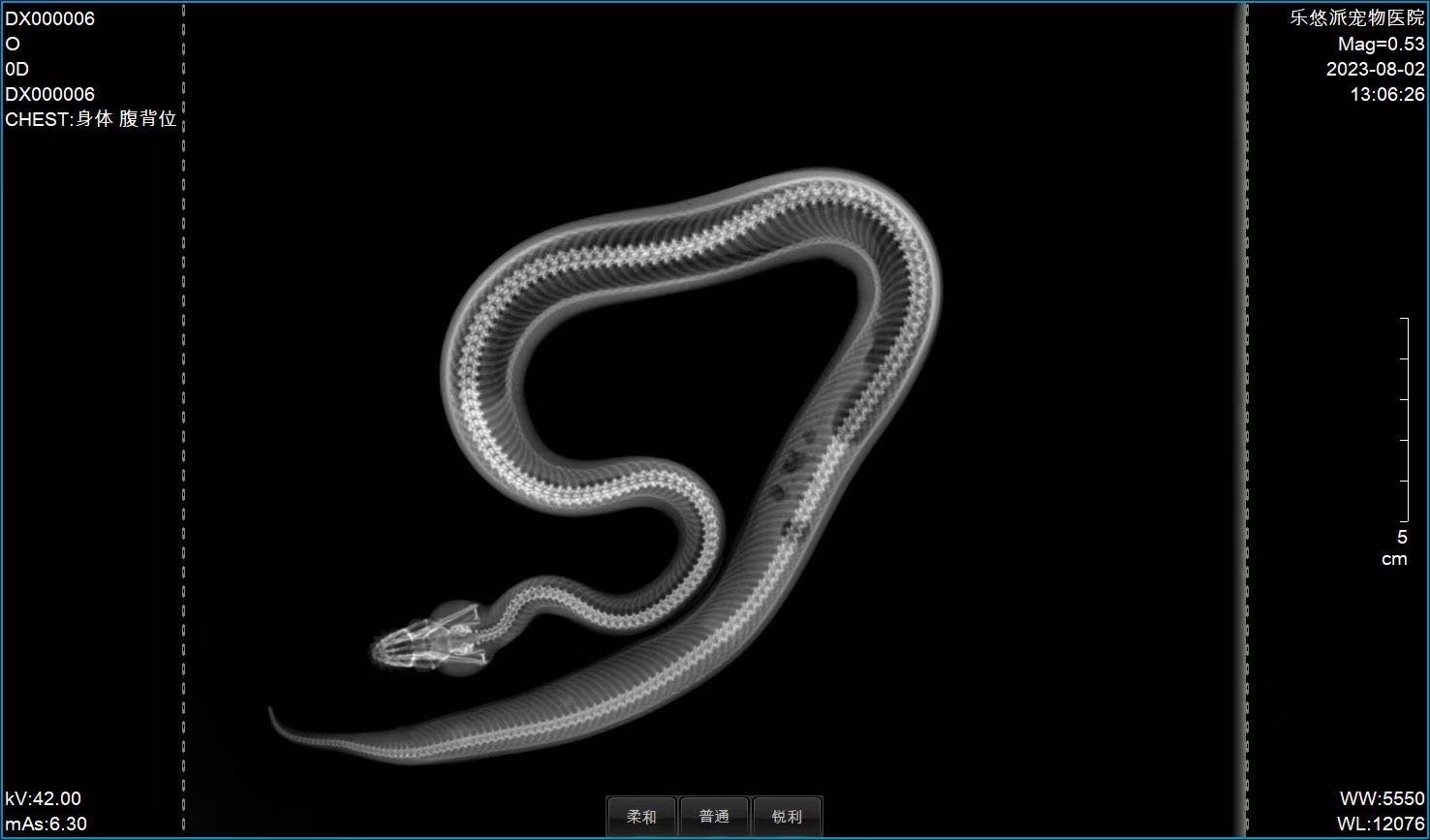

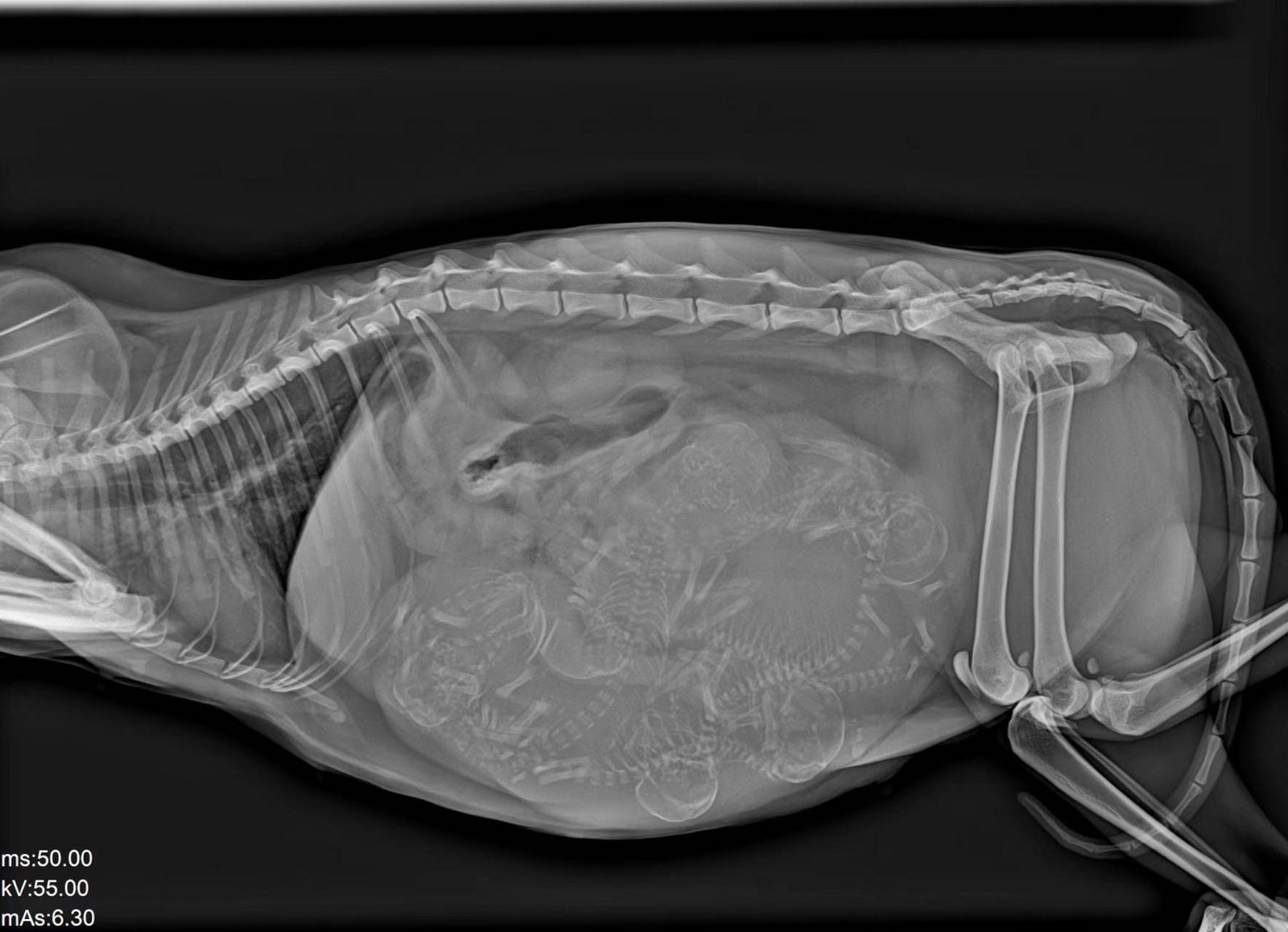

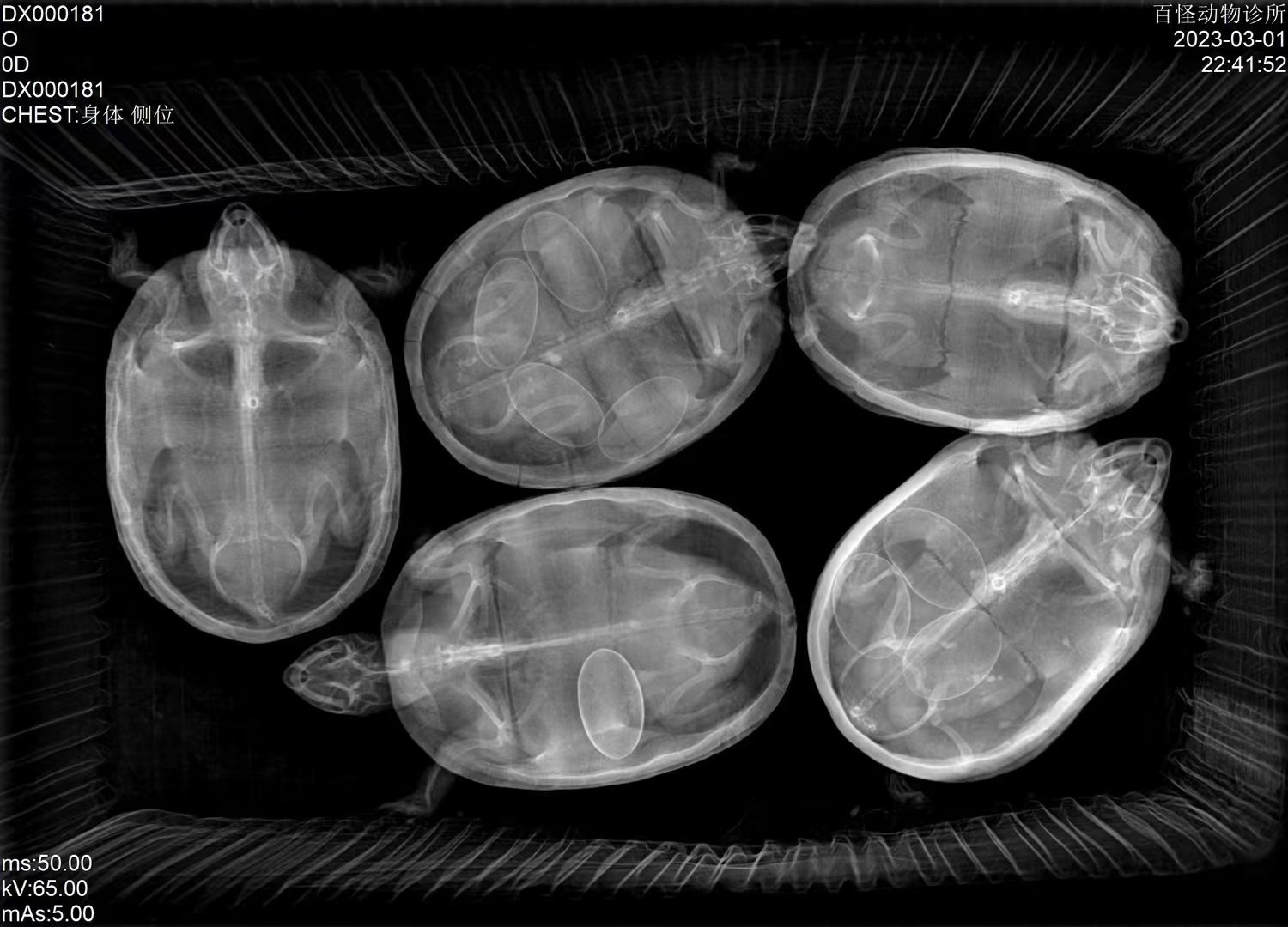

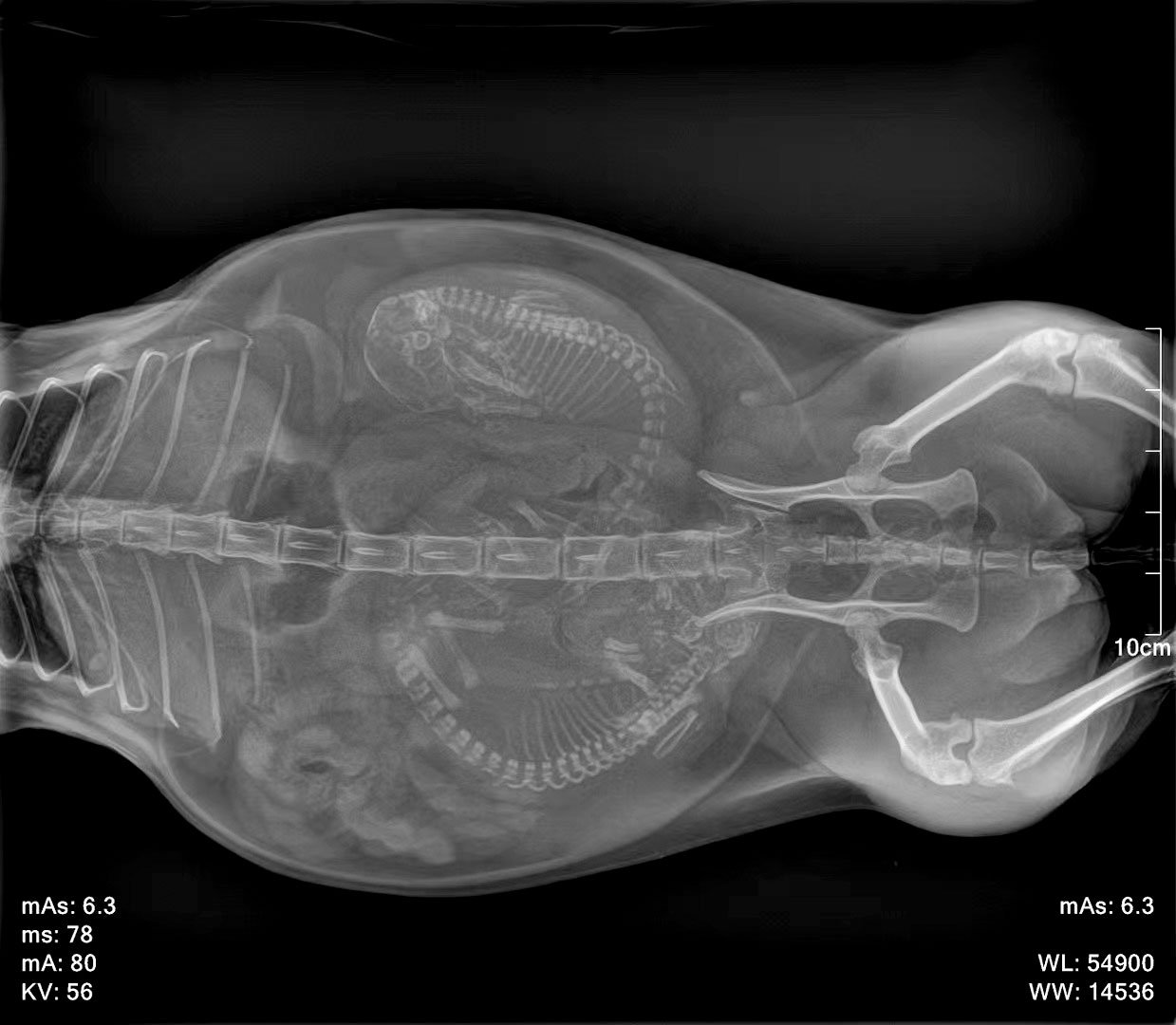

Representative radiographs captured on the iSee-200 image chain across companion-animal and exotic species.

Workflow & Installation

Single-phase 110/220 VAC power. The 1.2 m compact table and small footprint suit clinics with limited dedicated radiography space. Operating environment 5–35 °C, 10–75 % RH. Engineer-led installation and operator training included.

Package Contents

• High-voltage generator + control box
• X-ray tube assembly + high-voltage cables
• iLume 4343 flat-panel detector (17×17″ CsI) + adapter
• LED collimator
• Patient table (1200×600 mm)
• iVetXray workstation: 23.8″ display, PC, software dongle
• V-shape positioning set (1 large + 1 small)
• Lead protection set: gown, hat, scarf, glasses, gloves
• Hand switch, foot switch, network cable

Downloads

Why Choose iSee-200

• Workflow efficiency — same 1-second CsI acquisition and five-module workstation workflow as higher-tier IWA models; AI report drafts shorten reporting time while the veterinarian keeps sign-off.
• Clinical accuracy — 16-bit A/D and 3.6 LP/mm resolution support diagnostic-quality general radiography.
• Practice economics — lowest-cost entry into the IWA DR family without compromising image-chain components; archives migrate on hardware upgrade, protecting the data investment.
• Service parity — same after-sales service SLA as the full IWA DR range.

Warranty & Support

Two-year warranty on hardware and software. Optional extended-warranty service. After-sales service SLA identical to the rest of the IWA DR range. Engineer-led on-site installation and operator training included.

FAQ

Q: How is iSee-200 different from iPet-400?
Same image chain (32 kW generator, 17×17″ CsI panel) but smaller 1200×600 mm table and single-display workstation. iPet-400 has a 1400×700 mm table and dual-monitor workstation.

Q: Is the tube focal spot the same as iPet-400?
No. iSee-200 uses 0.5 / 1.0 mm dual focus; iPet-400 uses 1.0 / 2.0 mm; iPet-400 Pro uses 0.6 / 1.2 mm.

Q: Are AI report drafts released automatically?
No. The AI imaging assistant produces a draft only; the attending veterinarian reviews, edits, and signs off every report before release.

Q: What happens to the imaging cloud after the first year?
The first year is included with the system; the service can be renewed and the archive remains interoperable and migratable.

Q: Does it support DICOM PACS integration?
Yes. The workstation is DICOM 3.0 compliant.

Q: What is the smallest room size required?
The compact 1200×600 mm table makes iSee-200 the easiest system in the range to install in tight clinic floor plans.
