iLume 3025W Flat Panel Detector (Compact Wireless, 25×29 cm Active Area)

Product Overview

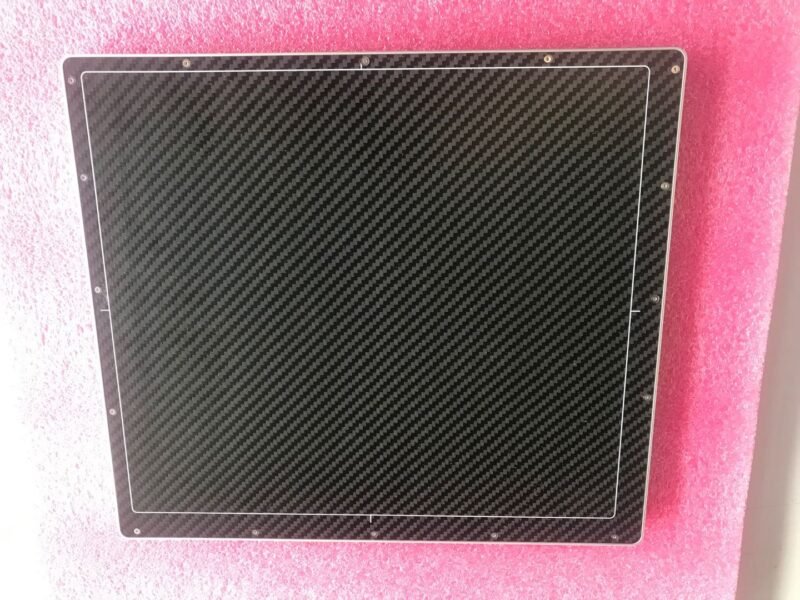

The iLume 3025W is the compact wireless detector in the iLume range: a 25×29 cm active area (the model number refers to the housing outline), 139 µm pixel pitch, CsI scintillator and a 1.9 kg housing. It is designed for exotic-species and equine distal-limb imaging, where a small detector can be placed directly against the anatomy.

Key Features

• 25×29 cm active area — a collimated field on the region of interest, lower dose to the patient.
• 1.9 kg housing — hand-held positioning against rabbits, birds, reptiles and equine distal limbs.
• Wired / wireless dual mode — 1 s image display over GigE, 2 s over 802.11ac wireless.
• 139 µm / 16 bit / 3.6 lp/mm — 14 nGy minimum detectable dose (RQA5).

Technical Specifications

Clinical Applications

• Exotic-species practice: rabbits, birds, reptiles, guinea pigs and other small patients
• Equine distal-limb imaging and other small regions on large animals
• Build-to-order configurations

Warranty & Support

Manufacturer warranty applies. Because the acquisition software and the detector come from the same supplier, one party is responsible for the whole imaging chain. Spare-detector arrangements are agreed per market — contact your distributor.

FAQ

Q: The model is 3025 — why is the active area 25×29 cm?
3025 refers to the housing outline. The active imaging area is 25×29 cm and is stated as such; select the detector for the region of interest on that basis.

Q: Who manufactures iLume detectors?
We define the specification, a contracted detector plant builds to our drawings, and we re-inspect every unit before shipment. The iLume name and the quality responsibility are ours.

Q: How is it ordered?
Build-to-order. Configuration and lead time are confirmed by your distributor.
