IWA-DX01 Veterinary Portable Diagnostic X-Ray Unit

Product Overview

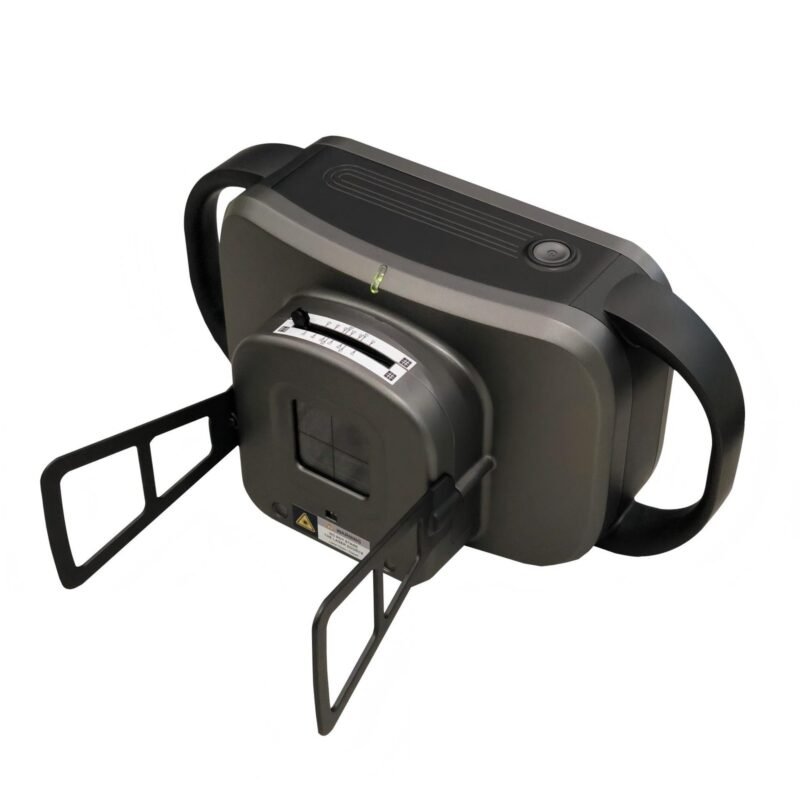

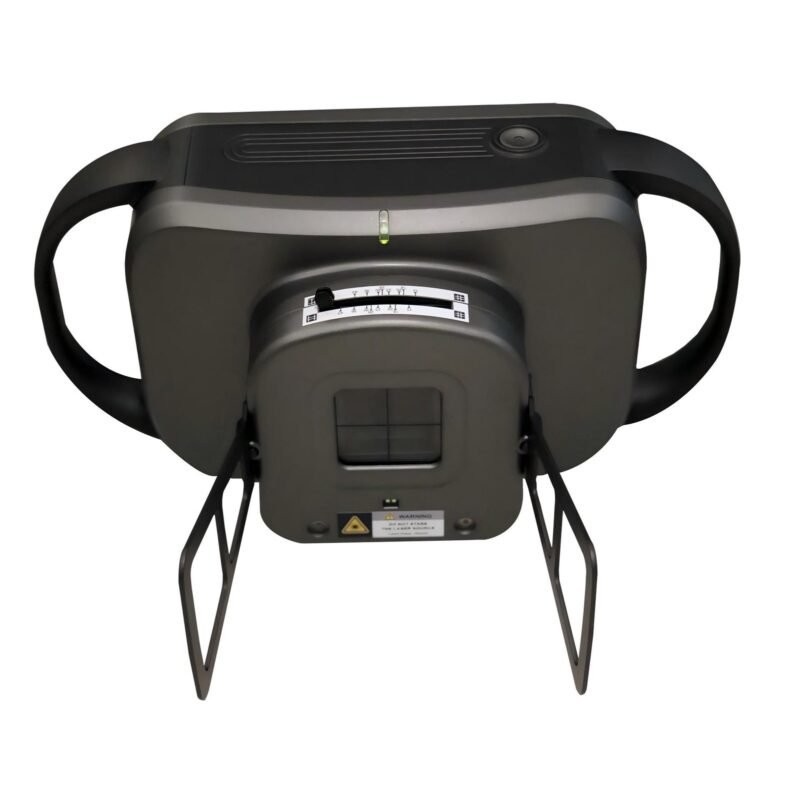

The IWA-DX01 is a true handheld portable veterinary X-ray unit weighing only 4 kg, designed for cordless single-operator use in small animal clinics, exotic practice, and ambulatory service.

It features a 7-inch LCD touchscreen, an automatic SID (source-to-image distance) measurement feature, an LED collimator lamp, and a rechargeable battery delivering approximately 150 exposures per 1–1.5 hour charge.

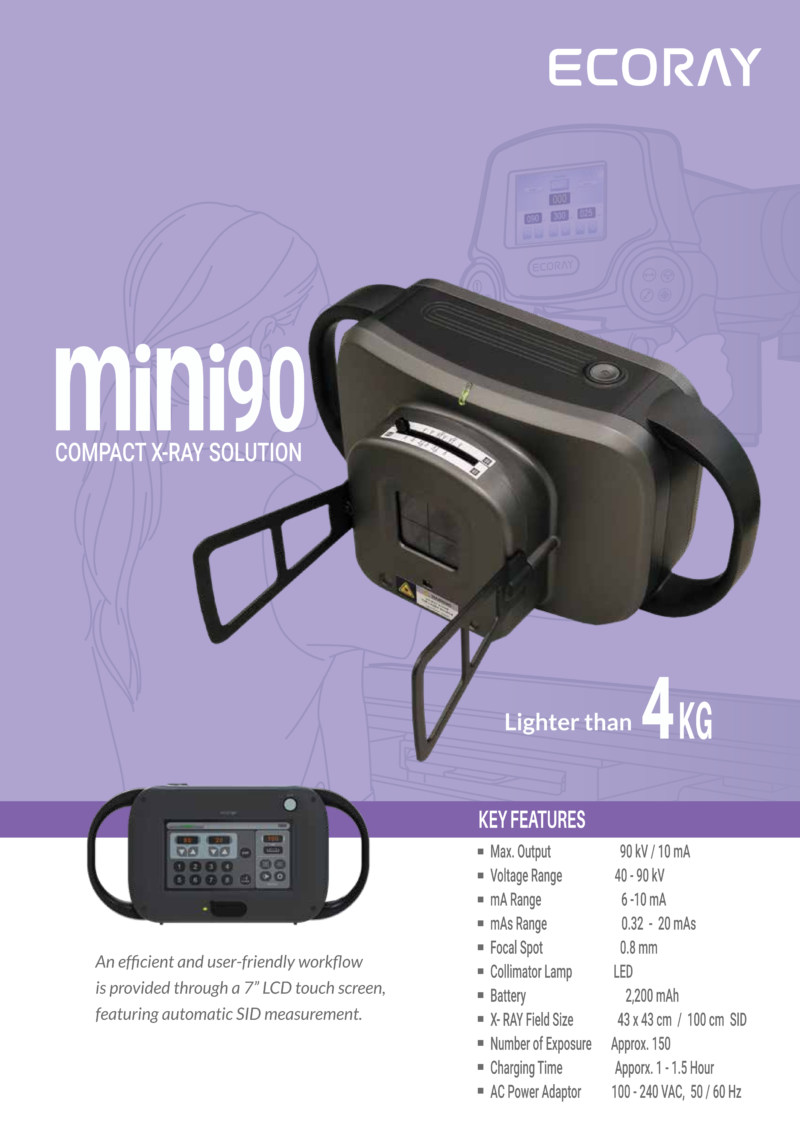

Key Features

• Weighs only 4 kg — among the lightest diagnostic X-ray sources in the veterinary handheld category
• Maximum output 90 kV / 10 mA tuned for small animal and exotic-pet diagnostic use
• kV range 40–90 kV, mA range 6–10 mA, mAs range 0.32–20 mAs
• 0.8 mm focal spot for sharp small-animal extremity and dental detail
• 7-inch LCD touchscreen with veterinary APR for fast per-patient setup
• Automatic SID measurement — eliminates manual technique recalculation per shot
• LED collimator lamp clearly delineates X-ray field for accurate positioning
• X-ray field size 43 × 43 cm at 100 cm SID covers most small-animal anatomy
• Built-in 2,200 mAh battery — ~150 exposures per charge, 1–1.5 hour recharge
• 100–240 VAC, 50/60 Hz universal adapter for global power use
• Compatible with wireless flat-panel detectors and integrated acquisition software for full DR workflow

Technical Specifications

Clinical Applications

• Small animal in-clinic radiography where space is limited
• Exotic-pet imaging (avian, reptile, small mammal) requiring precise positioning
• Mobile clinic and house-call veterinary services
• Dental imaging for canine, feline, and exotic patients
• Tripod-mounted chest imaging for standing small animals

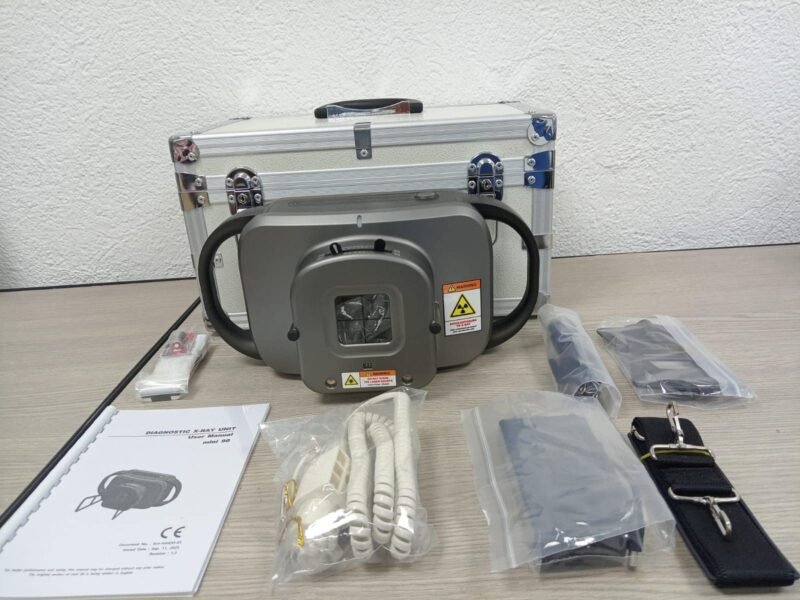

Package Contents

• 1 × IWA-DX01 handheld X-ray unit (battery installed)
• 1 × AC power adapter (100–240 VAC)
• 1 × Spare battery (optional)

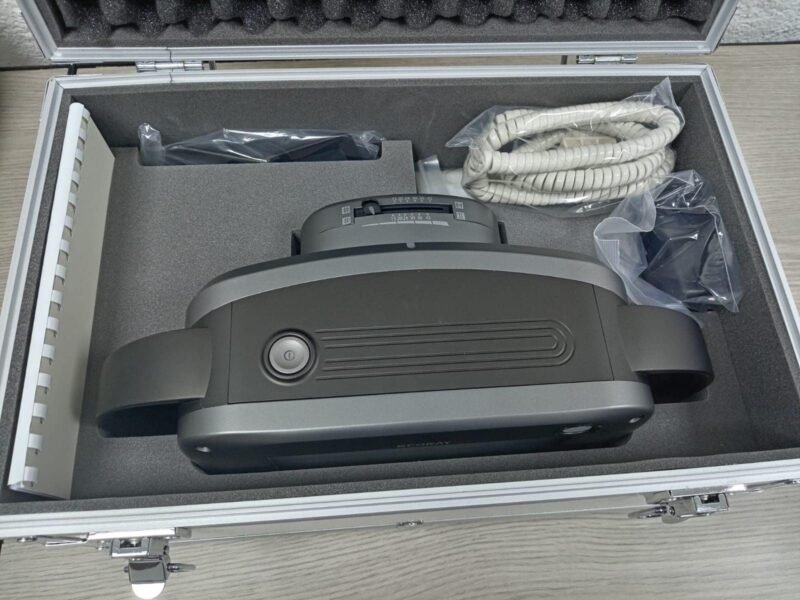

• 1 × Carrying case
• 1 × Carrying strap
• 1 × User manual
• 1 × Warranty certificate
• Optional: tripod stand for chest X-ray work
• Optional: wireless flat-panel detector
• Optional: lead protective set

Why Choose IWA-DX01

• 4 kg weight enables one-hand operation without operator fatigue across a full day of exposures
• Automatic SID measurement removes the most common cause of underexposed/overexposed shots
• Built-in battery + universal mains adapter — no operational compromise between field and clinic
• 7-inch touchscreen UI is familiar to staff trained on benchtop iFlex models
• Pairs natively with wireless flat-panel detectors for a complete handheld DR workflow

Warranty & Support

1-year manufacturer warranty on hardware and software. Battery covered as a consumable under standard 6-month terms. Iwamed provides remote diagnostics, calibration, and spare parts logistics.

Frequently Asked Questions

Is the IWA-DX01 strong enough for canine thoracic imaging?

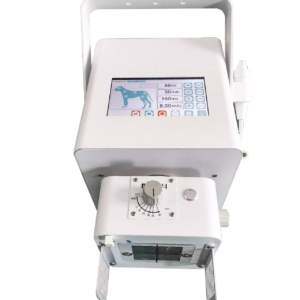

Yes for small-to-medium canine and feline thoracic studies at standard SID. For very large dogs or thick lateral abdominal projections, a benchtop iFlex-5/8 or higher-power unit is more appropriate.

How does it differ from the iFlex-1800?

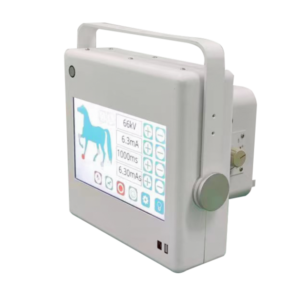

IWA-DX01 is a true handheld (4 kg) with 7-inch touchscreen and auto SID — designed for small animal and exotic clinic use. iFlex-1800 is a 9 kg field handheld with higher 1.8 kW output, tuned for equine and large-animal distal-limb work.

Can the battery be replaced in the field?

Yes — the battery pack is removable. We recommend customers maintain a charged spare for continuous operation.

Does it require operator certification?

Local regulations vary. Always confirm radiation safety training and licensing requirements with regional authorities before deployment.

Will it pair with any DR detector?

It is designed to integrate with standard wireless 14 × 17 inch veterinary flat-panel detectors. Compatibility should be confirmed with the detector vendor’s trigger spec.
