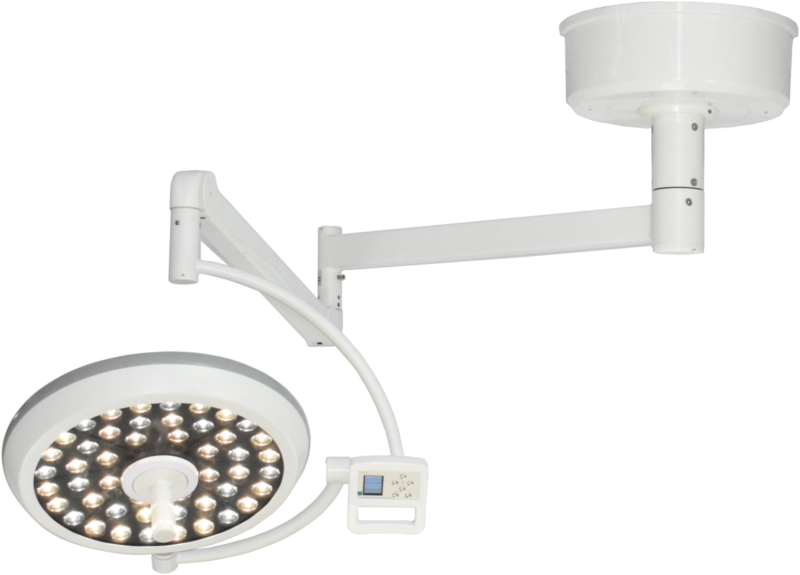

Name: LED500 Single-Head Ceiling Surgical Light (IWA-SL10)
SKU: IWA-SL10
Availability: InStock

Single-head ceiling LED surgical light — LED500, 30,000–160,000 Lux, ≥50,000 h LED life.

Product Overview

IWA-SL10 is a single-head ceiling-mount LED500 surgical light with adjustable color temperature, CRI, and continuous brightness. Compact option for smaller OR and procedure rooms.

Key Features

Long-life LED light source (≥80,000 h typical) with low operative-field heat rise
Adjustable color temperature 3700–5000 K and adjustable CRI 85–98 — tissue color rendering tunable per procedure
Continuously adjustable brightness 1%–100% via touch-panel control
AC 100–240V 50/60Hz universal mains input
Surgeon head-temperature rise <1°C across the working envelope — minimizes surgeon fatigue under sustained illumination

Technical Specifications

Illuminance	30,000–160,000 Lux
Color temperature	3700–5000 K (adjustable)
CRI	85–98 (adjustable)
Focus depth	≥1200 mm
Spot diameter	160–280 mm (adjustable)
Brightness	1%–100% continuous
LED life	≥50,000 h
Power supply	AC 100–240V 50/60Hz
Head temp rise	<1°C

Clinical Applications

General canine, feline, equine and exotic surgical workflow
Soft-tissue, orthopedic, and dental surgery

Package Contents

Light head with LED / bulb module pre-installed
Single articulated spring-balanced arm assembly
Ceiling mount canopy and mounting plate
AC power cable and IEC mains plug
Control panel / dimmer unit
Operating manual and warranty documentation

Why Choose IWA-SL10

LED500 family head matched to procedure scale and budget
Adjustable color temperature, CRI and brightness for tissue color rendering control
<1°C surgeon head-temperature rise — comfortable under sustained illumination
Spring-balanced articulated arm holds position without drift

FAQ

What surgical procedures is this light rated for? Veterinary general surgery, soft-tissue, orthopedic, dental, and ophthalmic procedures. Spot diameter and brightness are sized for canine, feline, equine, and exotic patient OR workflows.

Can the bulb / LED module be replaced in field? Yes. LED modules and ZF bulb assemblies are field-replaceable. Replacement bulbs and LED modules are stocked as service parts.

How is the light arm balanced — does it drift? Spring-balanced multi-joint arm with friction clutches at each joint. Once positioned, the arm holds without drift across the working envelope.
