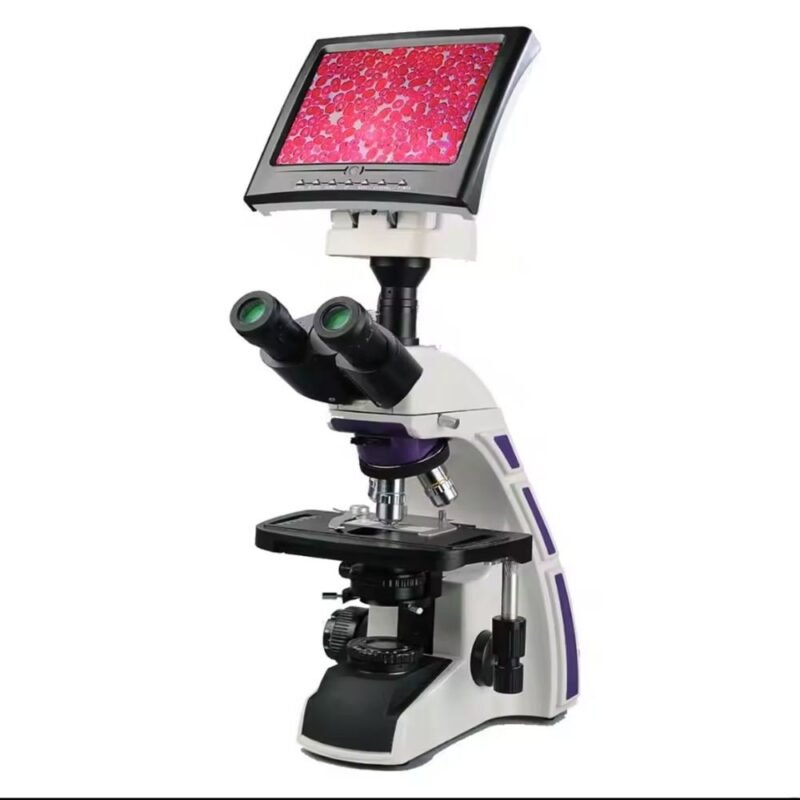

Veterinary trinocular biological microscope with built-in LCD display and integrated digital camera — observe through eyepieces or the on-board screen, no PC required.
Product Overview

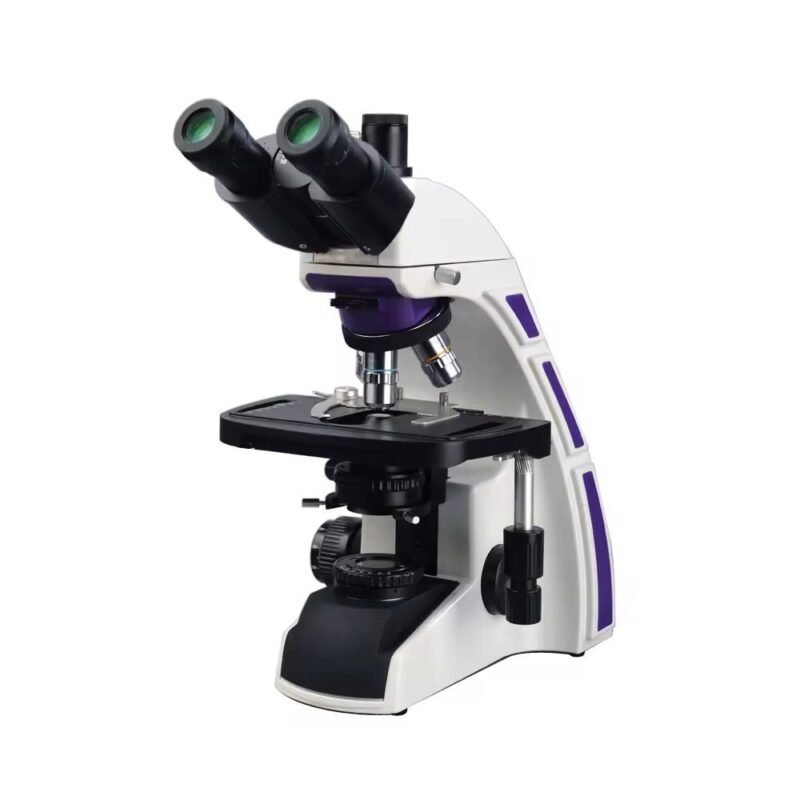

IWA-MIC102 is a trinocular biological microscope with an integrated LCD display and built-in digital camera. Observe specimens through binocular eyepieces or directly on the on-board LCD — no external PC required. Captures still images and video for case records, telemedicine, and group teaching.
Key Features

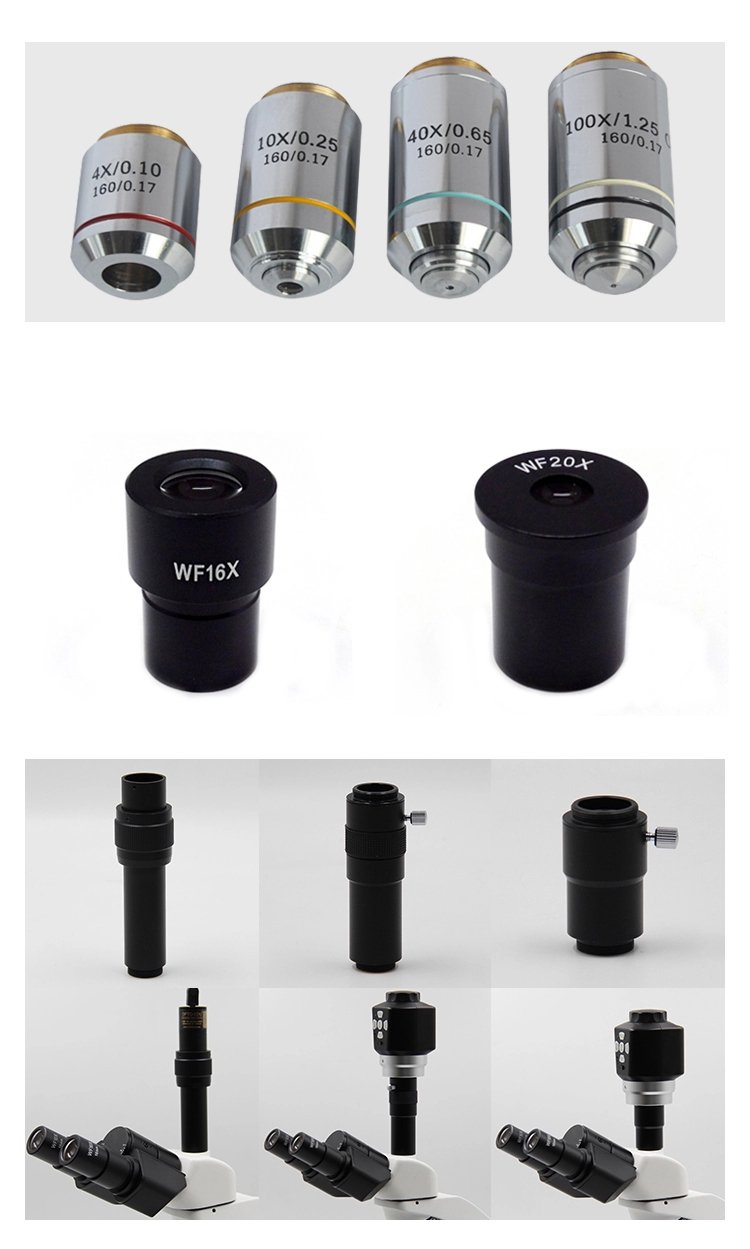

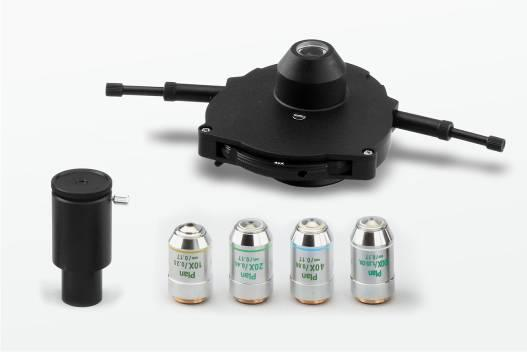

- Achromatic objectives (4×/10×/40×/100× oil) standard, with optional plan-achromat upgrade
- Wide-field WF10× eyepieces — high eye-relief, comfortable for prolonged sessions

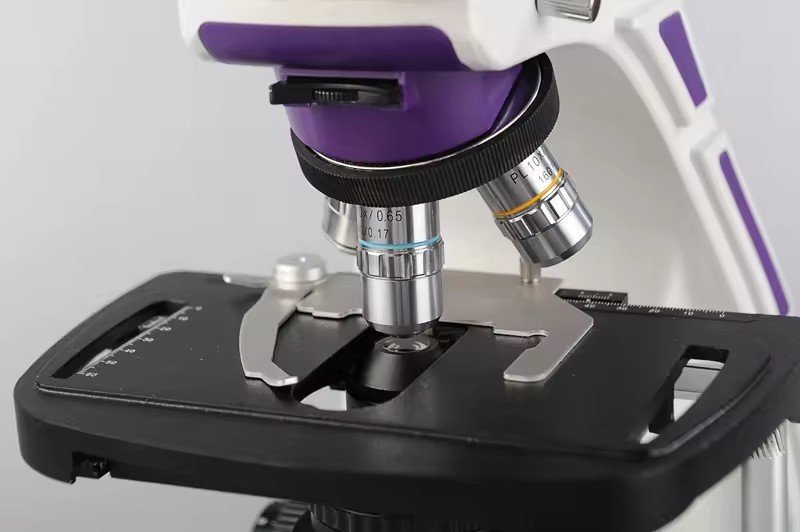

- Mechanical stage with X-Y micrometer-style fine controls and integrated specimen clip

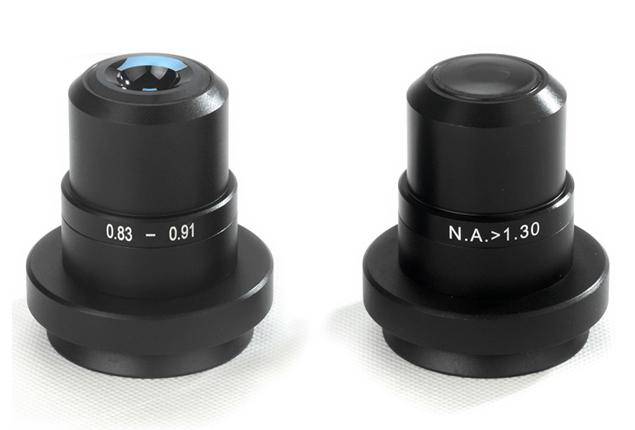

- Abbe condenser N.A. 1.25 with iris diaphragm for adjustable resolution and contrast

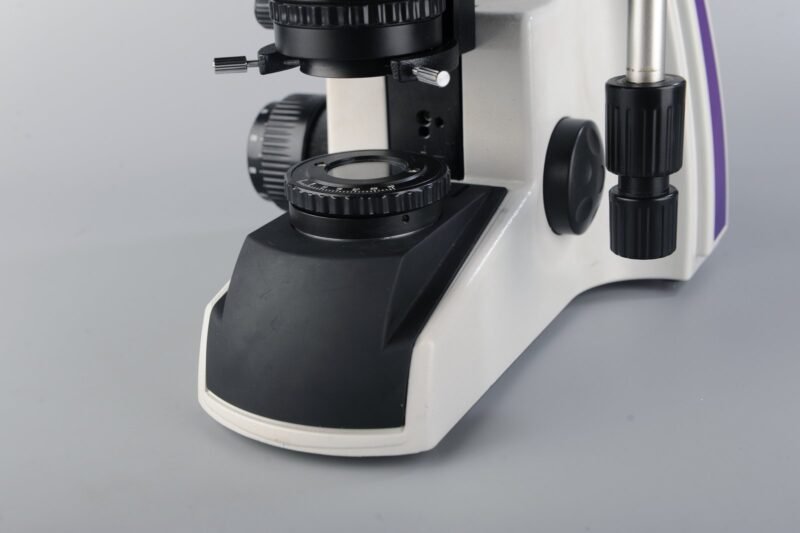

- Bright LED illumination — cool, low-heat operation; brightness intensity dial on base
- Coaxial coarse / fine focus knobs on both sides — symmetric ergonomics

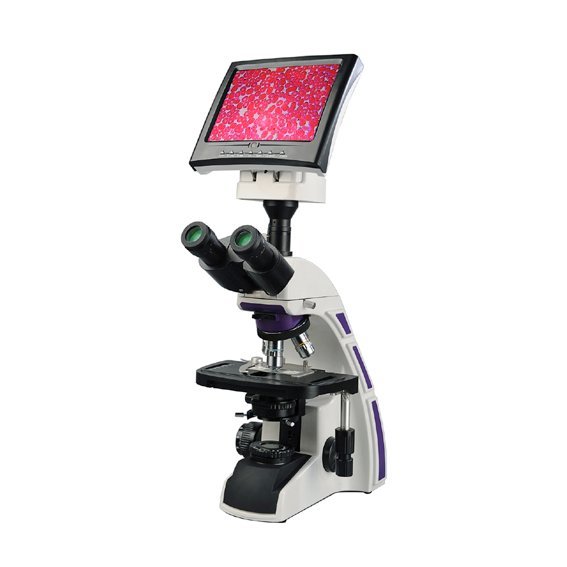

- Built-in LCD display for direct on-screen observation
- Integrated digital camera — still image and video capture

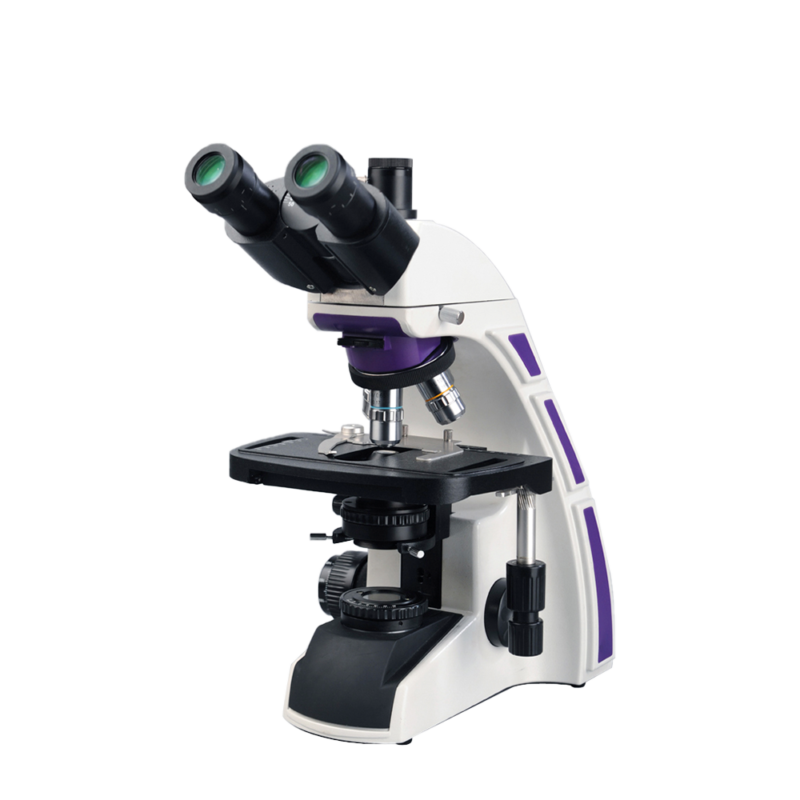

- Trinocular observation head — eyepieces, camera, and LCD all available
- Achromatic objectives (4× / 10× / 40× / 100× oil)
- WF10× eyepieces with wide field of view
- Mechanical X-Y stage and Abbe condenser with iris
- LED illumination with brightness dial
- Standalone operation — no PC or external monitor required for basic capture
Technical Specifications
| Observation tube | Trinocular, 30° inclined |
| Built-in display | LCD, integrated on observation head |
| Camera | Integrated digital, still + video |
| Objectives | Achromatic 4× / 10× / 40× / 100× oil |
| Eyepieces | WF10× |
| Stage | Mechanical X-Y |
| Condenser | Abbe N.A. 1.25 + iris diaphragm |
| Illumination | LED, brightness adjustable |
Clinical Applications
- Veterinary cytology with case record image capture
- Group teaching via large on-board LCD
- Telepathology consultation
- Microbiology, parasitology, urinalysis with image archive
Package Contents
- IWA-MIC102 trinocular microscope with built-in LCD and camera
- WF10× eyepieces × 2
- Immersion oil, dust cover, AC power cable
- User manual + camera quick-start guide
Why Choose IWA-MIC102
- Trusted optical platform for routine veterinary clinical microscopy
- LED illumination — cool, long-life, no bulb replacement hassle
- Robust mechanical stage and focus mechanism for daily clinic loading
- Standard eyepiece tube and objective thread — easy accessory upgrade
FAQ
Which veterinary cytology / histology slides does this microscope read? Routine veterinary cytology smears (FNA, ear cytology, urine sediment), histopathology slides, fecal flotation / direct smear, urinalysis sediment, and hematology (Diff-Quik / Wright-Giemsa stained) workflow.
How long does the LED last, and what happens when it fails? Rated at 20,000 hours under normal use — roughly seven years at eight hours a day. Replacement is a service operation; contact us rather than opening the base.
Can objectives or eyepieces from another microscope be fitted? Tell us the make and model you want to fit and we will confirm compatibility before you order. Thread standard and tube length have to match — an objective that does not match will not come to focus, so this is worth checking rather than assuming.
