VCN2 Veterinary Compressor Nebulizer

Product Overview

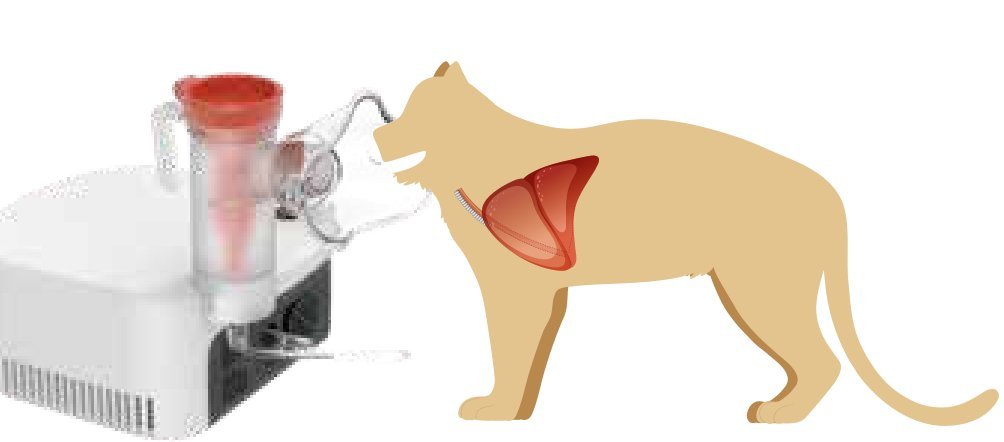

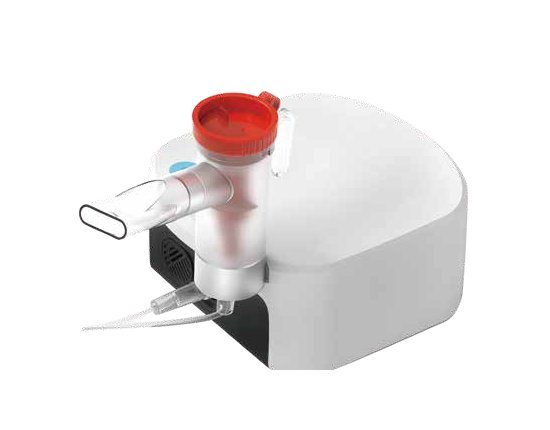

The VCN2 is a compressor (jet) nebulizer for veterinary respiratory therapy. An oil-free lubricated piston pump drives the nebulizer cup at 60–130 kPa, producing a mist with a mass median diameter of 4 µm ± 25% that reaches the trachea, bronchi, and alveoli.

A maximum nebulization rate of 0.2 mL/min, residual volume of ≤ 1.0 mL, and ≤ 60 dB(A) operating noise suit in-clinic and ward aerosol therapy. Species-appropriate face masks and a grid cooling design support repeated treatment sessions throughout the day.

Key Features

• Fine aerosol: 4 µm ± 25% MMD for deposition in the lower respiratory tract
• Stable, continuous mist output at up to 0.2 mL/min for even dosing
• Oil-free lubricated piston pump — clean compressed air and extended pump service life
• Low noise: ≤ 60 dB(A) to limit patient stress during treatment
• Low residual volume: ≤ 1.0 mL of medication left in the cup
• Compatible with a range of nebulizable medications; no water added to the cup

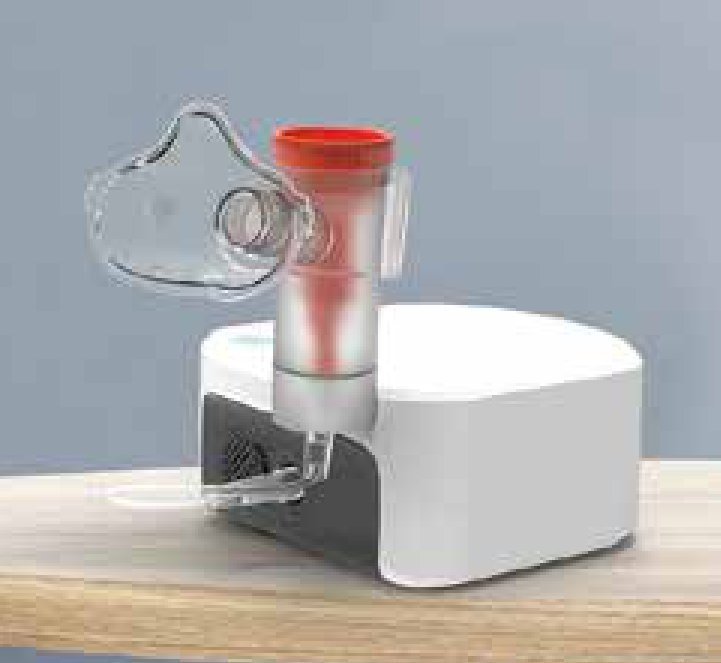

• Animal face masks in skin-friendly, odor-free material that can be disinfected daily
• Grid cooling design for stable operation across repeated daily sessions

Visual Evidence & Media

Technical Specifications

Clinical Applications

• Aerosol therapy for upper and lower respiratory tract disease in canine and feline patients
• Delivery of nebulized bronchodilators, mucolytics, and antimicrobials as prescribed by the clinician
• Airway humidification and supportive respiratory care for hospitalized patients
• Repeated scheduled nebulization sessions in the ward and isolation unit

Workflow & Operating Notes

• Fill the nebulizer cup with the prescribed medication; no water is added to the cup
• Connect the cup to the compressor with the air tube and fit the appropriate face mask
• Run continuously for the treatment session; the grid cooling design supports repeated sessions through the day
• Disinfect the face mask after each patient; the mask material tolerates daily disinfection
• Do not operate in the presence of flammable anesthetic gas mixtures

Package Contents

• 1 × VCN2 compressor nebulizer main unit
• Nebulizer cup and air tubing
• Animal face mask(s)

Downloads & Documentation

Product brochure and user manual are available on request — contact our sales team.

Why Choose the VCN2

• Workflow efficiency: compact 15 × 15 × 9 cm unit sets up in the consult room or ward with a single cup-and-mask connection
• Clinical accuracy: 4 µm MMD particles and stable output support consistent drug deposition in the lower airways
• Practice economics: ≤ 1.0 mL residual volume reduces medication waste, and the oil-free pump extends service life

Warranty & Support

Warranty terms for the main unit are confirmed at the time of order. Probes, cuffs, cables and other accessories follow standard wear-item terms.

Frequently Asked Questions

What particle size does the VCN2 produce?

A mass median diameter of 4 µm ± 25%, suitable for deposition in the trachea, bronchi, and alveoli.

How fast does it nebulize?

Up to 0.2 mL/min, with ≤ 1.0 mL residual medication in the cup.

Which medications can be nebulized?

The VCN2 is compatible with a variety of nebulizable drugs. Drug selection and dose remain at the clinician’s discretion.

Can it be used alongside inhalation anesthesia?

It must not be operated in the presence of flammable anesthetic gas mixed with air, oxygen, or nitrous oxide.

Is it suitable for repeated daily use?

Yes. The oil-free piston pump and grid cooling design support continuous operation across repeated treatment sessions.
