Handheld 4-inch touch-screen vital signs monitor with configurable SpO2, NIBP and ETCO2 for point-of-care monitoring across the clinic.
Product Overview

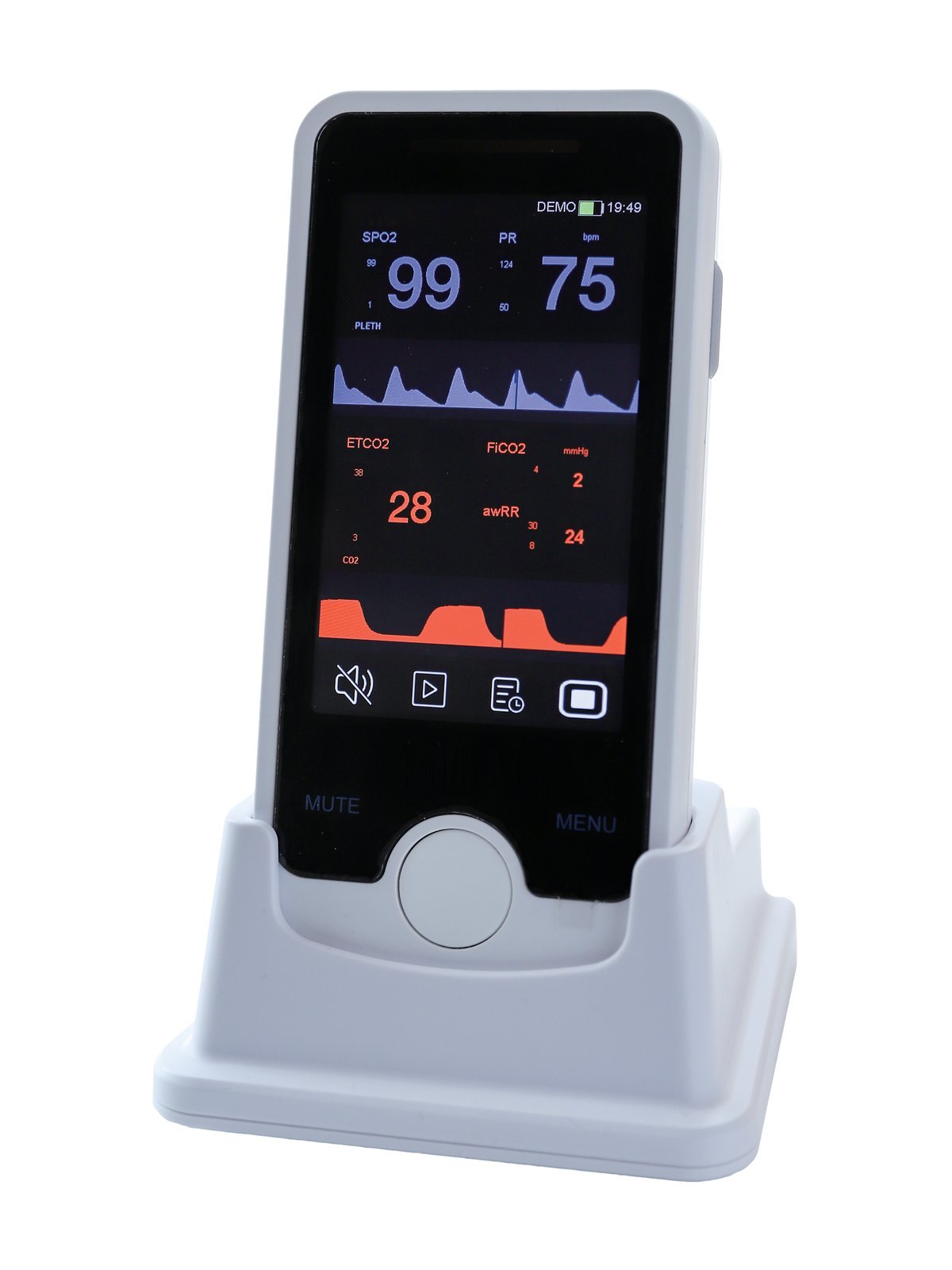

The VE4 is a handheld veterinary vital signs monitor built around a 4-inch high-definition TFT touch screen in a 155.5 × 73.5 × 29 mm body. SpO2 and pulse rate are standard; NIBP or ETCO2 is added according to the selected configuration, so each unit matches the station it serves — triage, induction, recovery or transport.
A built-in 2000 mAh lithium battery supports at least 5 hours of continuous SpO2 monitoring, and the charging base doubles as a desk stand. Real-time data storage, historical review and trend graphs keep the patient record available at the point of care.
Key Features
- 4-inch TFT high-definition touch screen with values and waveforms
- Configurable parameter set: SpO2 + PR standard, with NIBP or ETCO2 by configuration
- Manual and automatic measurement modes
- 2000 mAh lithium battery: at least 5 hours of continuous SpO2 monitoring
- Charging base plus direct charging socket for flexible charging
- Real-time data storage with historical data and trend-graph review; up to 500 stored records

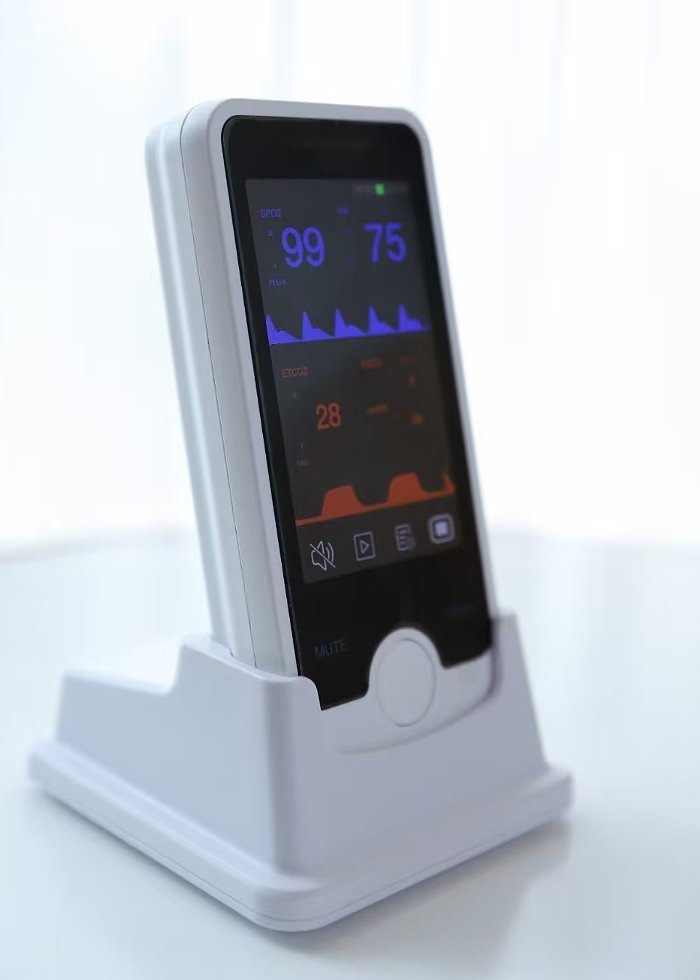

- Handheld 155.5 × 73.5 × 29 mm body for point-of-care use and patient transport
Configuration Versions
| Configuration | SpO2 | Pulse Rate | NIBP | ETCO2 | Typical Use |
|---|---|---|---|---|---|
| VE4A | ✓ | ✓ | — | — | Oxygenation spot-checks, triage, recovery |
| VE4B | ✓ | ✓ | — | ✓ | Ventilation monitoring during anesthesia and sedation |
| VE4C | ✓ | ✓ | ✓ | — | Blood pressure and oxygenation in consult, ward and recovery |
All configurations share the same 4-inch touch-screen handheld unit and charging base. Specify the configuration when ordering.
Visual Evidence & Media
Technical Specifications
| Display | 4-inch TFT high-definition touch screen |
| Parameters | SpO2, PR (standard); NIBP or ETCO2 by configuration |
| SpO2 Range | 0–100%; resolution 1% |
| SpO2 Accuracy | 70–100%: ±4% |
| Pulse Rate | 30–240 bpm; resolution 1 bpm; accuracy ±3 bpm |
| NIBP (VE4C) | Manual and automatic modes; measuring range and accuracy [TBC] |

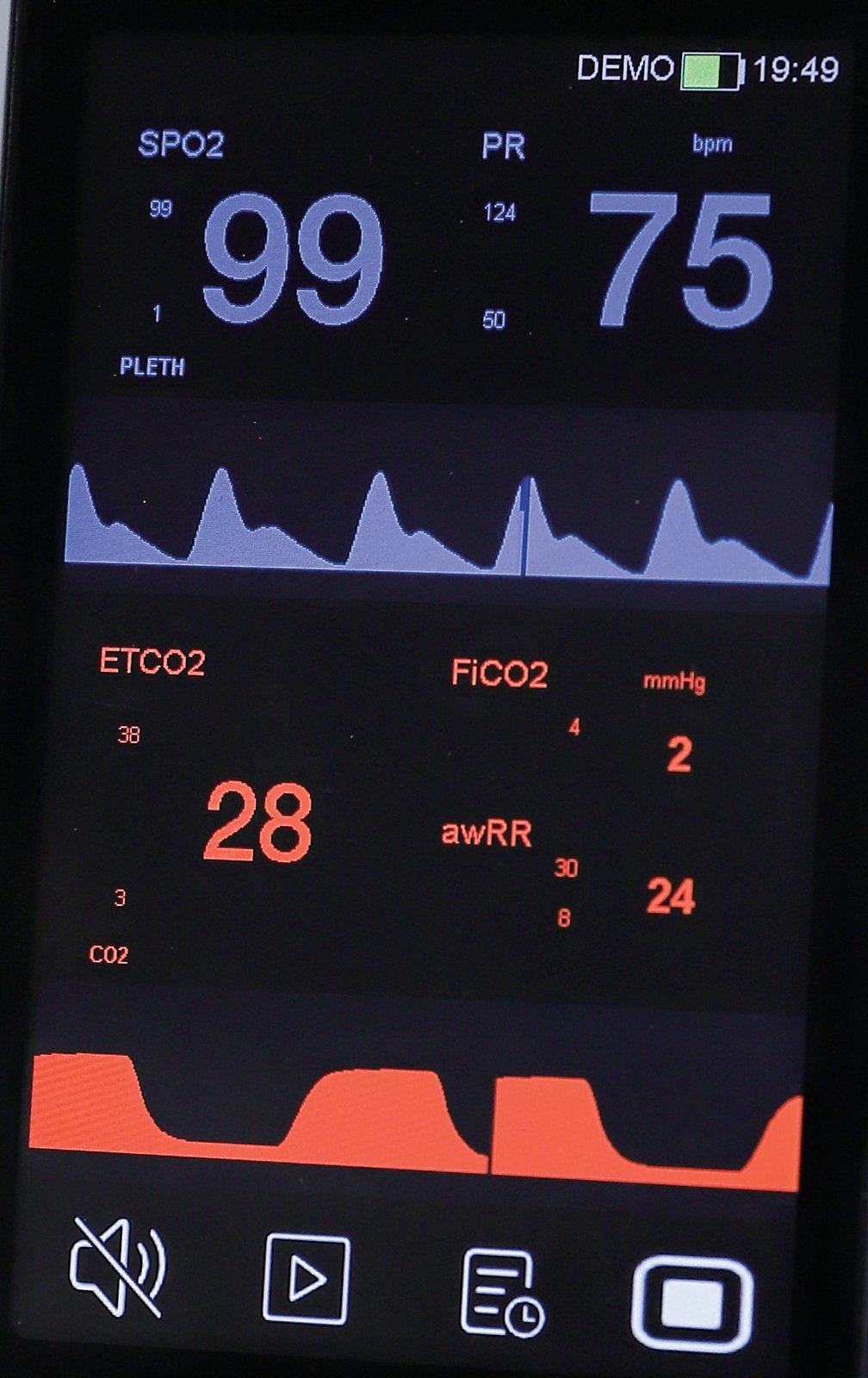

| ETCO2 (VE4B) | Sidestream; displays ETCO2, FiCO2 and airway respiration rate with capnogram; range and accuracy [TBC] |
| Data Storage | Up to 500 records; historical data and trend graphs |
| Battery | Built-in lithium, 3.7 V, 2000 mAh; ≥5 h continuous SpO2 monitoring |
| Charger | Input 110–220 V, 50 / 60 Hz; output 5 VDC, 2.0 A |
| Charging | Charging base or direct charging socket |
| Dimensions | 155.5 × 73.5 × 29 mm |
| Weight | [TBC] |
| Packaging (single unit) | 263 × 255 × 190 mm; 1.16 kg |
Clinical Applications
- Pre-anesthetic SpO2 and blood pressure baseline in canine and feline patients (VE4C)
- Capnography during sedation, intubated anesthesia and recovery (VE4B)
- Oxygenation spot-checks and triage in emergency and respiratory cases (VE4A)
- Recovery-cage and ward monitoring where a full multi-parameter monitor is not required
- Patient transport between treatment, imaging and recovery areas on battery power
Workflow & Operating Notes

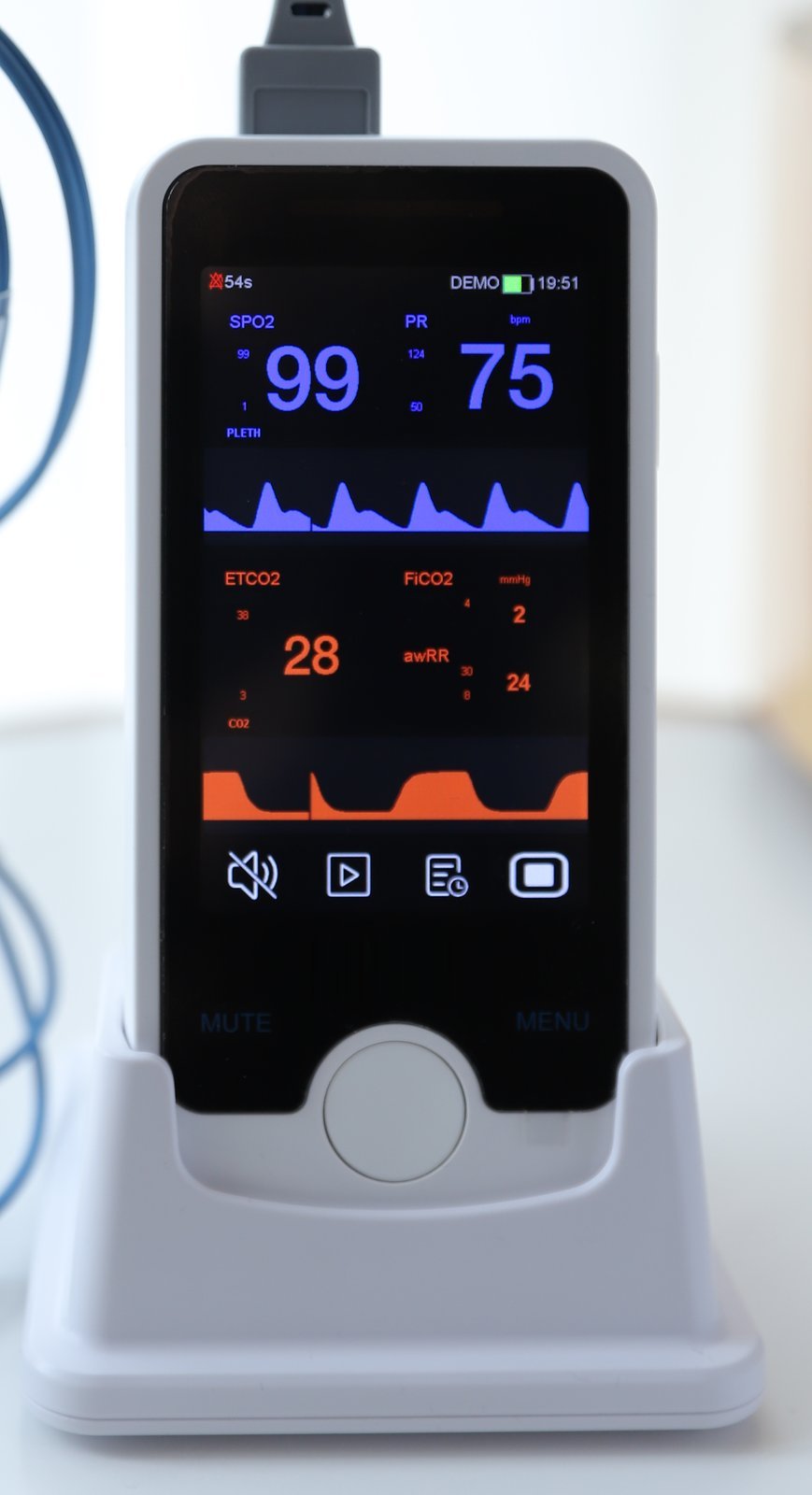

- Charge in the base or through the direct charging socket; the base also serves as a desk stand during monitoring
- Connect the SpO2 sensor to the top port; on VE4C connect the NIBP cuff via the extension hose
- Select manual or automatic measurement mode from the touch screen
- Use the review and trend functions to recall stored readings for the clinical record
Package Contents
- 1 × VE4 handheld monitor (VE4A / VE4B / VE4C as ordered)
- 1 × Charging base
- 1 × Power adapter and USB charging cable
- 1 × SpO2 sensor
- VE4C: NIBP cuffs and NIBP extension hose
- VE4B: ETCO2 accessories [TBC]
- 1 × User manual
Downloads & Documentation
Product brochure and user manual are available on request — contact our sales team.
Why Choose the VE4
- Workflow efficiency: a handheld unit that docks on the desk and travels with the patient, with touch-screen access to stored data and trends
- Clinical accuracy: dedicated SpO2 plus the parameter that matters for the station — NIBP for consult and ward, ETCO2 for anesthesia
- Practice economics: configure only the parameters each station needs instead of placing a full multi-parameter monitor at every point of care
Warranty & Support
Warranty terms for the main unit are confirmed at the time of order. Probes, cuffs, cables and other accessories follow standard wear-item terms.
Frequently Asked Questions
- What is the difference between VE4A, VE4B and VE4C?
- All three share the same handheld unit. VE4A measures SpO2 and pulse rate; VE4B adds ETCO2; VE4C adds NIBP.
- How long does the battery last?
- The 2000 mAh lithium battery supports at least 5 hours of continuous SpO2 monitoring.
- Can NIBP be measured automatically?
- Yes. The VE4C supports both manual and automatic measurement modes.
- How is the unit charged?
- Through the charging base or the direct charging socket, using the 5 VDC 2.0 A adapter.
- Which species is it intended for?
- The VE4 is designed for veterinary use, primarily in canine and feline patients.
