A 14-inch slim-profile veterinary monitor with ST analysis, waveform recall and wired or wireless central monitoring for ICU, theatre and multi-bed wards.
Product Overview

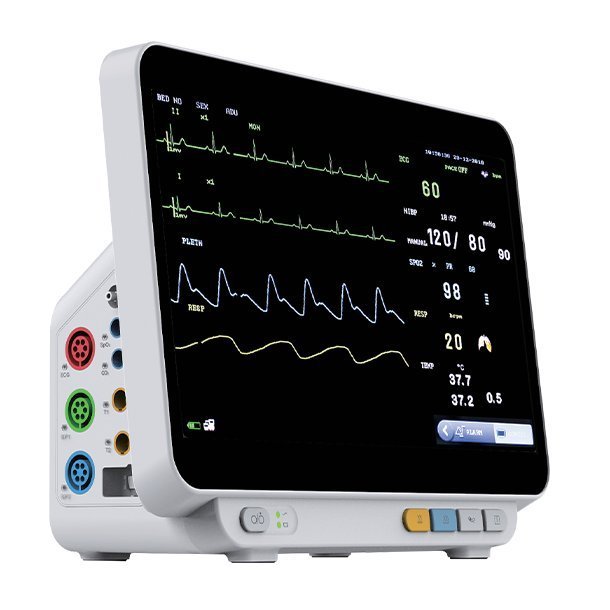

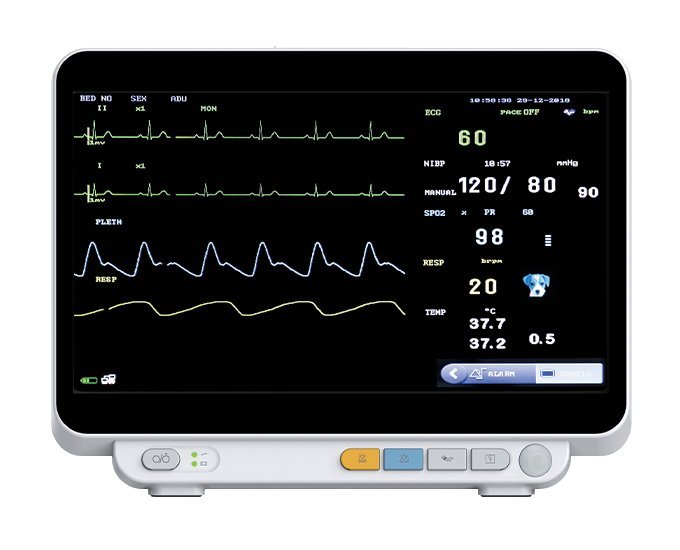

The VM14Pro places a 14-inch color LCD in a streamlined chassis only 99 mm deep, giving a wide waveform area for stations that are read from across the room. ECG, HR, PR, SpO2, NIBP, RESP and TEMP are standard, with multi-channel waveform display, ST-segment analysis and ECG waveform recording and recall.
The monitor connects to a central monitoring system over wired or wireless networks, retains data through power loss, and resists defibrillation and electrosurgical interference. A built-in lithium battery provides approximately 4 hours of emergency operation. ETCO2, dual-channel IBP, an enhanced SpO2 module, a built-in recorder, a touch screen and trolley or wall mounting are available as options.
Key Features
- 14-inch color LCD; touch screen optional
- Slim 336 × 262 × 99 mm chassis at 4 kg
- Standard ECG, HR, PR, SpO2, NIBP, RESP and TEMP
- Multi-channel waveform display with ST-segment analysis
- ECG waveform recording and recall for retrospective review

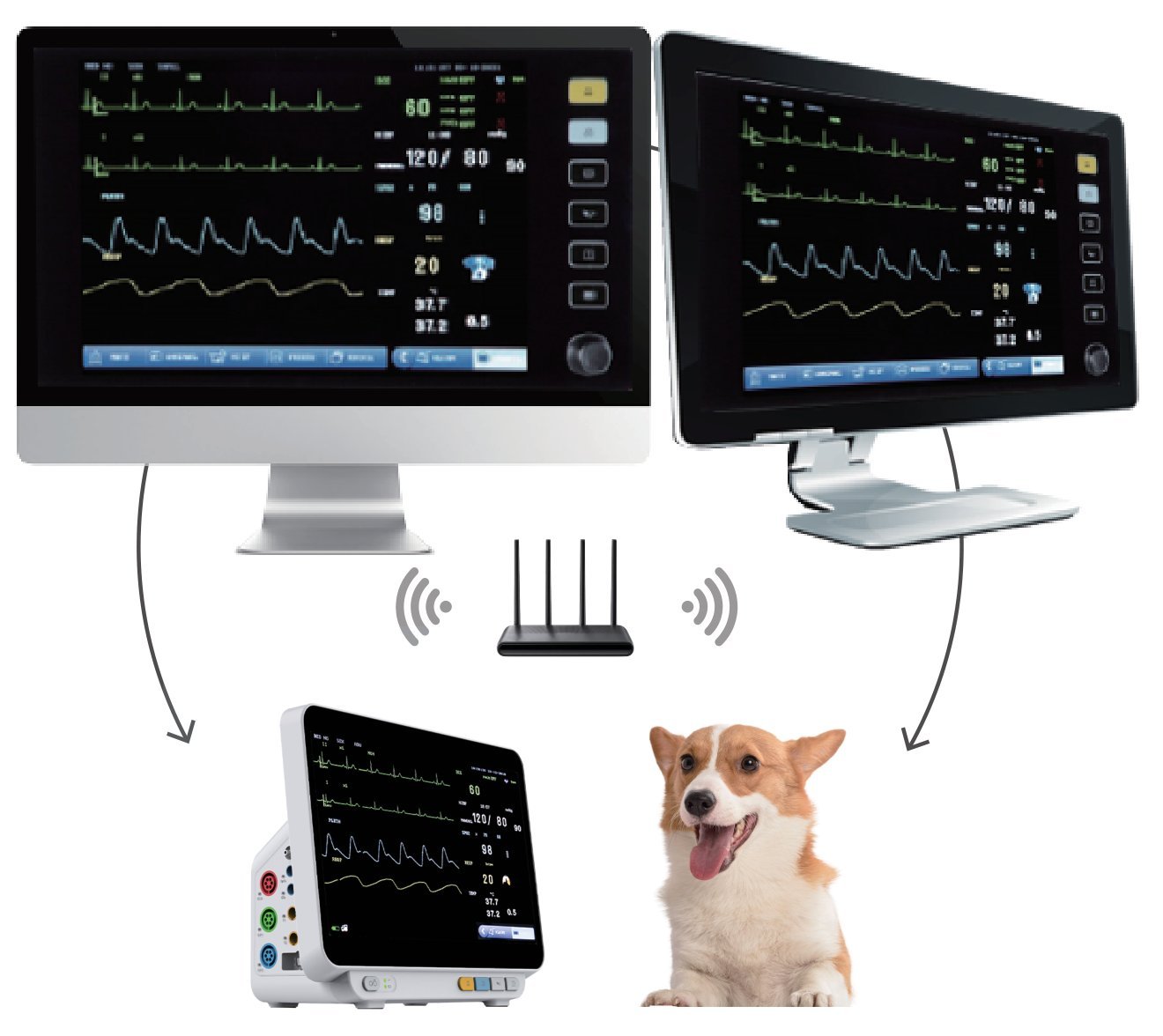

- Wired or wireless central monitoring system connection
- Data retention on power loss; built-in lithium battery with approximately 4 hours of emergency operation
- Defibrillation and electrosurgical-interference protection; configurable audible and visual alarms
- Optional ETCO2, dual-channel IBP, enhanced SpO2 module and built-in recorder
Visual Evidence
Technical Specifications
| Display | 14-inch color LCD; touch screen optional |
| Standard Parameters | ECG, PR, TEMP, RESP, NIBP, SpO2, HR |
| Optional Parameters | ETCO2, dual-channel IBP, enhanced SpO2 module |
| Optional Configuration | Built-in recorder; touch screen; trolley or wall bracket; central monitoring system (wired or wireless) |
| Heart Rate (ECG) | 15–300 bpm; accuracy ±1% or ±1 bpm, whichever is greater; resolution 1 bpm |
| Respiration | 0–120 BrPM; accuracy ±2 BrPM; resolution 1 BrPM |
| NIBP Pulse Rate Range | 40–240 bpm |
| SpO2 | 0–100%; resolution 1%; accuracy ±2% (70–100%), not defined 0–69% |
| Temperature | 0–50 °C; resolution 0.1 °C; accuracy ±0.1 °C (excluding sensor error) |
| ETCO2 (Optional) | 0–19.7% (0–150 mmHg); mainstream or sidestream |
| IBP (Optional) | −50 to 300 mmHg |
| Power Supply | 100–240 V AC, 50/60 Hz; Pmax 70 VA; fuse 2AL 250 V |
| Battery | Built-in rechargeable lithium battery (single battery); approximately 4 hours; capacity [TBC] |
| Operating Environment | 0–40 °C; humidity ≤85% |
| Transport & Storage | −20 to 60 °C; humidity ≤93% |
| Dimensions | 336 × 262 × 99 mm |
| Net Weight | 4 kg |
| Packaging | 380 × 350 × 300 mm; gross weight 6 kg |
Clinical Applications
- ICU and critical-care bays where the display is read from a distance
- Theatre monitoring for canine and feline surgery, with optional ETCO2 and dual-channel IBP
- Multi-bed wards networked to a central station over wired or wireless links
- Cardiac monitoring with ST-segment analysis and ECG waveform recall
- Emergency and triage use on battery power during mains interruption
Workflow & Installation Notes
- Universal 100–240 V AC, 50/60 Hz input; built-in battery maintains monitoring during transfer or power loss
- Data is retained when power is lost, so trends continue after restart
- Connect to the central monitoring system by cable or wireless network
- 99 mm chassis depth suits wall-bracket mounting in space-limited ICU bays; trolley mounting also available
- Operate within 0–40 °C and ≤85% humidity
Package Contents
- 1 × VM14Pro monitor main unit
- 2 × SpO2 probes
- 5 × NIBP cuffs
- 1 × NIBP extension tube
- 1 × ECG lead cable
- 1 × Temperature sensor
- 1 × Power cord
- 1 × Grounding cable
- 1 × Lithium battery
- 1 × User manual
Downloads & Documentation
Product brochure and user manual are available on request — contact our sales team.
Why Choose the VM14Pro
- Workflow: the 14-inch display lets staff read waveforms and alarms from across the ward without approaching the patient
- Workflow: wired or wireless central monitoring consolidates multiple beds for one nurse
- Clinical accuracy: ST-segment analysis and ECG waveform recall support retrospective review of arrhythmic events
- Clinical accuracy: defibrillation and electrosurgical-interference protection keep monitoring continuous in theatre
- Practice economics: slim wall-mountable chassis frees bench space in ICU bays; options are added only as required
Warranty & Support
Warranty terms for the main unit are confirmed at the time of order. Probes, cuffs, cables and other accessories follow standard wear-item terms.
Frequently Asked Questions
- Is the touch screen standard?
- No. The touch screen is an ordering option on the VM14Pro.
- Can it connect to a central station wirelessly?
- Yes. The VM14Pro supports both wired and wireless connection to a central monitoring system.
- What happens to patient data if power is lost?
- Data is retained through power loss, and the built-in battery provides approximately 4 hours of emergency operation.
- What mounting options are available?
- The monitor can sit on a bench or be mounted on the optional trolley or wall bracket.
- How does the VM14Pro differ from the VM12?
- The VM14Pro has a larger 14-inch display in a slimmer 99 mm chassis, an optional touch screen, ST-segment analysis and wireless central monitoring. The VM12 uses a 12.1-inch key-and-knob interface.
