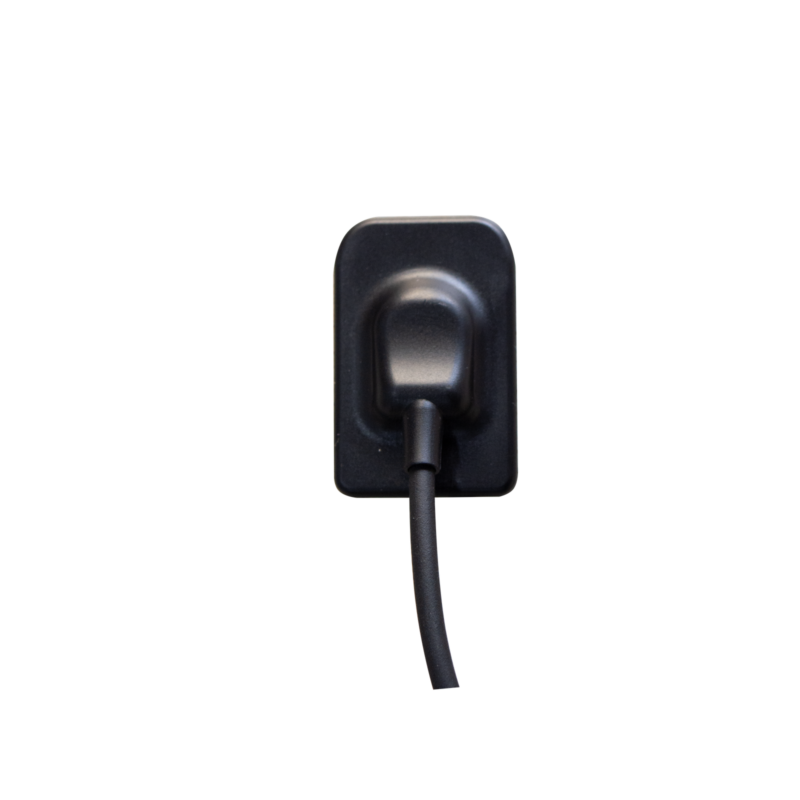

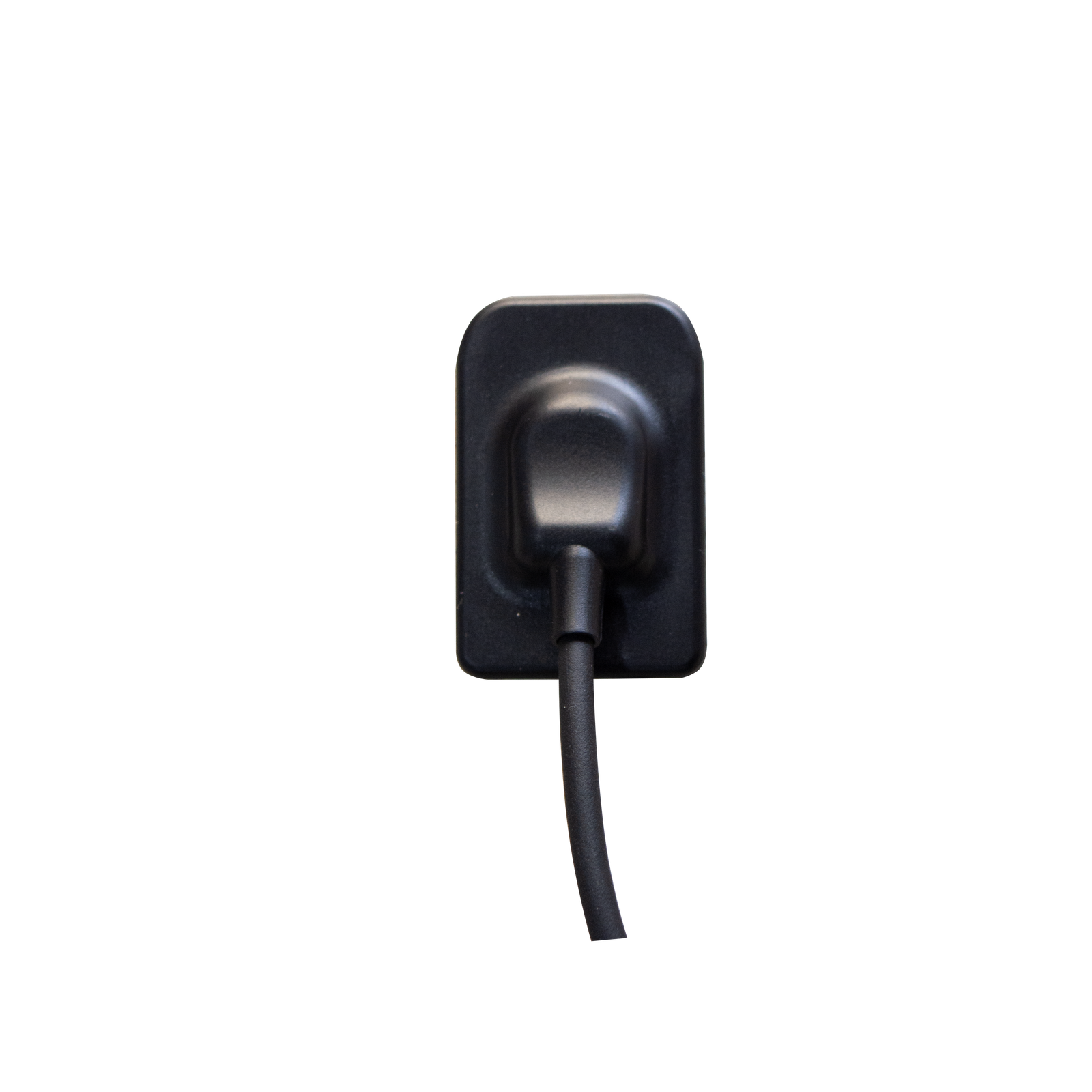

IDEN-DR01 Intraoral DR Sensor

Intraoral DR sensor — CMOS + CsI scintillator, 25 LP/mm spatial resolution, IPX7 waterproof housing, USB 2.0 plug-and-play, three size options.

Product Overview

IDEN-DR01 is a intraoral dr sensor — cmos + csi scintillator, 25 lp/mm spatial resolution, ipx7 waterproof housing, usb 2.0 plug-and-play, three size options. Suited for veterinary intraoral dental radiography for canine, feline, and exotic small mammals, endodontic workflow — root canal length determination and post-treatment verification.

Key Features

Three size options — Size 0 (20 × 30 mm), Size 1 (25 × 30 mm), Size 2 (26 × 36 mm) — chosen at order time to match patient anatomy and clinical workflow.
25 LP/mm spatial resolution with CMOS image sensor + CsI scintillator for high-density and high-spatial-detail capture.
Intelligent AED (auto exposure detection) — compatible with virtually any X-ray generator without hard-wired sync.
USB 2.0 plug-and-play — 3 m cable, Windows XP / 7 and later.
IPX7 waterproof housing — full submersion-grade disinfection between patients to prevent cross-contamination.
Radiation lifetime 500 Gy — robust against accumulated exposure dose.
Ergonomic rounded shell — improves patient comfort and intraoral positioning.
Reinforced cable strain relief — bend-resistant cable junction for clinical durability.

Technical Specifications

Detector technology	CMOS image sensor + CsI scintillator
Available models	DiD2030 (Size 0) / DiD2530 (Size 1) / DiD2636 (Size 2)
Mechanical dimensions (Size 0)	25 × 37.2 × 5.1 mm
Mechanical dimensions (Size 1)	29.8 × 37.6 × 5.1 mm
Mechanical dimensions (Size 2)	31 × 43.8 × 5.1 mm
Effective area (Size 0)	20 × 30 mm
Effective area (Size 1)	25 × 30 mm
Effective area (Size 2)	26 × 36 mm
Pixel matrix (Size 0)	800 × 1200
Pixel matrix (Size 1)	1242 × 1484
Pixel matrix (Size 2)	1300 × 1800
Pixel size (Size 0)	25 × 25 µm
Pixel size (Size 1 / 2)	20 × 20 µm
Spatial resolution	25 LP/mm
Exposure mode	Intelligent AED / Preview mode
Radiation lifetime	500 Gy
Interface	USB 2.0
Cable length	3 m
Ingress protection	IPX7
Operating system	Windows XP / Windows 7 and later

Clinical Applications

Veterinary intraoral dental radiography for canine, feline, and exotic small mammals
Endodontic workflow — root canal length determination and post-treatment verification
Periodontal assessment — interdental bone level measurement
Trauma assessment — fracture line visualisation in tooth and supporting bone

Workflow

Plug the sensor into any USB 2.0 port — Windows recognises the device without driver installation. Position the sensor intraorally, expose with a standard dental X-ray unit, and the AED automatically captures the image as soon as exposure starts. Between patients, immerse the sensor (cable junction sealed to IPX7) in a non-corrosive surface disinfectant.

Package Contents

1 × IDEN-DR01 intraoral DR sensor (size selected at order)
3 m USB 2.0 cable (built-in)
1 × Acquisition software (USB / disc)
1 × Positioning aid kit
1 × User manual
1 × Quality certificate

Downloads

IDEN-DR01 product brochure (PDF)

Why Choose IDEN-DR01

Workflow efficiency — USB plug-and-play with AED auto-trigger; no driver install, no exposure sync wiring.
Clinical accuracy — 25 LP/mm and 20 µm pixel pitch (Size 1 / 2) resolve fine root canal anatomy.
Practice hygiene — IPX7 housing supports immersion disinfection, eliminating sleeve-only cross-contamination risk.
