IDEN-X3 Compact Portable Dental X-Ray Unit

Compact portable dental X-ray unit — 60 kV / 2 mA, non-pistol form factor, LCD control panel, 1.75 kg, three colour options.

Product Overview

IDEN-X3 Compact Portable Dental X-Ray Unit

IDEN-X3 is a compact portable dental x-ray unit — 60 kv / 2 ma, non-pistol form factor, lcd control panel, 1.75 kg, three colour options. Suited for veterinary intraoral dental radiography (canine / feline / exotic small mammals), chairside dental exam in mixed-practice clinics.

Key Features

60 kV / 2 mA high-frequency tube — strong penetration and short exposure time for sharp intraoral imaging.
LCD control panel — clear parameter display with simple button operation.
Non-pistol compact form factor — alternative ergonomic profile for operators who prefer two-handed grip stability.
1.75 kg lightweight chassis.
14.8 V / 2500 mAh Li-ion battery — cordless operation.
X-ray tube lifespan ~10,000 exposures.
99.9% high-purity lead shielding — radiation protection <0.25 mGy/h (loaded).
Auto-sleep protection — five layers of automatic protection / sleep when idle.
Three colour options.

Product Gallery

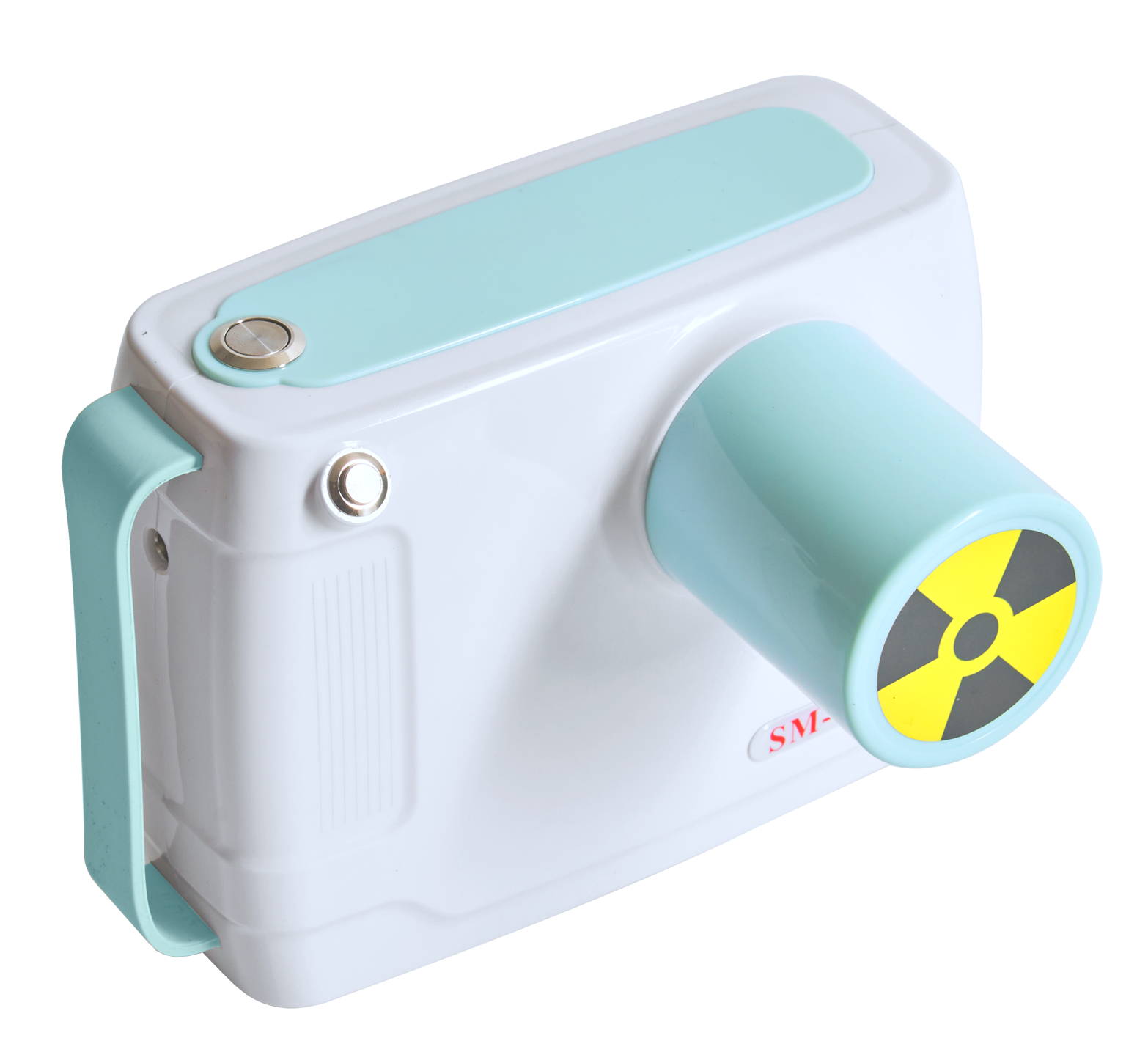

IDEN-X3 Compact Portable Dental X-Ray Unit — view 02

Visual Evidence

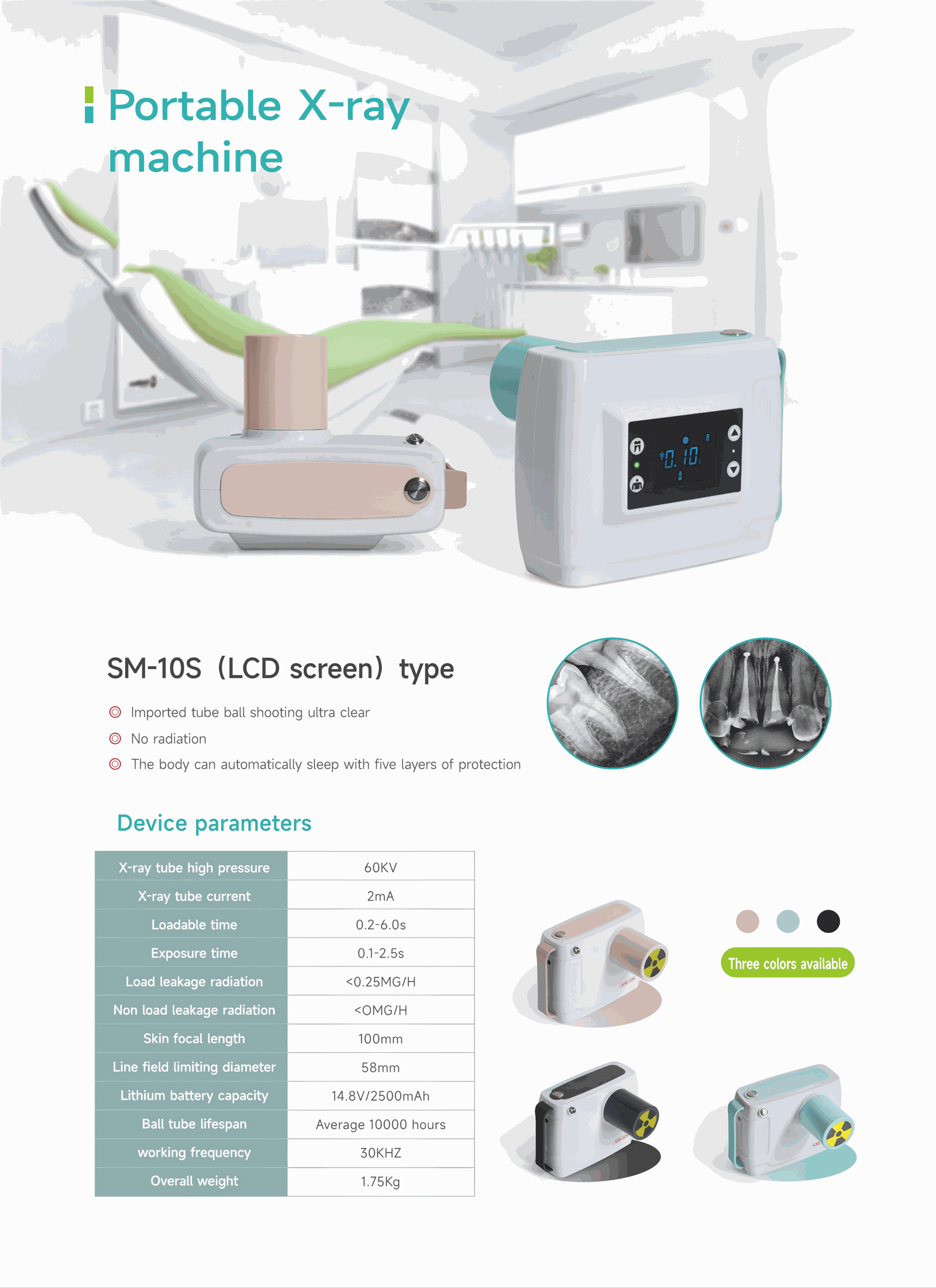

IDEN-X3 Compact Portable Dental X-Ray Unit — specification brochure

Technical Specifications

Tube voltage	60 kV
Tube current	2 mA
Working frequency	30 kHz
Loadable time	0.2 – 6.0 s
Exposure time	0.1 – 2.5 s
Skin focal length	100 mm
Line field limiting diameter	58 mm
Loaded leakage radiation	<0.25 mGy/h
Non-loaded leakage radiation	<0 mGy/h
Tube lifespan	Average 10,000 exposures
Battery	14.8 V / 2500 mAh Li-ion
Display	LCD screen
Form factor	Compact non-pistol
Whole-machine weight	1.75 kg
Colour options	3 colours

Clinical Applications

Veterinary intraoral dental radiography (canine / feline / exotic small mammals)
Chairside dental exam in mixed-practice clinics
Mobile / ambulatory veterinary dental services
Operator preference for two-handed grip over pistol-style handheld

Workflow

Set parameters on the LCD control panel. Position the unit at 100 mm skin focal length with the line field (58 mm diameter) aligned to the target tooth. Press the exposure key — the 60 kV / 2 mA tube delivers a controlled 0.1 – 2.5 s exposure. Five-layer auto-protection puts the unit into sleep mode when idle to preserve battery and tube life.

Package Contents

1 × IDEN-X3 portable dental X-ray unit
1 × Internal Li-ion battery (14.8 V / 2500 mAh)
1 × Power adapter / charger
1 × User manual
1 × Quality certificate

Why Choose IDEN-X3

Workflow efficiency — LCD display + button controls keep set-up simple, no touchscreen mis-tap risk with gloves.
Clinical accuracy — 60 kV / 2 mA tube and 100 mm skin focal length consistent across cases.
Field readiness — 1.75 kg lightweight chassis and cordless 14.8 V Li-ion battery for mobile rounds.
