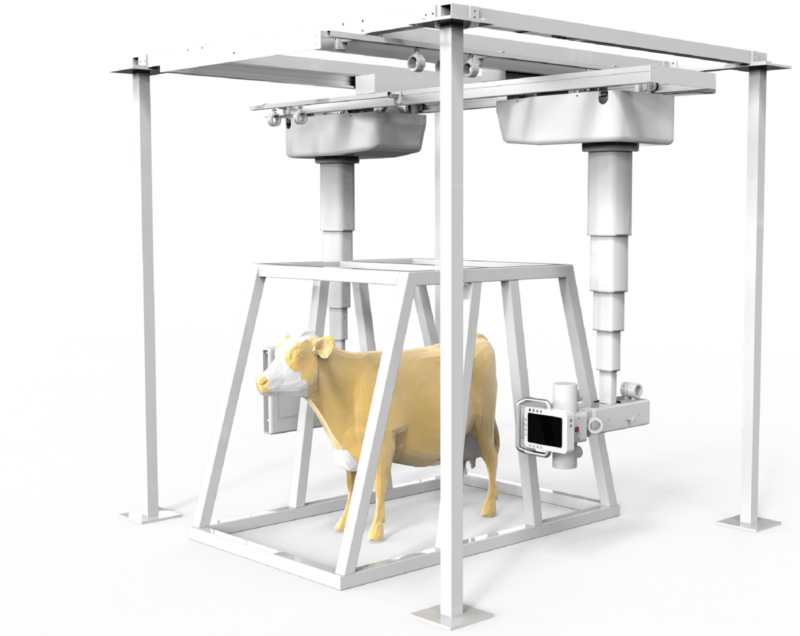

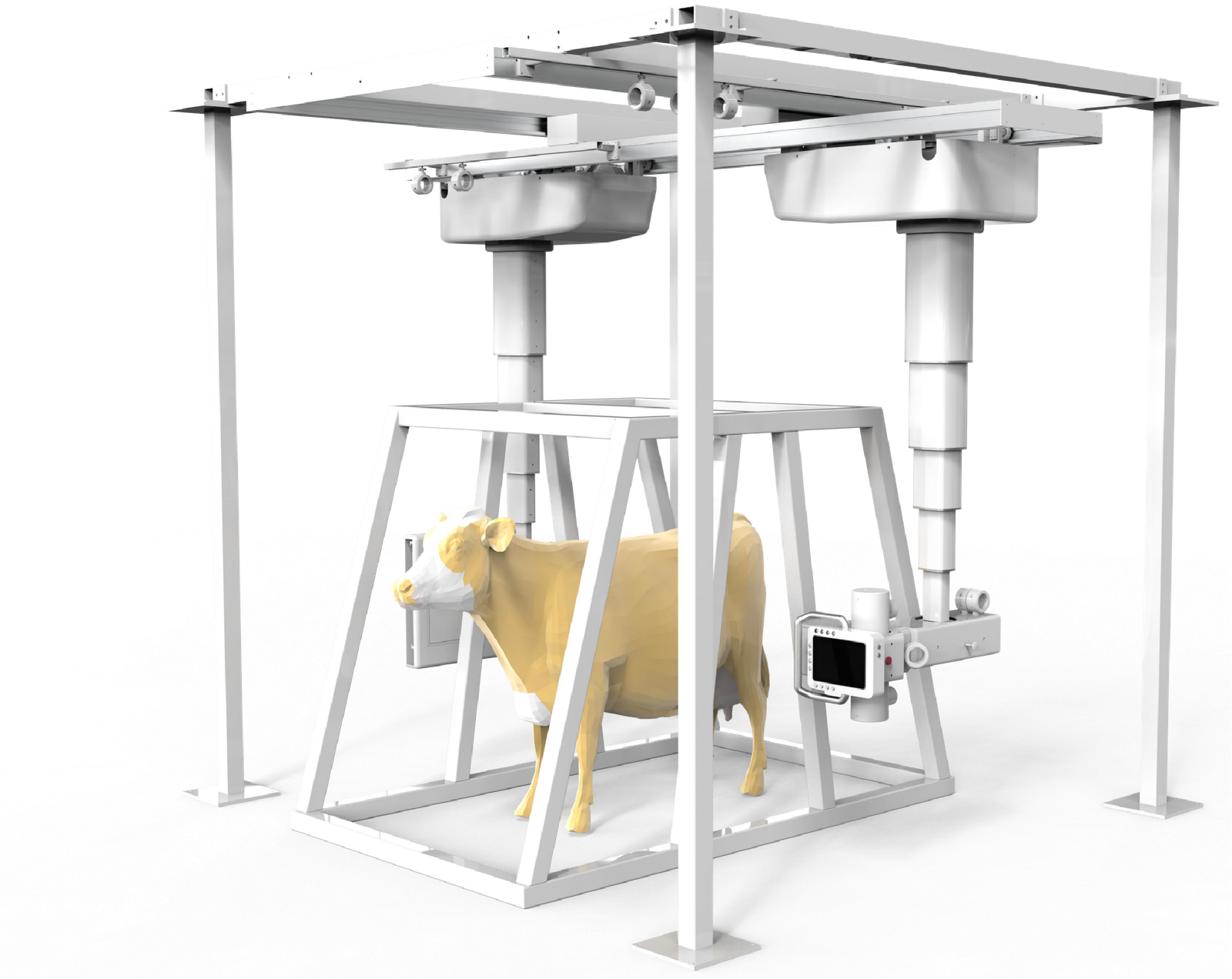

Dual-tower ceiling-mounted DR configuration — two overhead suspended tube heads on rails for above-table bovine and equine imaging.
Product Overview
IWA-DR11 is the dual-tower ceiling-mounted configuration of the iVision-1000X large-animal DR platform. Two suspended tube columns ride on ceiling rails above the patient restraint frame, allowing beam delivery from multiple angles without repositioning the animal. The IWA-FPD1717E detector mounts in a wall-stand bucky or a tableside tray depending on projection.
This configuration suits high-throughput large-animal hospitals and teaching institutions where the ability to image from above or laterally without manual tube repositioning materially shortens the exam time.
Key Features
- Two ceiling-rail tube heads cover any projection geometry without manually rolling the tube column or repositioning the animal.
- Overhead suspension keeps the floor footprint clear for cleaning, hosing, and large-animal handling.
- Same 80 kW IWA-R80 generator, YUANZHI XD57 tube and 17×17″ CsI flat-panel detector as the iVision-1000X DR07 platform.
- Compatible with patient restraint cages or standing chutes for cattle, horses, and large ruminants.
Product Gallery
Power input
| Voltage | 380 V ±38 V |
| Frequency | 50 Hz ±1 Hz |
| Capacity | 135 kVA |
High-voltage generator (IWA-R80)
| Nominal power | 80 kW |
| Working frequency | 300 kHz |
| kV range | 40 – 150 kV |
| mA range | 10 – 1000 mA |
| Exposure time | 1 – 10000 ms |
| mAs range | 0.4 – 1000 mAs |
X-ray tube (YUANZHI XD57)
| Target material | Rhenium-tungsten faced molybdenum |
| Target angle | 12° |
| Operating voltage | 40 – 150 kV |
| Anode input power | 65 kW (large focus) / 28 kW (small focus) |
| Focal spot | 1.0 mm (large) / 0.6 mm (small) |
| Max anode rotation | 3200 rpm |
| Inherent filtration | ≥ 1 mm Al |
Flat-panel detector (IWA-FPD1717E)
| Scintillator | CsI |
| Detector technology | TFT + photodiode (a-Si) |
| Image size | 43 (H) × 43 (V) cm — 17×17″ |
| Pixel matrix | 3072 × 3072 |
| Pixel pitch | 139 µm |
| A/D conversion | 16 bit |
| Spatial resolution | ≥ 3.6 LP/mm |
| Energy range | 40 – 150 kVp |
Workstation
| Software | iVision Imaging System |
| DICOM | Patient registration, worklist retrieval, report writing, cloud platform |
| Image tools | Window level, zoom, rotation, mirror, ROI tools, sequence playback, image enhancement, label, calibration |
Clinical Applications
- Bovine and equine thoracic and abdominal radiography from above
- Standing-cattle reproductive and pelvic imaging
- Equine standing radiography with overhead beam geometry
- High-throughput teaching-hospital bovine/equine imaging
- Large-animal hospital workflow where floor clearance is critical
Workflow & Installation
Three-phase 380 VAC ±38 V supply with 135 kVA capacity is required. The frame layout demands site planning before installation; layout drawings are supplied during site survey. Engineer-led installation, calibration, and training included.
Downloads
Why Choose IWA-DR11
- Workflow efficiency — fixed frame geometry eliminates manual realignment between exposures.
- Clinical accuracy — shares the 80 kW generator and 17×17″ CsI flat-panel detector of the iVision-1000X platform.
- Practice economics — purpose-built frame for the intended workflow, no paying for capabilities you do not need.
Warranty & Support
Two-year warranty including free parts and labour during the warranty period, excluding operator-caused damage and force majeure. Engineer-led installation, calibration, and operator training included. Two complete lead protection sets supplied at no charge.
