IWA-CT01 Vetease 3 Veterinary Cone-Beam CT System

Product Overview

IWA-CT01 Vetease 3 is a smart-series veterinary cone-beam ct scanner manufactured by Rayvision Medical. Designed for veterinary radiology, the system delivers cone-beam computed tomography with the Smart-tier imaging chain.

Patient size: Small-animal (cat, dog, exotic).

Key Features

• Multi-energy spectral correction — eliminates beam-hardening artifacts and enhances tissue contrast
• Smart MAR artifact correction — intelligently suppresses metal artifacts for clearer orthopedic and postoperative imaging
• One-click triple-phase contrast capture — real-time observation with precise targeting for complex cases
• Soft tissue imaging mode with smart dose modulation
• Multi-dimensional dental platform with full-tooth panoramic capability

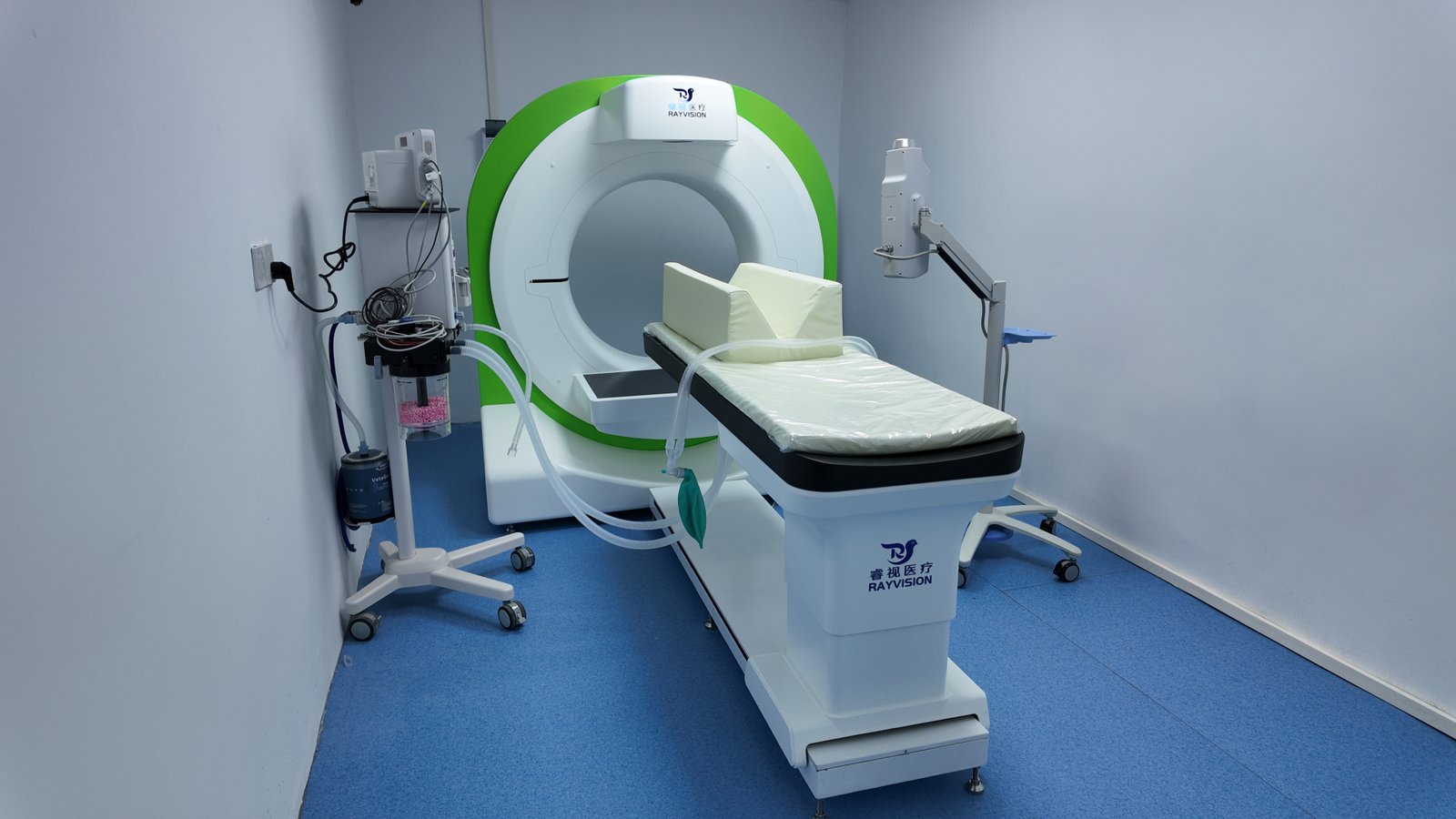

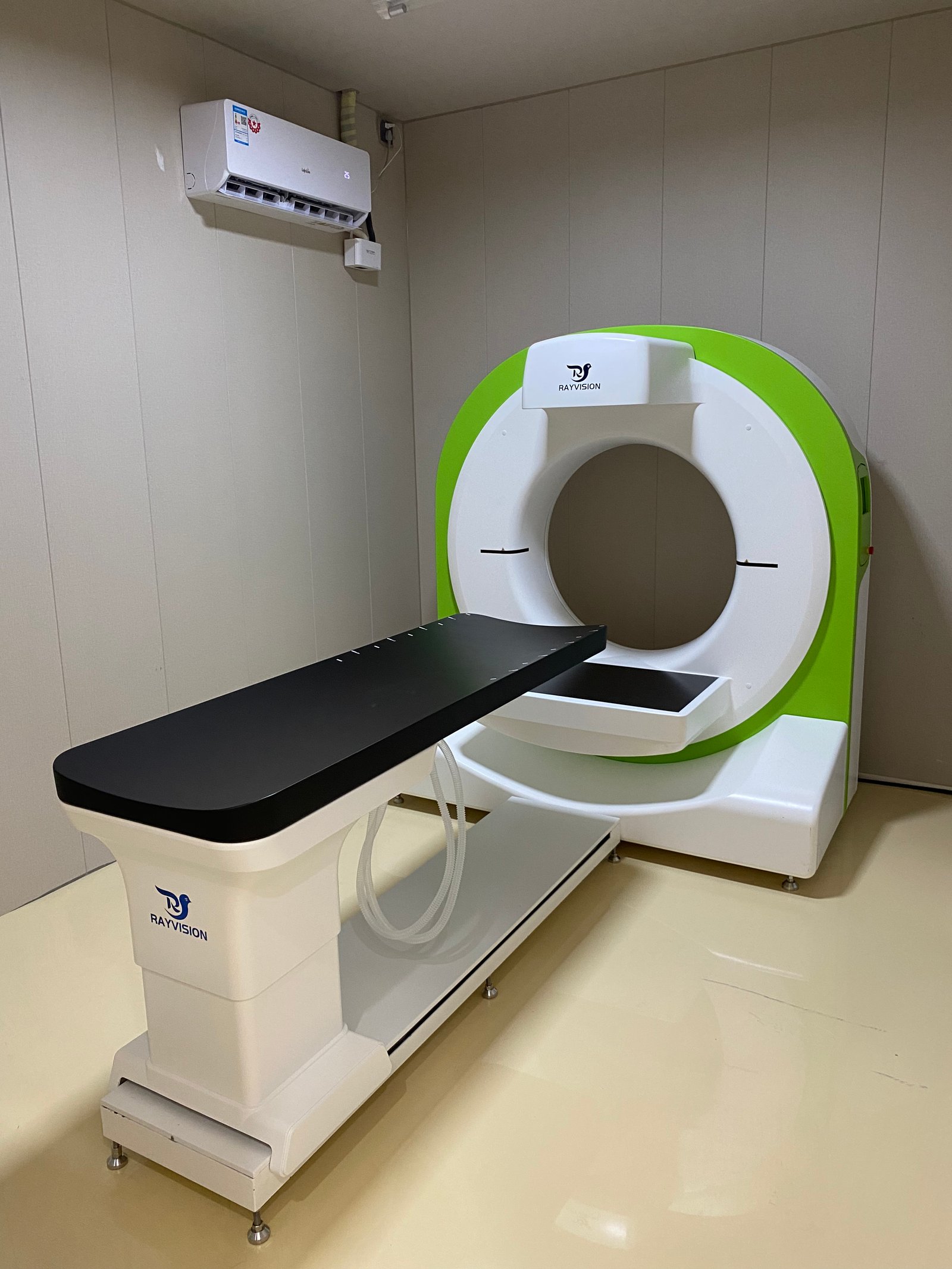

Product Gallery

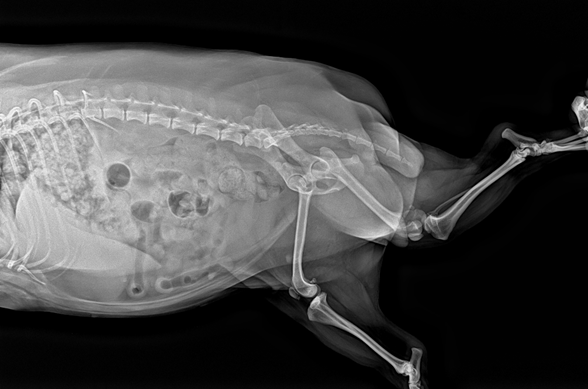

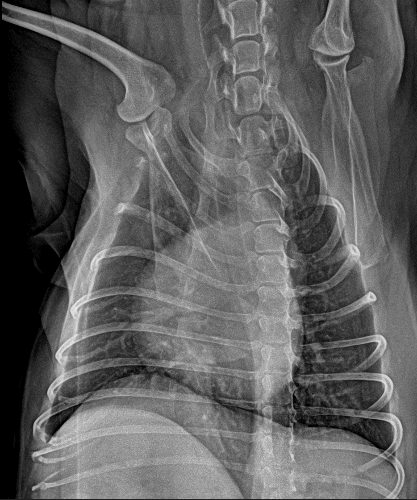

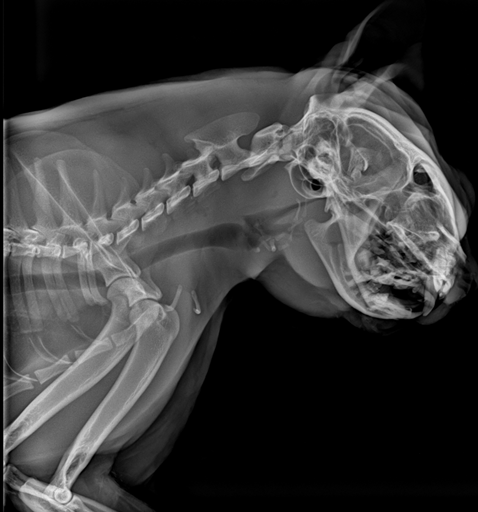

Clinical Imaging Samples

Representative diagnostic images captured on the Vetease 3 platform.

Clinical Applications

• Head & Neck — Cerebral edema, brain hemorrhage, sinusitis, otitis, mastoid effusion, nasopharyngeal stenosis, tracheal narrowing.
• Dental — Periodontitis, periapical abscess, alveolar bone atrophy, oral cyst, tooth root resorption.
• Thoracic — Pulmonary edema, pulmonary nodules, interstitial pneumonia, pulmonary inflammation.
• Abdomen — Abdominal wall inflammation, peritoneal fluid accumulation, urography, renal imaging, gallstones, pancreatitis, kidney hardening.
• Vascular — Abdominal three-phase angiography, peripheral artery thrombosis, vascular stenosis.
• Spine — Spinal canal imaging, spinal protrusion, vertebral imaging, spondylosis, thoracic spine fracture.
• Tumors — Thyroid, nasal, ovarian, renal, adrenal tumors with characterisation and staging.
• Other — Arthritis, thoracic duct imaging, peritoneal calcification.

Installation Requirements

The system requires a dedicated radiography room with the following utilities and environment:

Site survey is required before installation; Rayvision / IWA-supplied installation engineers handle commissioning, calibration, and operator training.

Demonstration Video

Package Contents

• 1 × Rayvision Vetease 3 CT gantry assembly
• 1 × Patient table with motorised positioning
• 1 × Imaging console / acquisition workstation
• 1 × Reconstruction workstation with Smart-tier toolkit
• 1 × DICOM 3.0 software suite (Store / Print / Worklist / MWL)
• 1 × Operator training and on-site commissioning
• 1 × Lead protection set (PPE for operator)

Downloads

Why Choose IWA-CT01

• Workflow efficiency — purpose-built veterinary CBCT with one-click protocols and AI-assisted post-processing.
• Clinical accuracy — Smart-tier reconstruction chain delivers diagnostic-grade imaging for complex cases.
• Manufacturer reliability — Rayvision Medical is a focused veterinary CT OEM with documented installations across China.

Warranty & Support

Manufacturer warranty per supply agreement (typically 12 months on the gantry, extended-warranty packages available). Rayvision and IWA Medical provide on-site engineer support, remote diagnostic services, and spare-parts service in supported regions.

FAQ

Q: What patient size is IWA-CT01 designed for?
Small-animal (cat, dog, exotic).

Q: Is it a true CT or a cone-beam CT (CBCT)?
This is a veterinary cone-beam CT system — purpose-built for veterinary workflow with reconstruction tools optimised for animal anatomy.

Q: Does it integrate with existing PACS?
Yes. The workstation supports DICOM 3.0 Store / Print / Worklist / MWL and integrates with standard veterinary or human PACS gateways.

Q: What are the site preparation requirements?
A dedicated radiography room with 3 mm lead-equivalent shielding, three-phase 220 VAC ±22 V, ≥ 15 kVA capacity, controlled temperature (10 – 35 °C) and humidity (30 – 75 % RH). See Installation Requirements above.

Q: How long does installation take?
Typical engineer-led installation is 5 – 10 working days from delivery to operator handover, depending on room readiness.
