Dental X-ray iDen-X1

Product Overview

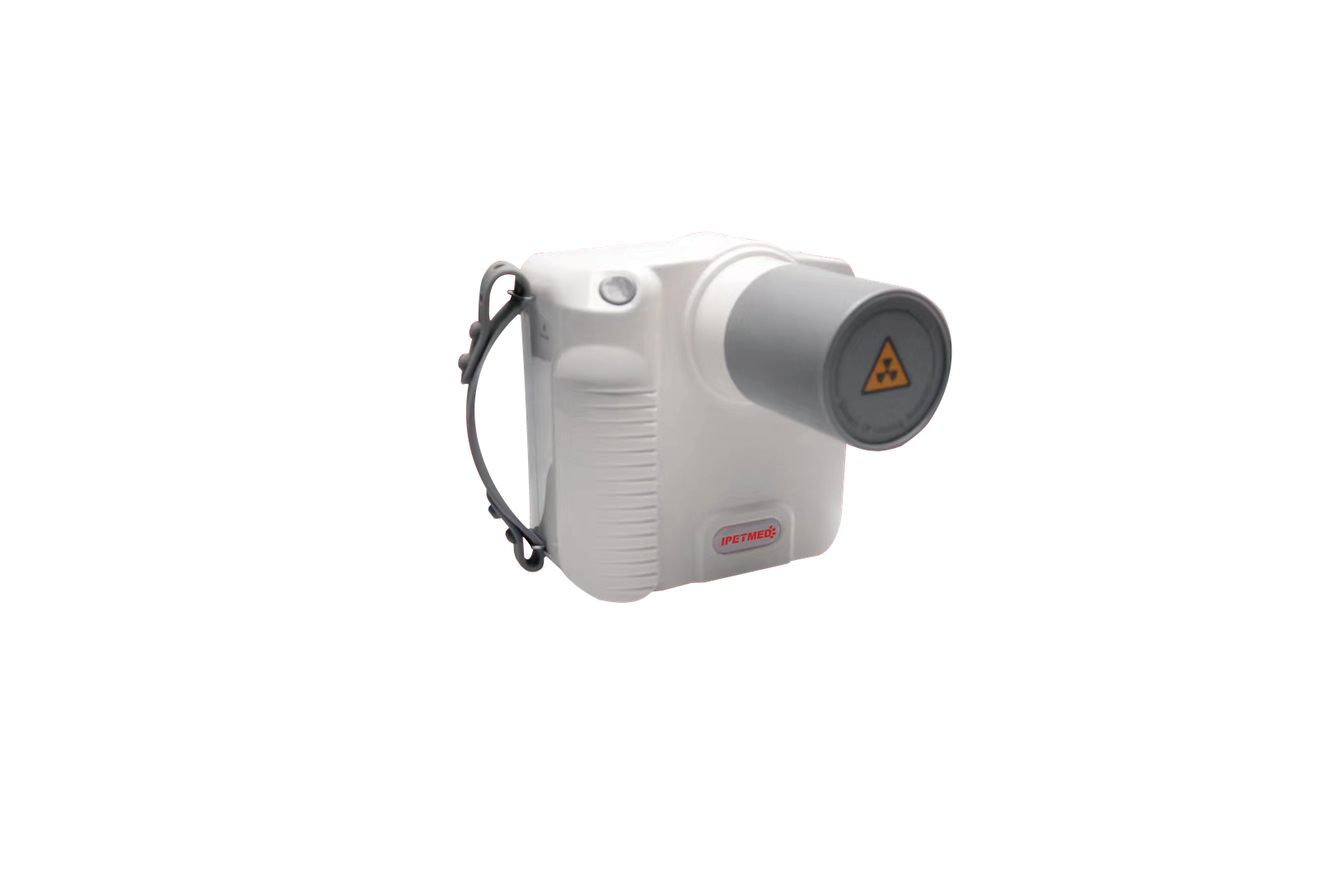

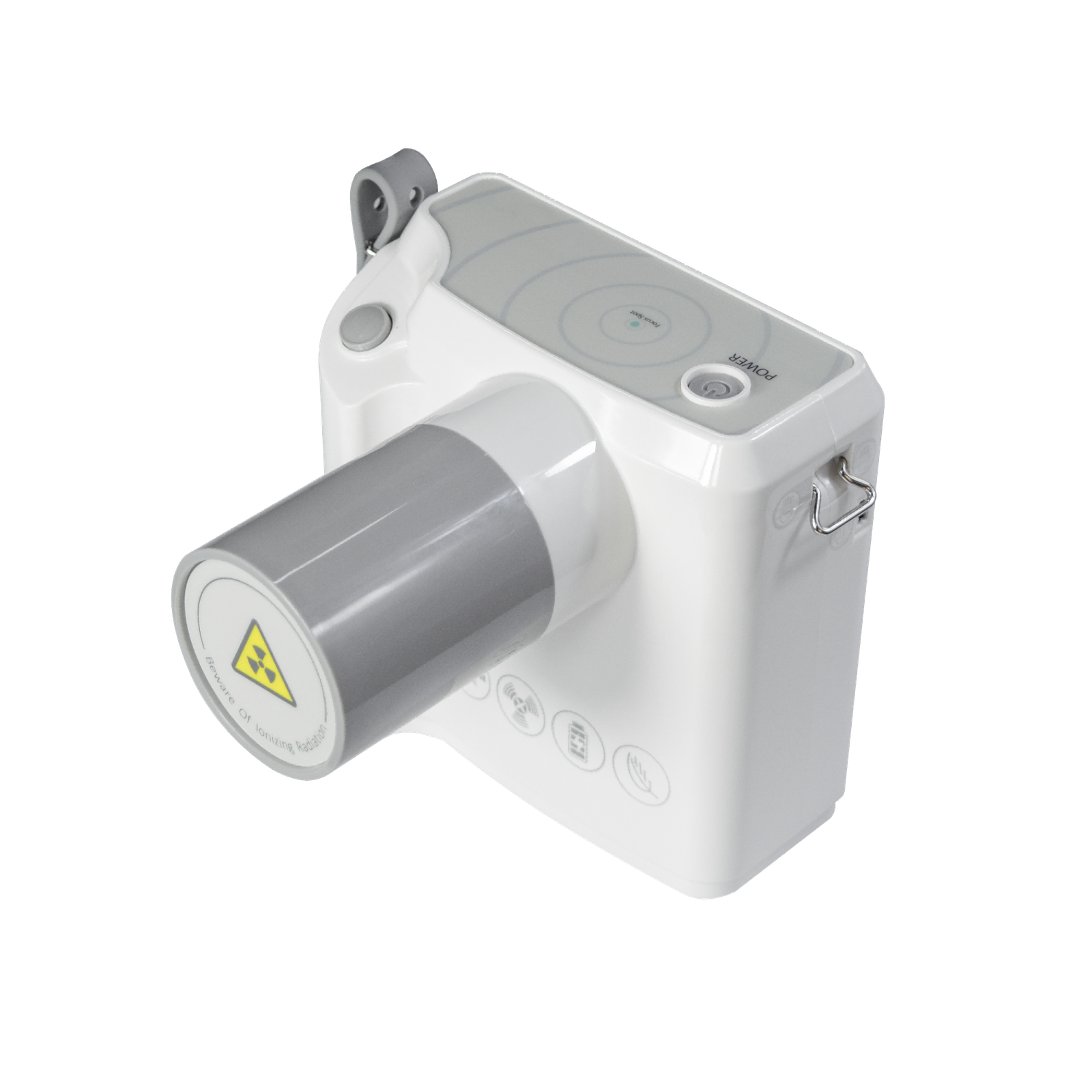

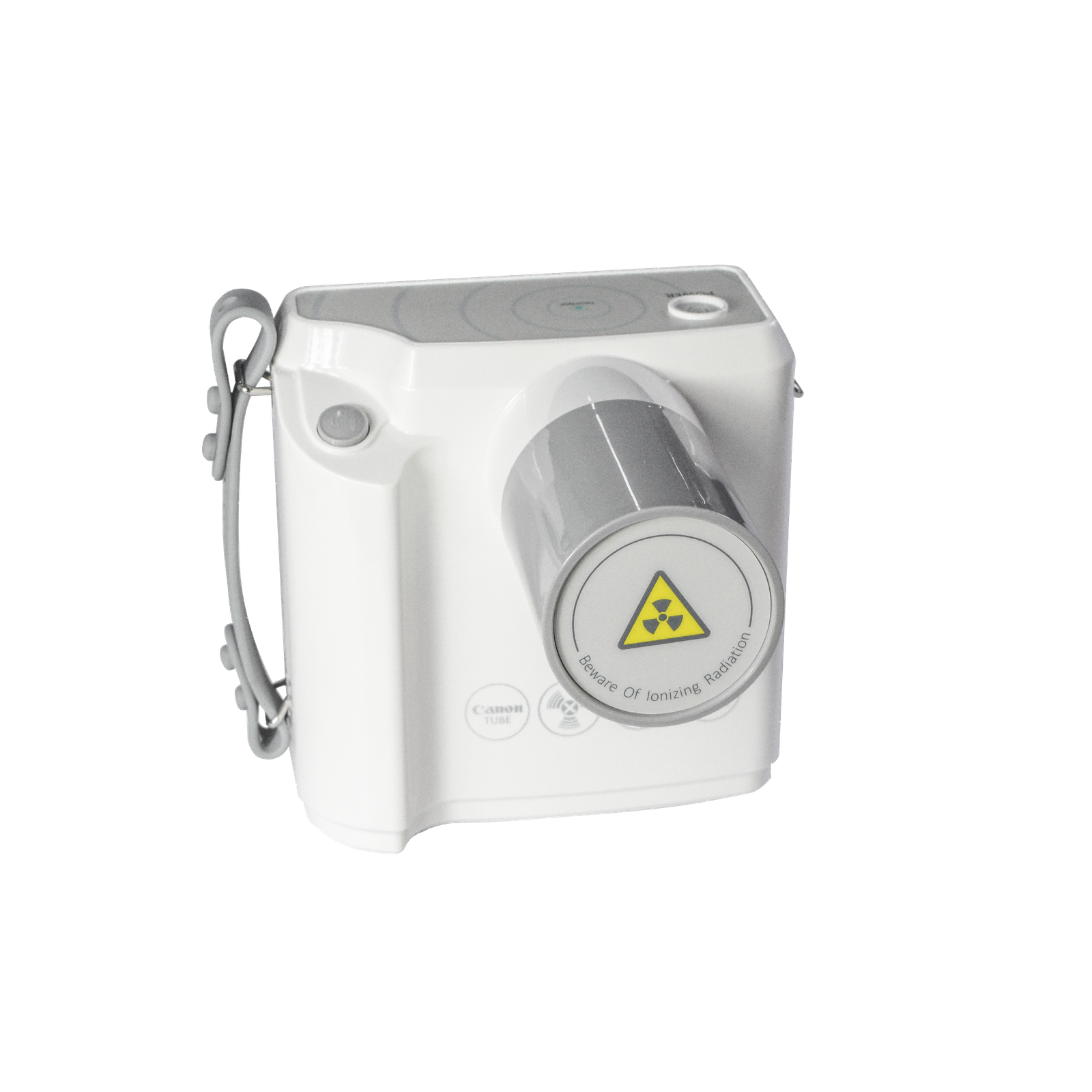

IDEN-X1 is a portable handheld veterinary dental x-ray unit — 70 kv / 2 ma tungsten tube with 0.4 mm focal spot, microprocessor-controlled lcd panel, four-button operation, 1.9 kg, ce class iia (tüv süd nb# 0123). Suited for veterinary intraoral dental radiography (canine / feline / exotic small mammals), chairside dental exam in mixed-practice and dedicated dental clinics.

Key Features

• 70 kV / 2 mA tungsten X-ray tube (model KL11) with 0.4 mm focal spot — sharp geometric resolution for fine intraoral detail.
• LCD control panel + 4-button operation — Mode / Teeth / Up / Down keys for patient-size and tooth-position presets.
• Adult / paediatric size presets with tooth-position selection — workflow-tuned exposure times for each anatomy.
• Adjustable exposure time 0.04 – 2.0 s via R*10 coefficient choice for precise dose control.
• 1.9 kg total weight (tube head 1.1 kg) — single-hand handheld operation reduces operator fatigue.
• 20.5 ± 0.5 cm focus-skin distance, round Ø 6 ± 0.5 cm radiation field for tight intraoral targeting.
• 1.5 mm Al total filtration (1.0 mm inherent + 0.5 mm additional) at 70 kV with ≥1.6 mm Al half-value layer.
• Low leakage radiation — 0.25 mGy/h at 1 m position (70 kV, 2 mA, 1 s, 1 s/30 s loading interval).
• Internal 10.8 V / 2500 mAh Li-ion battery (18650 × 3S) with 100 – 240 V universal charger.
• Optional 3 m spring cable handheld switch — supports remote-exposure workflow when wall-mount installation is preferred.
• CE Class IIa certified — Certificate G1 074840 0012 Rev.01 issued by TÜV SÜD Product Service GmbH (NB# 0123).

Product Gallery

Technical Specifications

Clinical Applications

• Veterinary intraoral dental radiography (canine / feline / exotic small mammals)
• Chairside dental exam in mixed-practice and dedicated dental clinics
• Mobile / ambulatory veterinary dental services and field visits

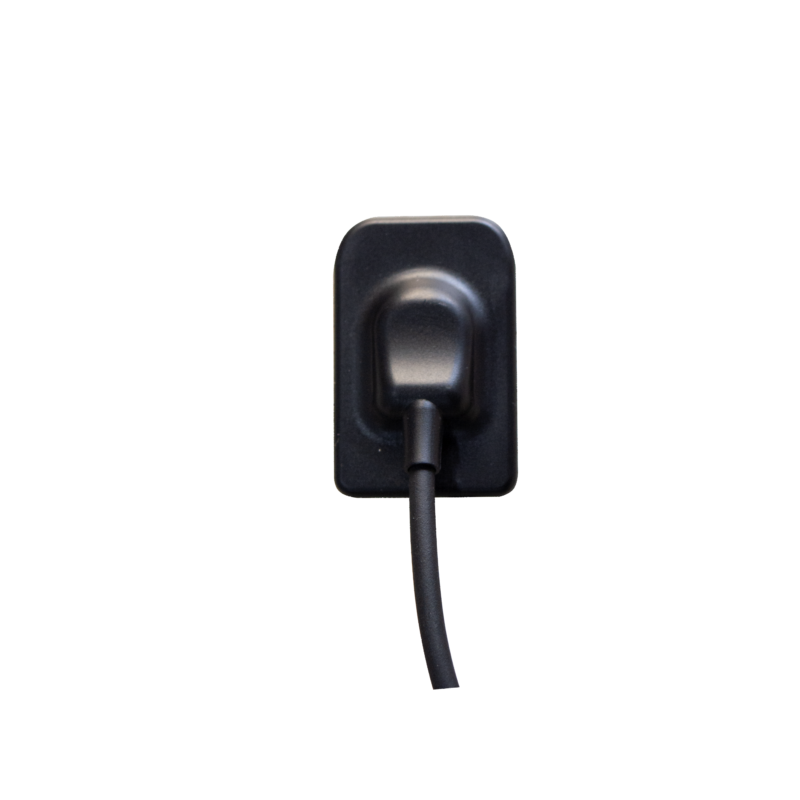

• Use with intraoral DR sensors (e.g. IDEN-DR01) or PSP image plate + CR scanner (e.g. IDEN-CR01) workflows

Workflow

Switch on the unit via the standby button on top — the LCD displays current patient-size icon (adult / paediatric), tooth-position indicator, kV / mA, and exposure time. Use Mode / Teeth / Up / Down keys to recall the appropriate preset. Position the unit at the 20.5 cm focus-skin distance, align the Ø 6 cm round radiation field with the target tooth, and press the exposure button — the 70 kV / 2 mA tube fires a controlled 0.04 – 2.0 s burst. Recharge between cases with the universal 100 – 240 V / 19 V DC adapter; internal Li-ion battery is hot-swappable when needed.

Package Contents

• 1 × IDEN-X1 portable dental X-ray unit
• 1 × Power adapter (100 – 240 V / 19 V DC, 3.43 A)
• 1 × Power cord
• 1 × Beam-limiting device (2 m line length)
• 1 × Handheld exposure device with 3 m spring cable (optional, /unshielded)
• 1 × Internal Li-ion battery pack (18650 × 3S, 10.8 V / 2500 mAh)
• 1 × User manual
• 1 × CE certificate copy
• 1 × Quality certificate

Downloads

Why Choose IDEN-X1

• Workflow efficiency — 1.9 kg single-hand handheld operation with LCD presets eliminates manual exposure-table lookup.
• Clinical accuracy — 0.4 mm focal spot at 70 kV / 2 mA delivers sharp intraoral detail; total 1.5 mm Al filtration and ≥1.6 mm Al half-value layer meet IEC dose-quality standards.
• Regulatory readiness — CE Class IIa under TÜV SÜD NB# 0123 (Certificate G1 074840 0012 Rev.01); EMC-compliant to IEC 60601-1-2: 2014.

Warranty & Support

Manufacturer warranty per supply agreement. Spare parts and authorised in-region service available through IWA Medical / LumaVet.
