Ultra-high-resolution 17×17″ wireless / wired flat-panel detector — 99 µm pixel pitch, 5 LP/mm, 18.5 MP CsI a-Si sensor with 802.11ac up to 1.3 Gbps.
Product Overview
IWA-FP06 4343ZF is a ultra-high-resolution 17×17 inch static flat-panel detector manufactured by Shanghai PZMedical Technology. The detector is built around an amorphous-silicon (a-Si) TFT array with a CsI scintillator and delivers a 4302 × 4302 pixel matrix at 99 µm pitch with 5.0 LP/mm spatial resolution.
This detector is suited for: Premium diagnostic imaging where maximum detail is required, advanced equine and large-animal radiography, research and teaching applications.
Key Features
- 17×17″ active imaging area (42.6 × 42.6 cm) with 4302 × 4302 pixel matrix at 99 µm pitch.
- 5.0 LP/mm spatial resolution with a-Si TFT photodiode + CsI scintillator for high DQE.
- 16-bit A/D conversion with 14 nGy minimum detectable dose and 110 µGy maximum linear dose (RQA5).
- AED / Prep / Software trigger modes — connects to and synchronises with any X-ray generator.
- Dual-mode connectivity: GigE Ethernet and 802.11ac Wi-Fi for wireless field workflows.
- 14 h battery standby time on the wireless configuration; auto-resume on reconnect.
- IP56 ingress protection with carbon-fibre front cover for clinical disinfection workflow.
- Image acquisition: 1 s wired / 2–3 s wireless.

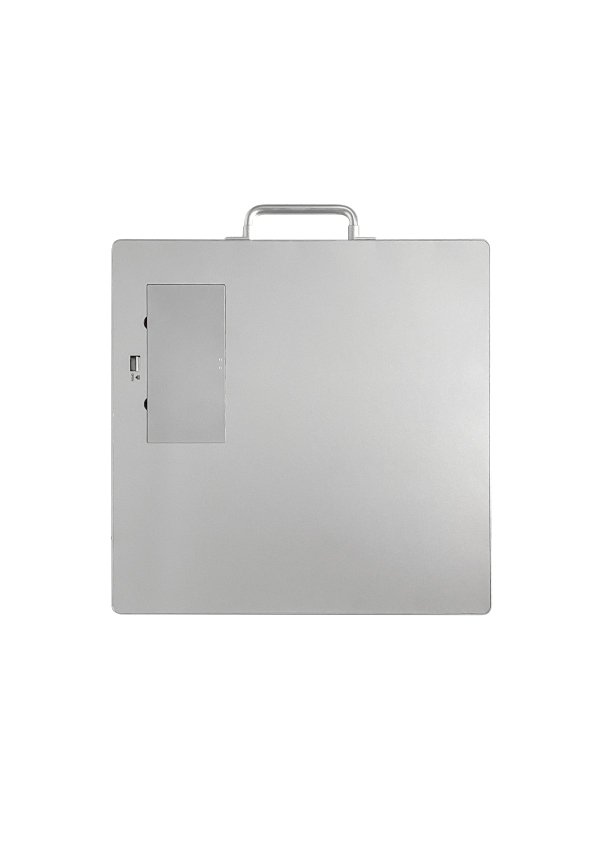

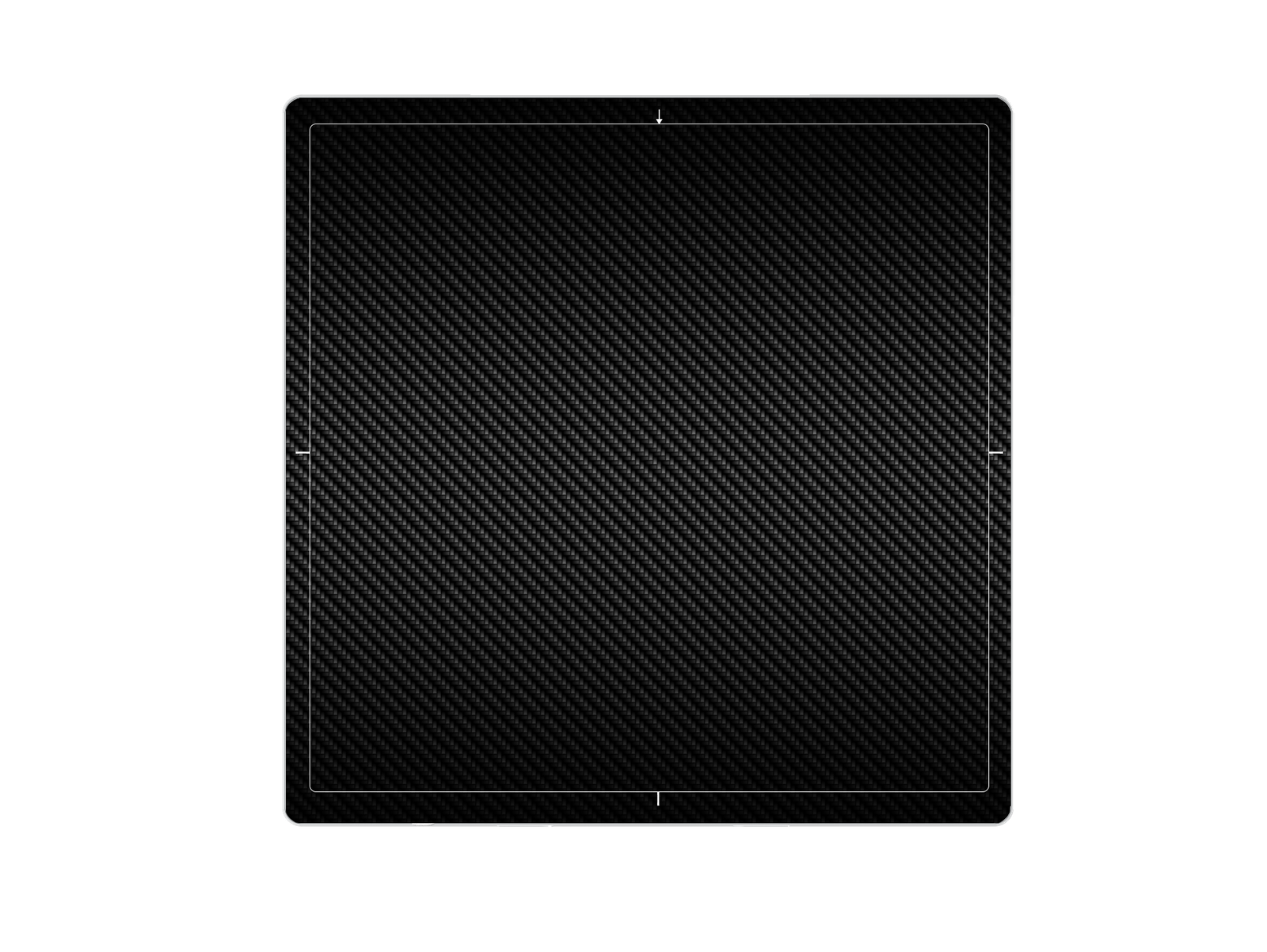

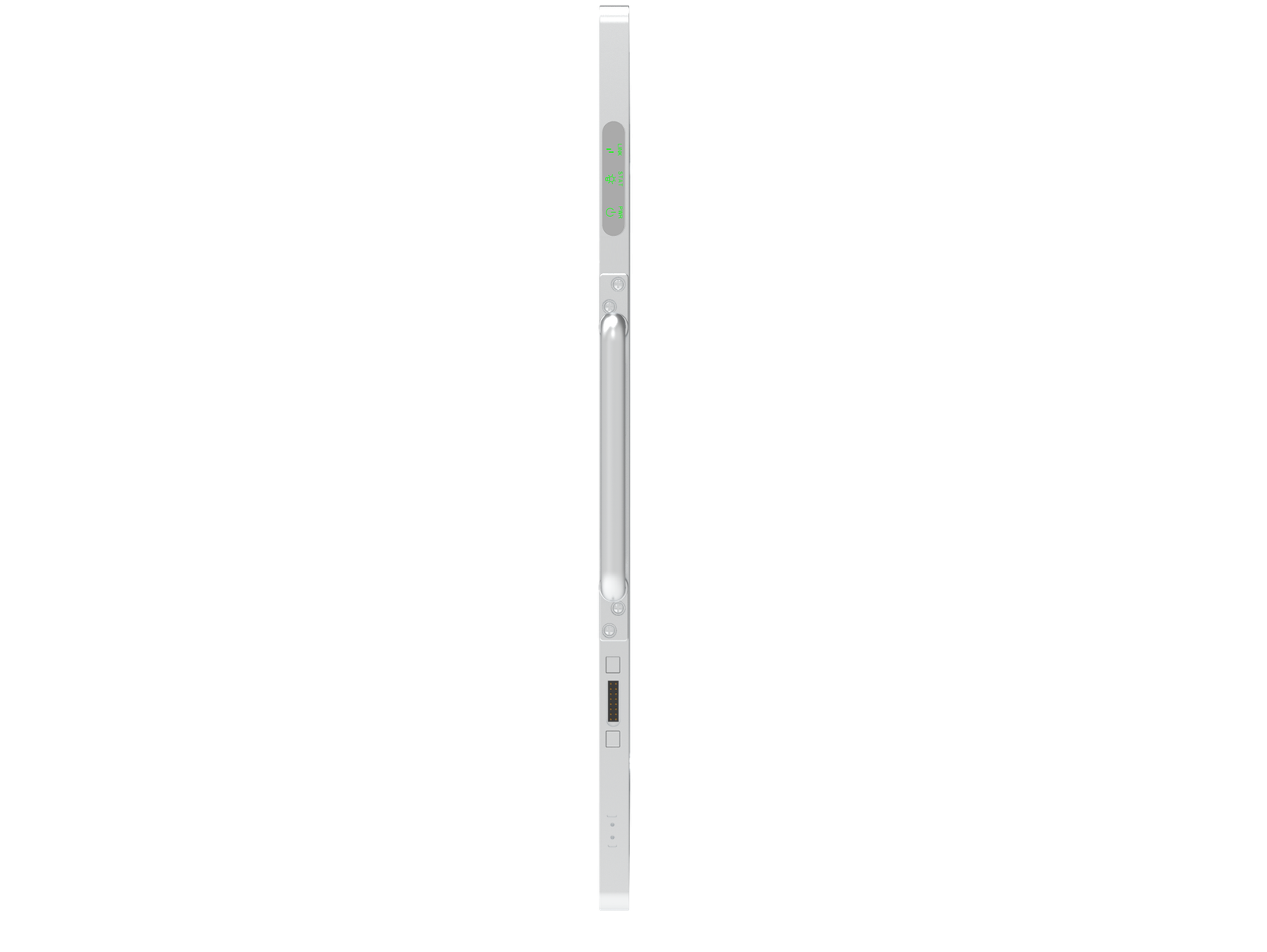

Product Gallery
Technical Specifications
| Model | PZMedical 4343ZF |
| Detector technology | Amorphous silicon (a-Si) TFT |
| Scintillator | CsI |
| Active imaging area | 42.6 × 42.6 cm (17×17″) |
| Pixel matrix | 4302 × 4302 |
| Pixel pitch | 99 µm |
| Spatial resolution | 5.0 LP/mm |
| A/D conversion | 16 bit |
| Minimum detectable dose (RQA5) | 14 nGy |
| Maximum linear dose (RQA5) | 110 µGy |
| X-ray voltage range | 40 – 150 kV |
| Image acquisition time | 1 s wired / 2–3 s wireless |
| Trigger modes | AED / Prep / Software |
| Data interface | GigE / 802.11ac Wi-Fi |
| Battery standby | 14 h (wireless) |
| Dimensions | 460 × 460 × 15 mm |
| Weight | 3.7 kg |
| Ingress protection | IP56 |
| Operating temperature | 5 – 35 °C |
| Operating humidity | 10 – 75 % RH (non-condensing) |
| Adapter input | AC 100 – 240 V, 50/60 Hz |
| Adapter output | DC 24 V, 60 W |
Regulatory & Certifications
- EU MDR Class IIa — TÜV SÜD Quality Management System Certificate (No. G10 096173 0006), valid 2024-03-14 to 2029-03-13.
- FDA 510(k) clearance — US regulatory clearance for the PZMedical FP series.
- Manufacturer: Shanghai PZMedical Technology Co., Ltd., 5F BLDG13 No.2 Suide Road, Putuo District, Shanghai 200331, China.
Clinical Applications
- Veterinary general radiography (thoracic, abdominal, skeletal)
- Equine, bovine, and large-animal imaging (size-dependent — see model selection)
- Mixed-practice and small-animal clinics retrofitting CR or DR systems
- Mobile / ambulatory DR workflow when wireless configuration is selected
- Surgical, dental, and exotic-mammal imaging in compatible configurations
Workflow & Installation
The detector connects to a host PC through GigE Ethernet (wired) or 802.11ac Wi-Fi (wireless). PZMedical supplies the ZManager configuration utility for first-run setup, defect-template generation, and routine calibration. Calibration is required every 3 – 6 months or when X-ray generator / tube / collimator components are replaced. Cleaning: wipe with a non-abrasive surface disinfectant; do not immerse. Avoid placing the detector within 1 m of high-voltage generators or other electrical interference sources.
Package Contents
- 1 × PZMedical 4343ZF flat-panel detector
- 1 × Detector cable (wired configuration)
- 1 × Power adapter (AC 100 – 240 V → DC 24 V, 60 W)
- 1 × Internal battery (wireless configuration, ~14 h standby)
- 1 × Control box (CB01 REQ/OK mode or CB02 PREP/RAD mode with hand switch — specify at order)
- 1 × ZManager configuration software
- 1 × User manual
- 1 × CE / FDA certificate documentation
Downloads
Why Choose IWA-FP06
- Workflow efficiency — wireless 802.11ac and 14 h battery support full-day mobile DR work without recharging.
- Clinical accuracy — 5.0 LP/mm spatial resolution and 16-bit A/D with CsI scintillator deliver diagnostic-grade image quality.
- Regulatory confidence — EU MDR Class IIa CE and FDA 510(k) clearance support distribution in regulated markets.
Warranty & Support
Manufacturer warranty per supply agreement (commonly 12 – 24 months on detector hardware, excluding operator-caused damage). Spare-battery service and authorised in-region repair available through IWA Medical / LumaVet.
FAQ
Q: Is IWA-FP06 a static or dynamic detector?
Static. The 4343ZF is designed for single-frame radiographic exposures (not fluoroscopy or dynamic imaging).
Q: What X-ray generators is it compatible with?
Any conventional X-ray generator. The detector supports AED (Auto Exposure Detection) for use without hard-wired sync, plus Prep/Software trigger modes with CB01 / CB02 control box for wired sync.
Q: How long does the battery last?
Approximately 14 hours of standby per charge. Recharging takes ~3.5 hours via the supplied adapter.
Q: Is the detector calibrated at delivery?
Yes — each unit ships with factory calibration. Routine recalibration is recommended every 3 – 6 months, or when X-ray generator / tube / collimator components are replaced.
Q: Does it support DICOM?
The ZManager utility outputs raw and processed images; DICOM 3.0 integration is provided by the host DR acquisition software bundled with iVision / iVet / iPet workstations or by your existing PACS gateway.
